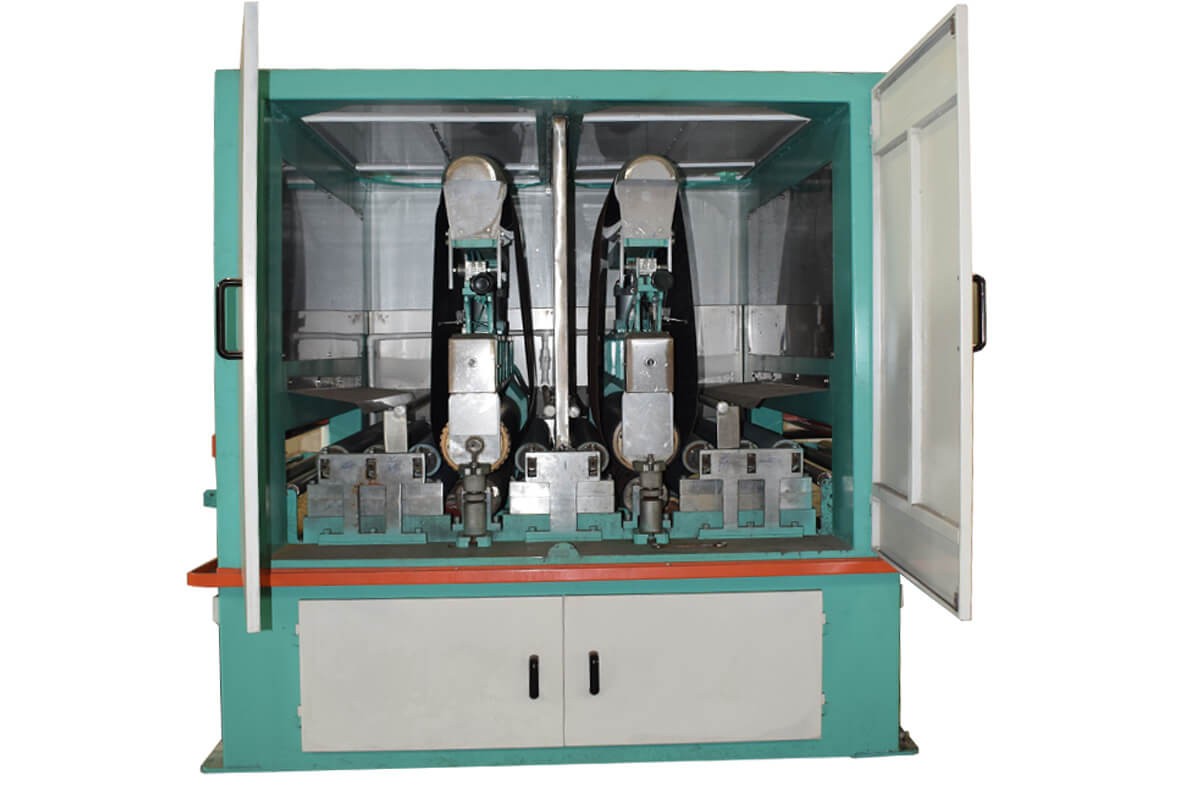

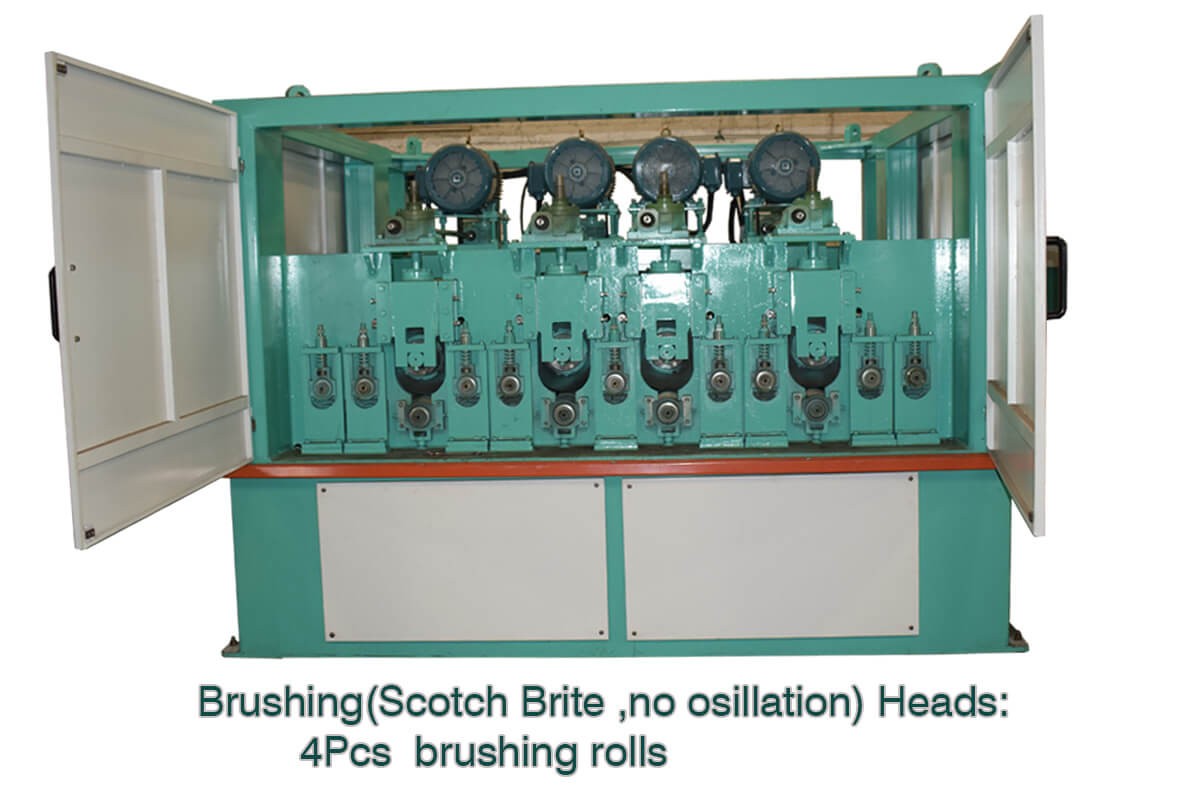

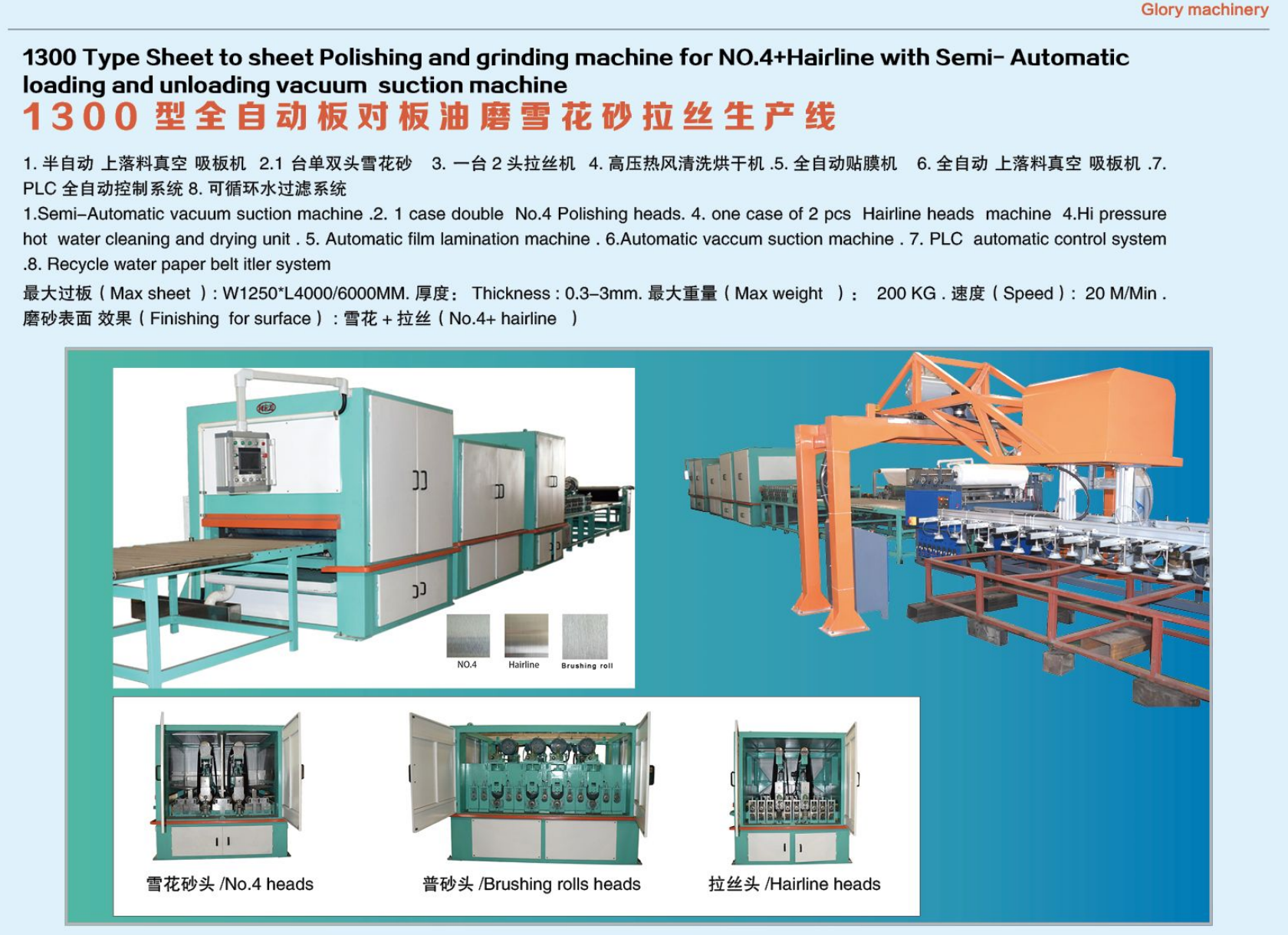

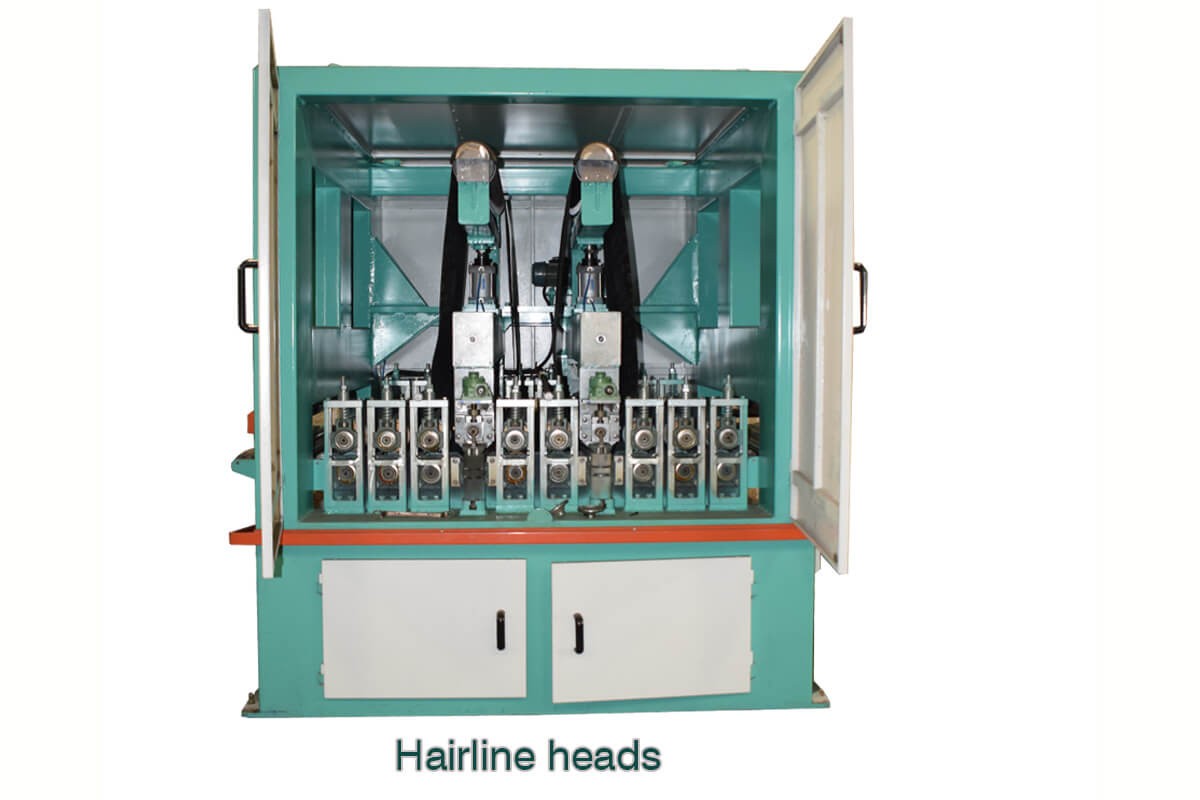

A.Equipment consisting :1..Rack for feeding /2.1 case for 2 pcs* No.4 Polishing heads; /3. one case of brushing finishing head ( 43 brushing rolls) 4. 1 case of Hairline heads ( each case has 2 heads).5.Clean and drying Unit/6. Laminating machine /7. Platform for inspection / 8.Automatic -Vaccume Lifte for exit (Optional) /9.Paper filter Filter System.10.Mavable Electronic Controller table+Electric cabinet B.Staniless steel raw material : Max sheet : 1250*4000/6000 mm, thickness : 0.3-3 mm.
(With Automatic -Vaccume unloading device .)

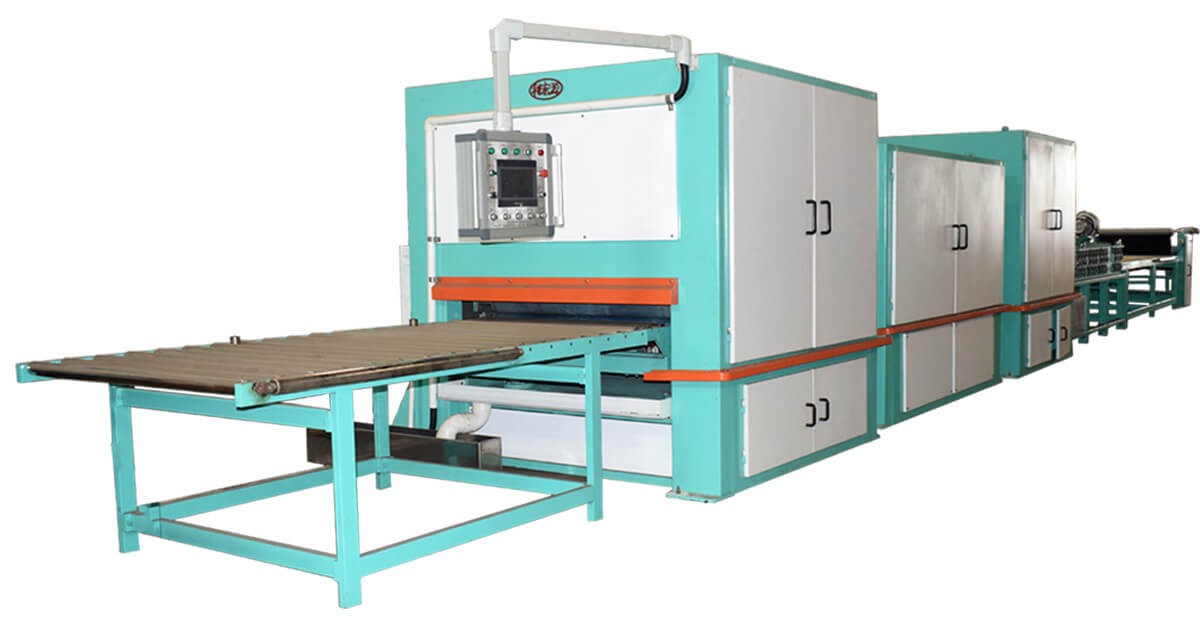

(Manual unloading sheet )
Basic specification for Polishing machine
| Polishing name | No.4 | Brushing roll | Hairline |
| Speed of Abrasive belt | 2000-3000 r/Min | 0.35m/min | |
| No. of polishing heads/roll | 3 grinding heads | 4 pcs brushing roll | 2 grinding heads |
| Power | 37KW*2+3KW transfer motor | 7.5*4 KW*4 KW transfer motor | 0.55 KW*2 Transfer Drive Motor |
| Abrasive belt length | perimeter 2620*1280 mm | Dia:300 mm | perimeter 2620*1280 mm |
| Maximum widht of material | 1250 mm | 1250 mm | |
| Thickness for stainless steel | 0.3-3 mm( Standard) | ||
| Feeding speed | 0-25 M/min | ||
| Processing type | oil wet type | ||
| Cleaning and drying | controlling hot water clean and fan drying | ||
| Filter system | use paper belt filte ,so the water can be recyled | ||
Technical Parameter
1.Raw material:
a.Stainless steel sheet : 430,439,445,304,316,200 series
b.Sheet surface:2B and BA surface
c.Sheet width: 200-1250 mm. max sheet: 1250*4000mm/6000mm
d.thickness of sheet:0.3-3mm.
2.Finished product parameters:
Surface of stainless steel sheet:NO.4 ,Hairline, Brushing finishing. No.4+hairline, No.4+brushing finishing, hairline +brushing finishing. (dependiing grit of abrasive belt 120#/150#/180#/220#/320# grit)
3.Equipment parameters:
a.Speed:0-25M/min b.Power: About 150KW C.Operator: 1 technician and 2-3 workers.d.Height of working: 1000 mm. e.Space: W20*D6 M. f.Voltage:380V/ 3phrase/50 HZ(depend on customer requirment). g.Grinding Type:Wet oil type .h.PLC/HMI:Siemens
4.Equipment component
1..Rack for feeding /2.1 case for 2 pcs* No.4 Polishing heads; /3. one case of brushing finishing head ( 43 brushing rolls) 4. 1 case of Hairline heads ( each case has 2 heads).5.Clean and drying Unit/6. Laminating machine /7. Platform for inspection / 8.Automatic -Vaccume Lifte for exit (Optional) /9.Paper filter Filter System.10.Mavable Electronic Controller table+Electric cabinet
Direction:From to (The operator faces the machine , feeding coil from)
Q1: What kind of machine do you have ?
A1: We three type different machine line and accept customize
a. coil to coil wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface
b. Sheet to sheet wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface
c. Hi precision slitting line for cold roll for different width .
d. Cut to length (Stop shear and frying shear ) for cold roll
e. The strip edge trimming machine for deburring +Chamfering +round edge for different steel strip(from 5mm-300 mm)
Q2: How to visit your company?
Our company located in Foshan city ,Guangdong province of China , we can pick you up from Guangzhou Baiyun international airport or any other place in Guangdong province .
Q3:How long will you send the proposal and offer?
A3:We need you provide your material data and your requirement for machine,then we can give you offer within 2-3 days.
Q4: What is your payment term and lead time?
A4: We usually accept 30% deposit ( the strip edge trimming machine line need 50%), the balance must be paid before shippment ,or 70% is irrevocable LC at sight ; the lead time : we generally need about 90 days after getting deposit .
Q5: How to install the machine and the engineer fee,and warranty?
A5: We will send one or two engineer to install the machine in customer plant,the customer need bear the visa fee/flight ticket/accommodation during installation ,and give 80 usd subsidy to engineer; installation and training time : it usually need about 10-25 days with the cooperation from customer ,depend on the size of machine .
