Four Modulars High-end Steel Strip edge trimming line with Optical width monitoring

<>

Basic specification for  Strip edge trimming  machine

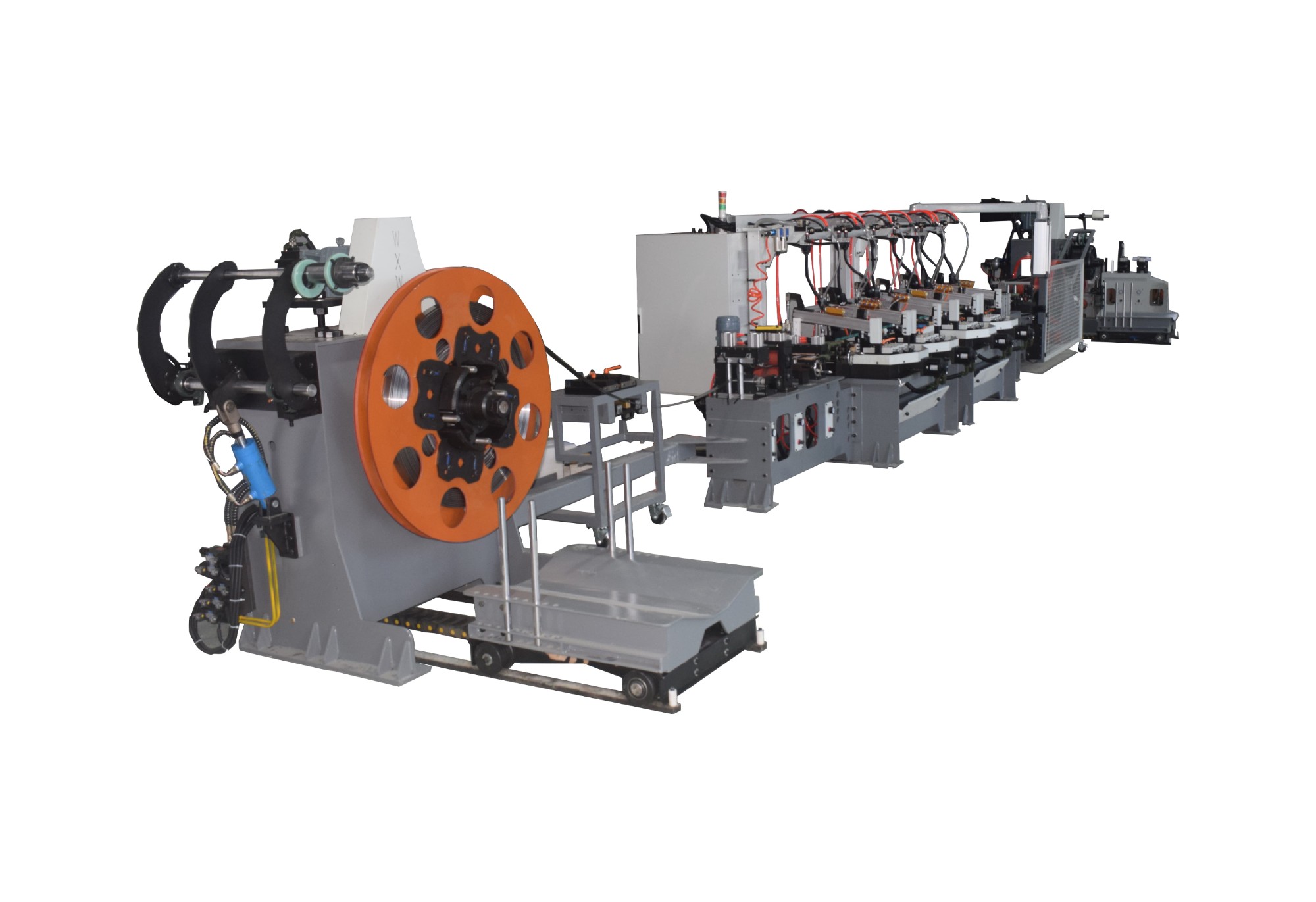

Coil  four groups of automatic modular Strip edge trimming line with  Optical width monitoring

Technical Parameter

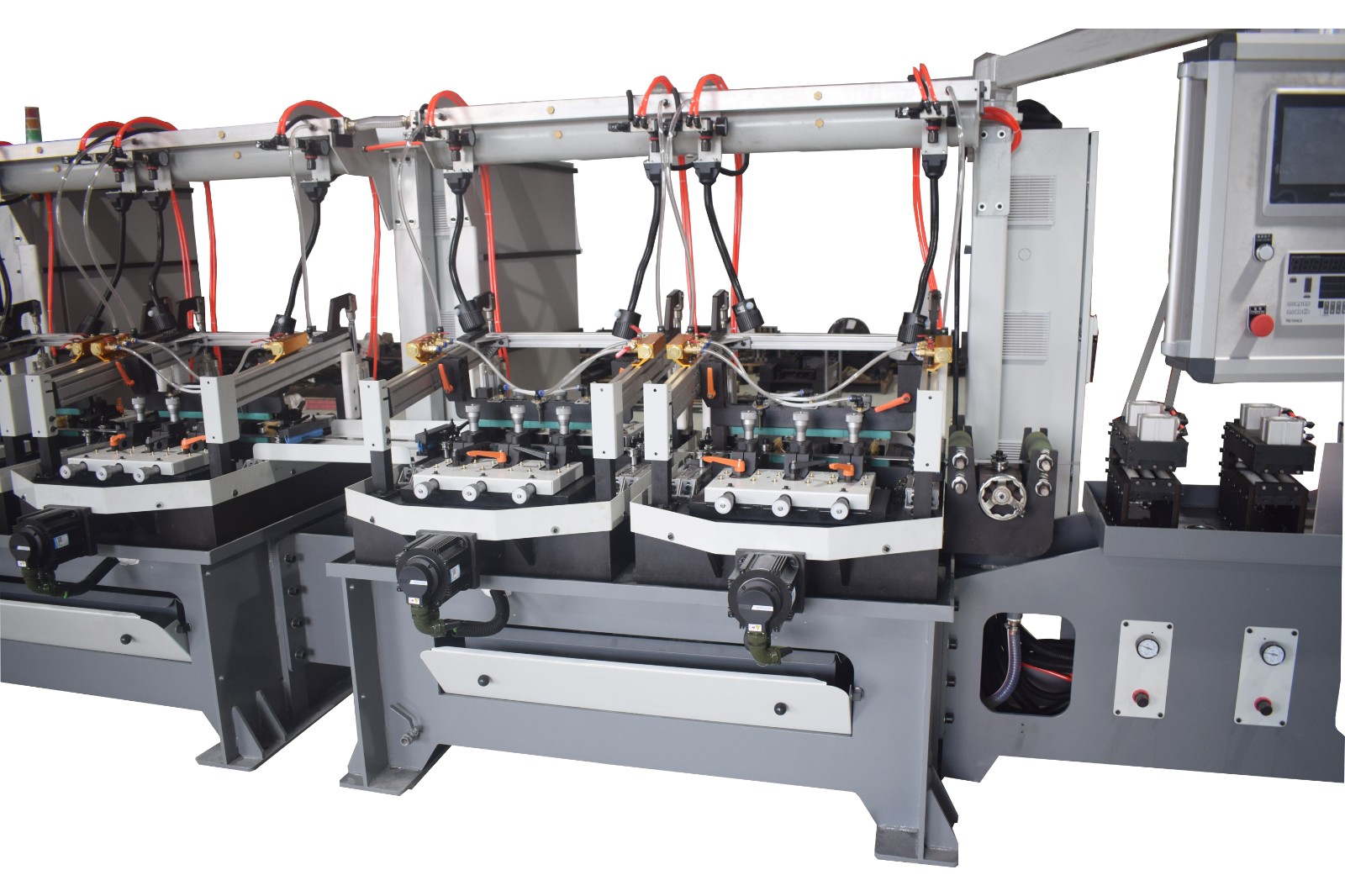

1.Raw material:

a. material: cold rolled strip,carbon steel strip  ,Stainless steel strip  and so on

b. edge : just be slited from slittng line  .

c.Coil  Data: ID:400-500 MM, OD:≤φ1200mm. width:10-180 mm. max coil weight:500kg-1000KG

d.thickness of sheet:0.2-2.0 mm.

2.Finished product parameters:

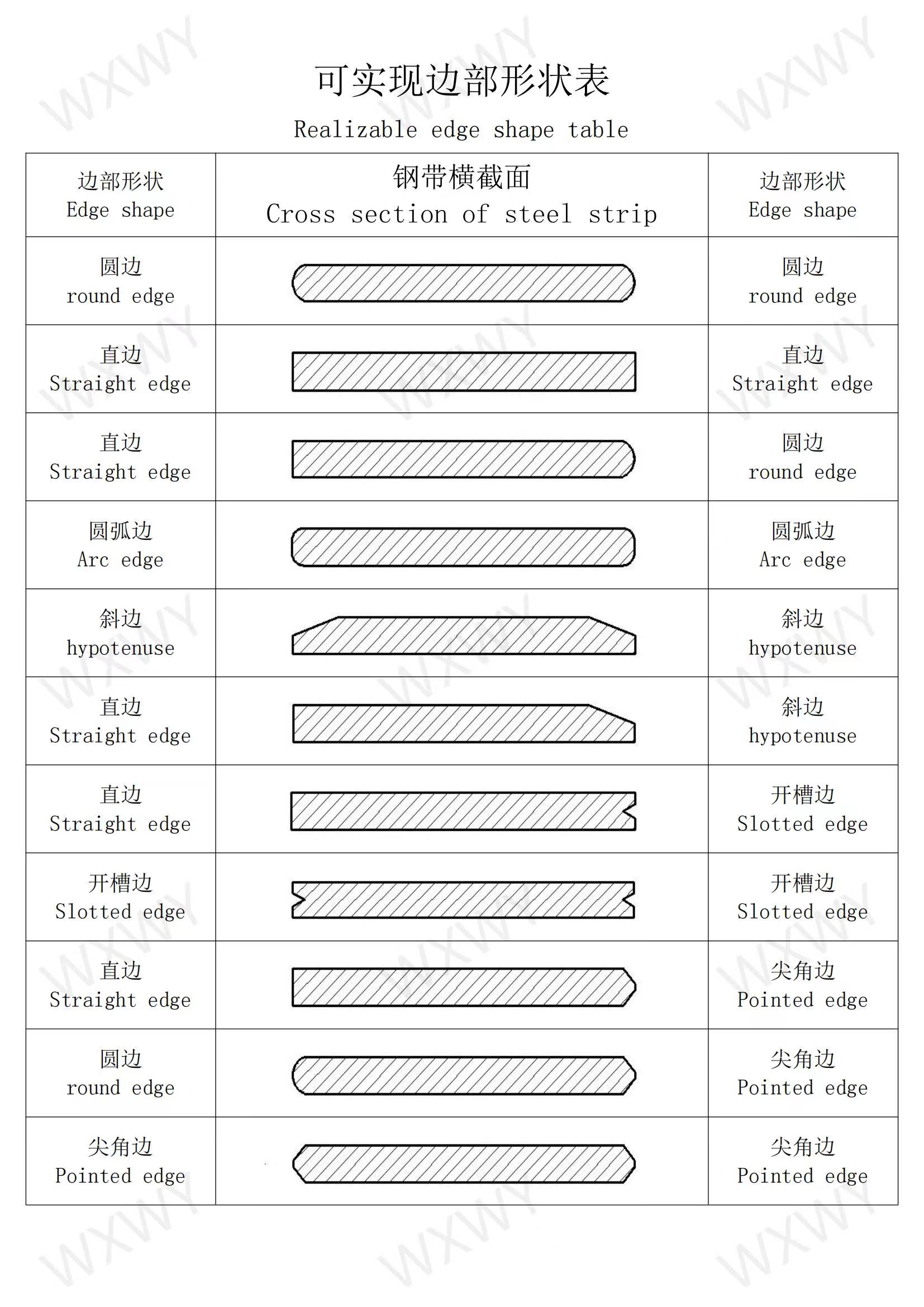

Strip edge : deburring/chamfering/Round edge ,or any shap edge require from customer.

Coil  Data: ID: ID:400-500 MM, OD:≤φ1200mm. width:10-150 mm. max coil weight:500kg-1000KG

3.Equipment parameters:

a.Speed:0-150M/min   adjustable speed, strip trimming speed depends on material   characteristics and trimming edge effect requirements

b.Power: About 50.5KW

c.Operator: 1 technician and 2-3 workers.d.Height of working: 1000 mm.

e.Space: W13*D1.5*H1.6 M.

f.Voltage:380V/ 3phrase/50 HZ(depend on customer requirment).

g.working height:1000mm

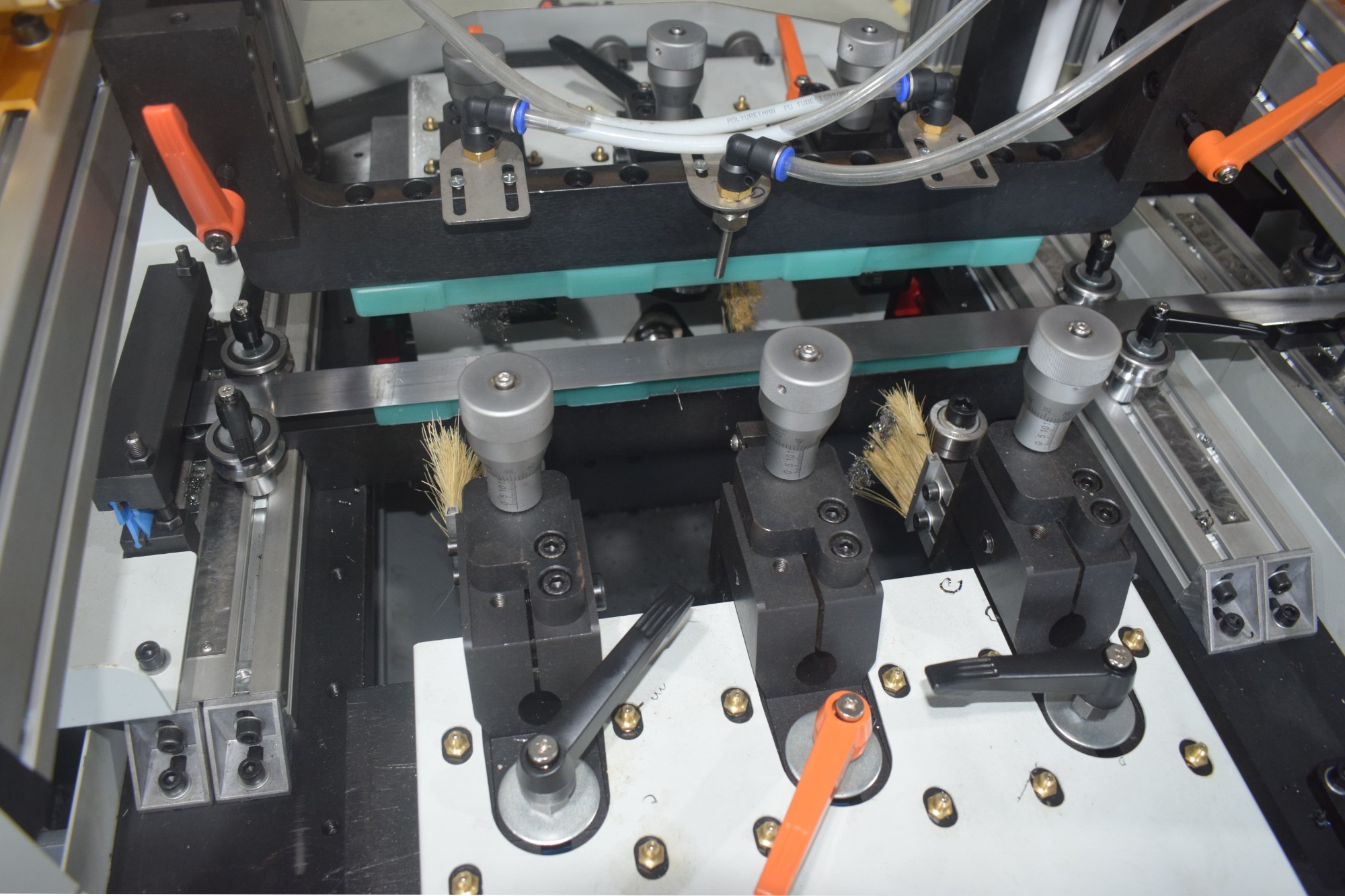

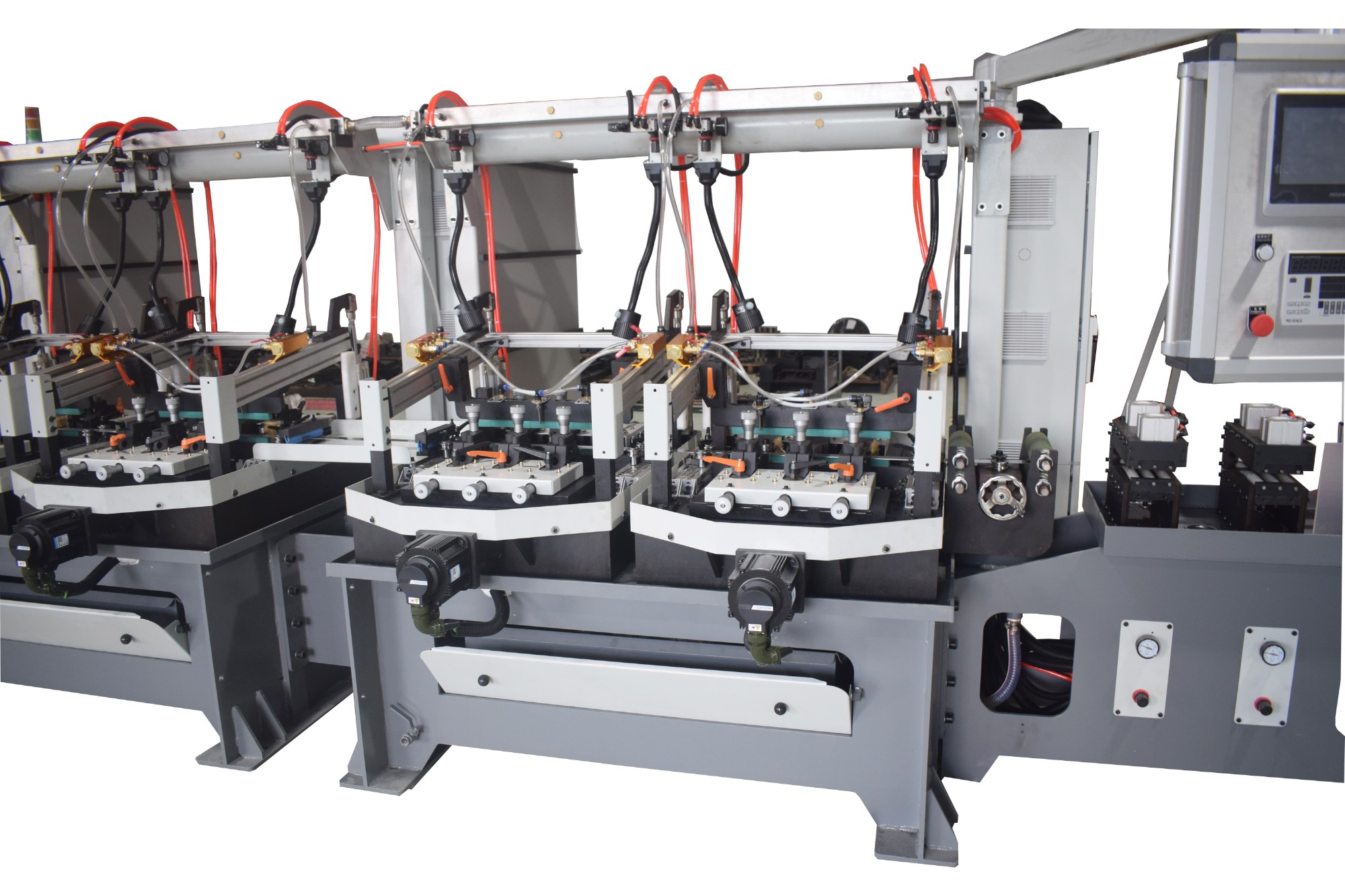

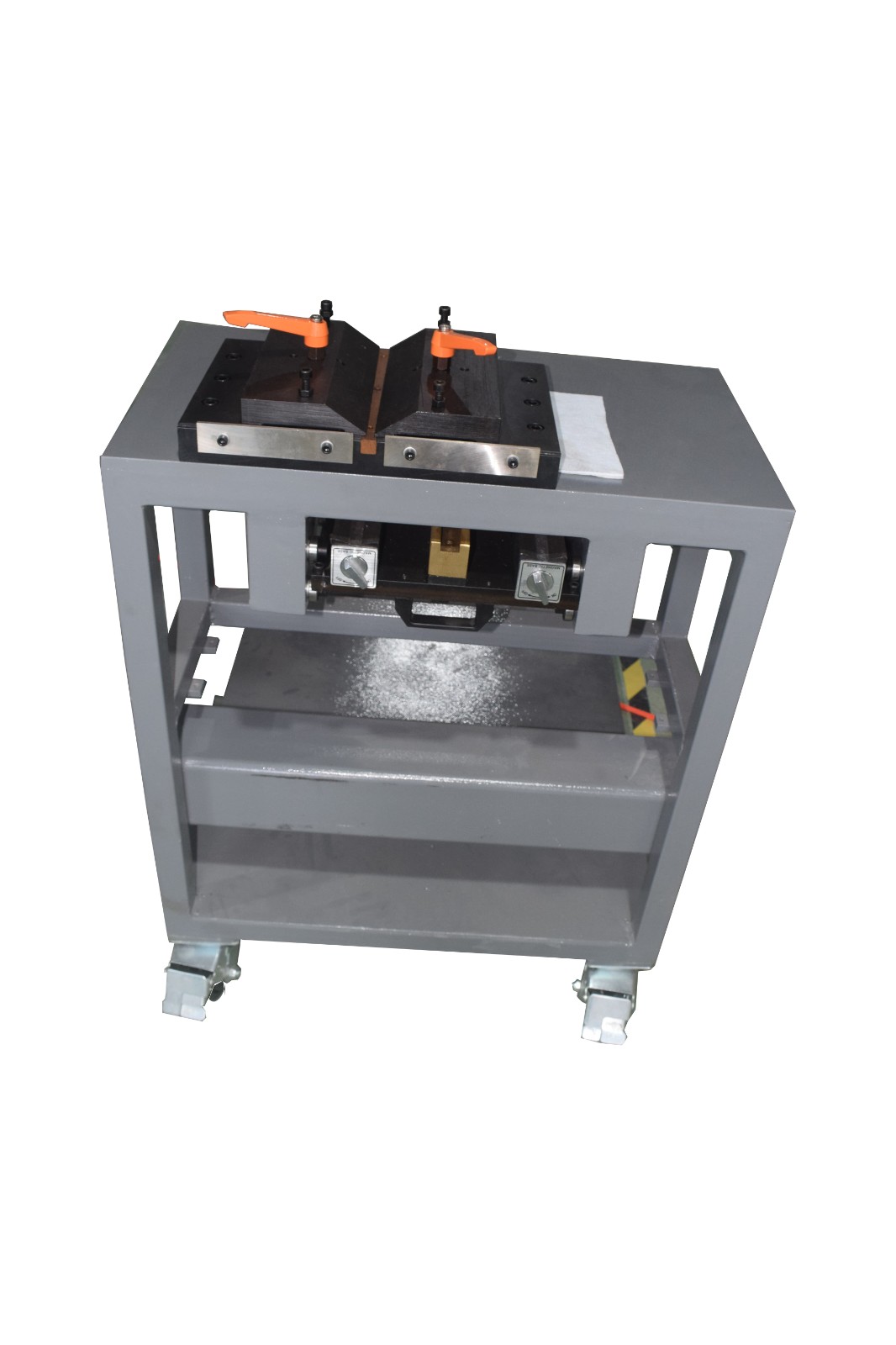

h.Knives for trimming:Each group can be equipped with 3 or 6 trimming tools, up to 24 trimming tools can be transferred

i.Scrap collection:With drawer type scrap collection box

4.Equipment component

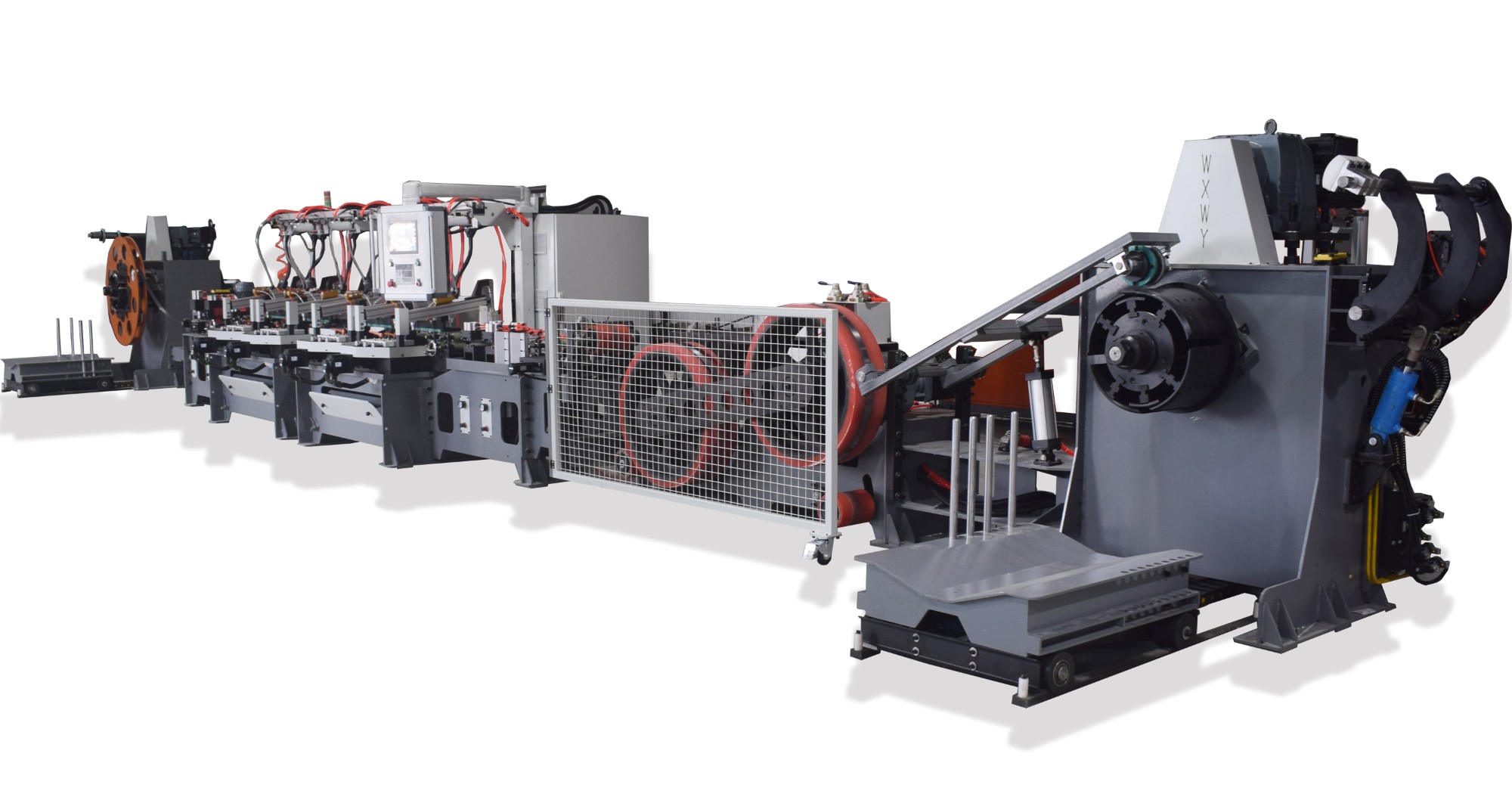

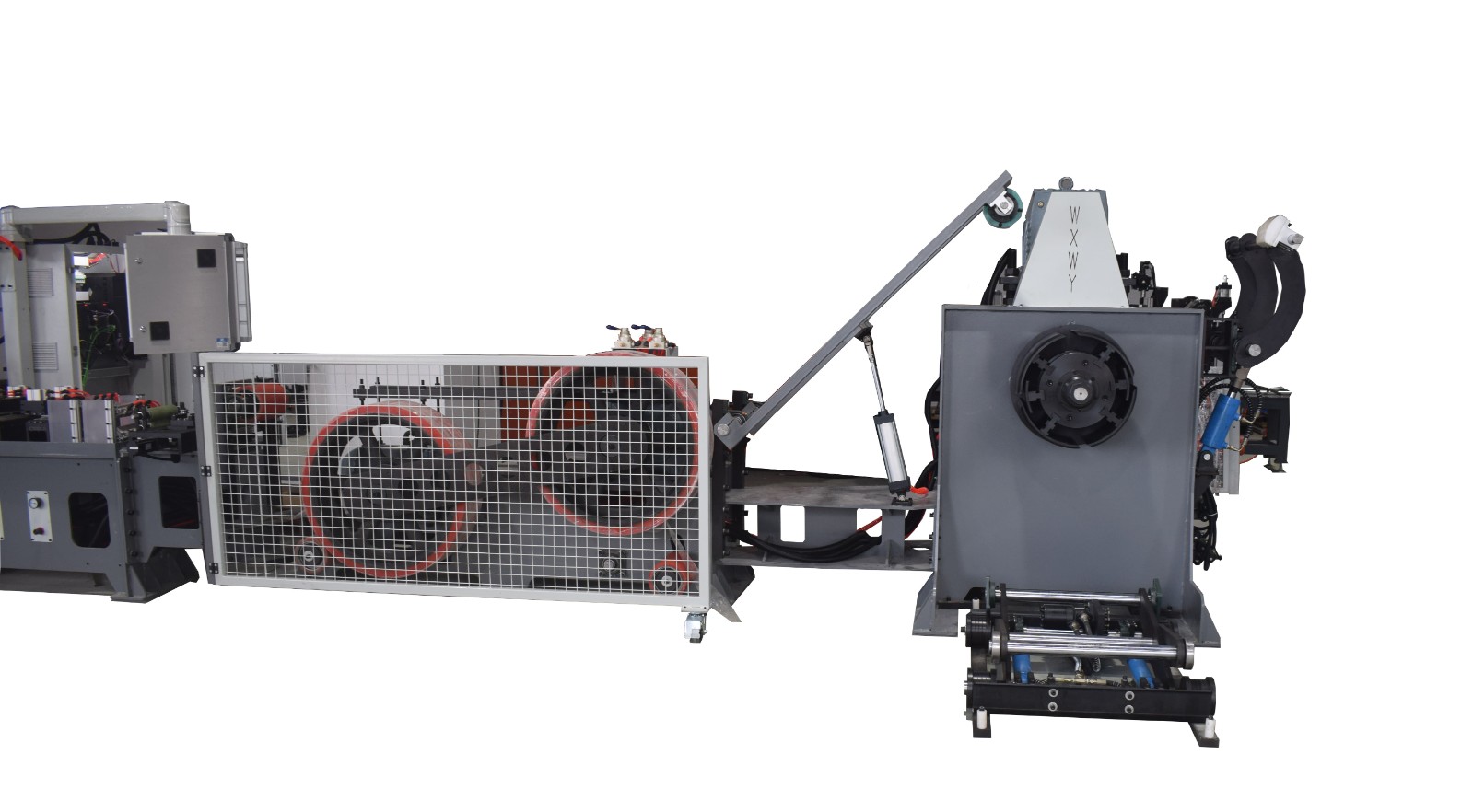

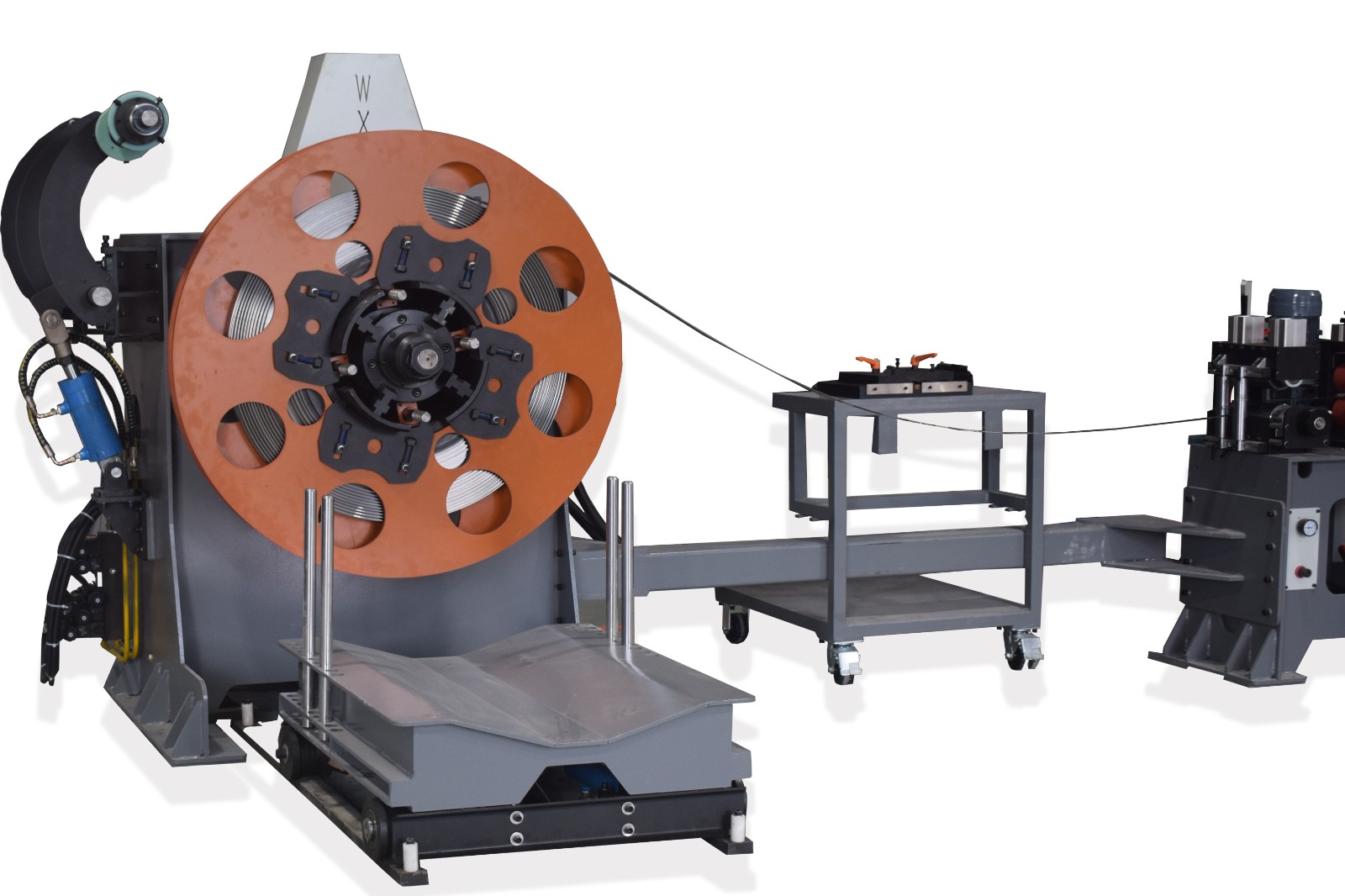

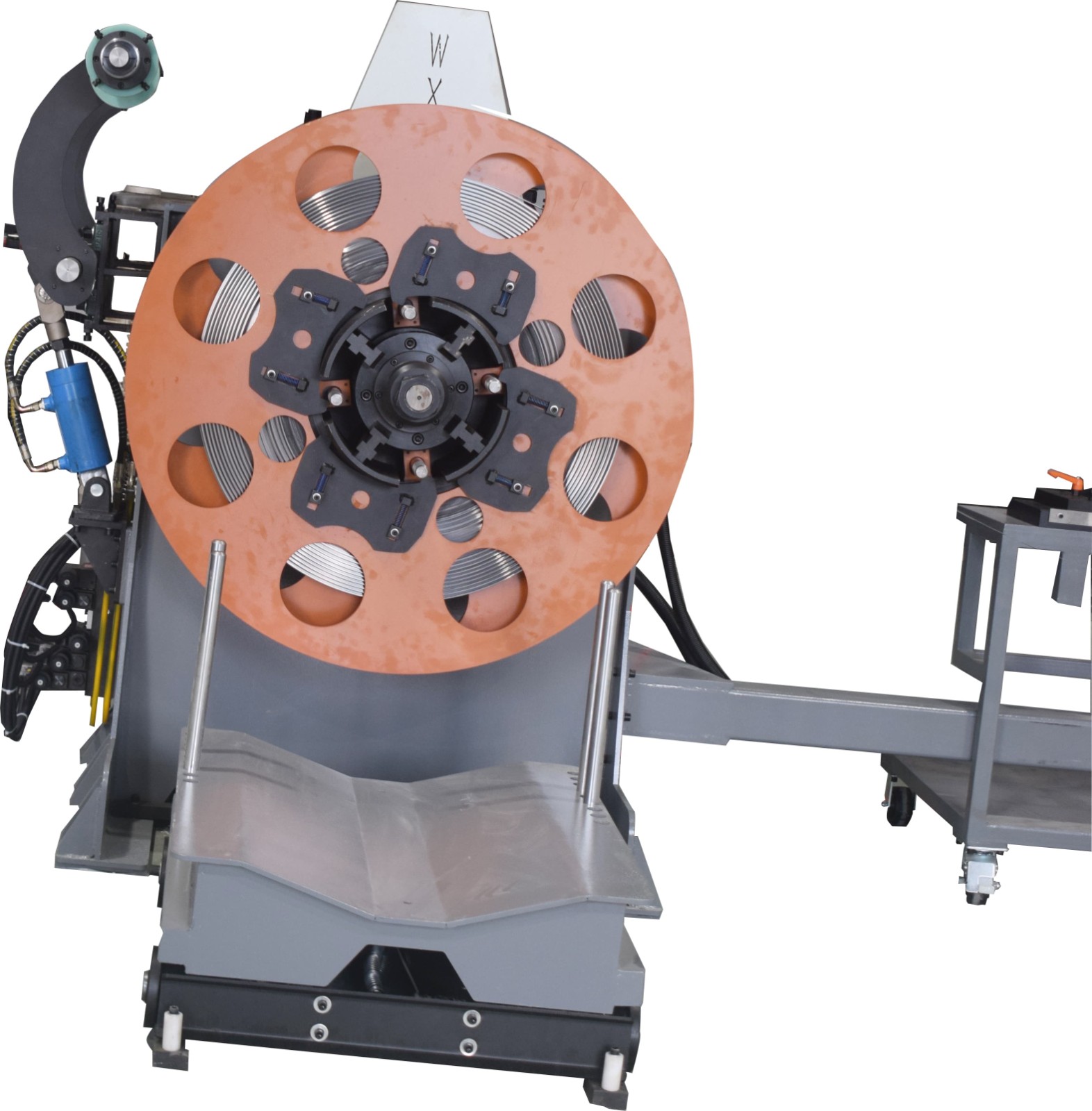

[1] Decoiler    [2] loading car     [3]9#servo motor

[4]2#Control electric cabinet    [5]  No.1#-no.4#  knives   [6]1# Control electric cabinet

[7] Recoiler    [8] S-roll machine   [9] unloading car

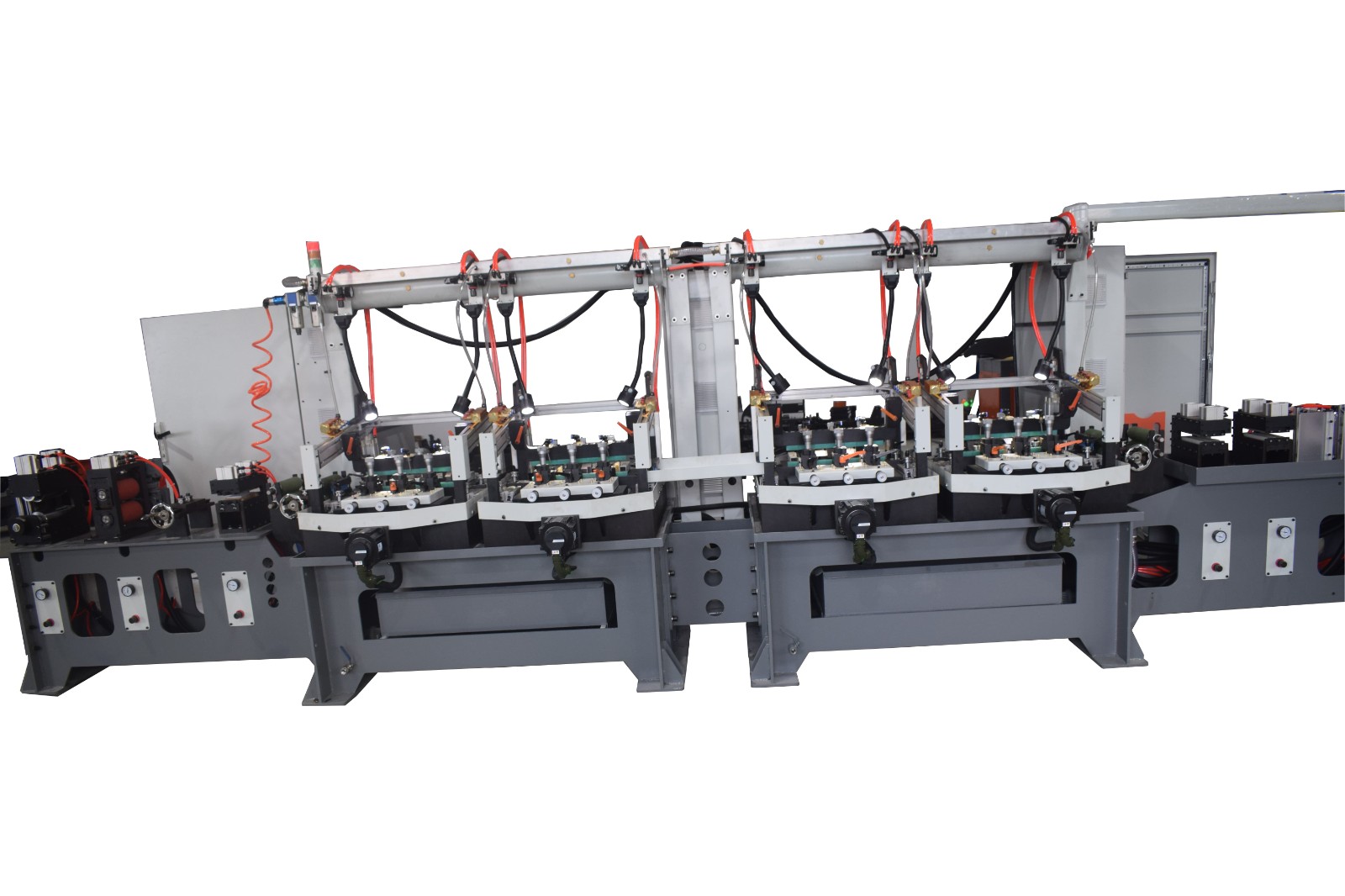

[10]NO. 5#-NO.8#  knives

Features of the modular CNC strip trimming machine:

A.Machine Features:

1.1 When the finished product must be finished from the slitting edge to the finished edge, the quality of the slitting edge does not meet the requirements.

1.2 Glory(WXWY) modular CNC strip trimming system can prevent burrs.

1.3 Chips are removed by chip conveying system (customizable).

1.4 The surface structure of the material is not affected.

1.5 even taking into account the maximum width tolerance.

1.6 In the pipeline industry, strip trimming is essential to improve welds. –

1.7 The machining edge can be combined and carried out with the surface treatment of the strip.

1.8 Working with multiple tools/modules.

1.9 Can be integrated into existing production lines.

1.10 The cutter can be adjusted flexibly.

1.11 In the case of high speed or thick chips, a large amount of metal friction energy is introduced into the production process and converted into heat. There must be a cooling and lubrication system to reduce the heat of the tool and the processed strip, and use compressed air for cooling.

B.Modular system:

2.12 The machine/production line can be expanded modularly to increase the number of tools.

2.13 The strip trimming module and the strip surface treatment module can be combined so that two production processes can be performed simultaneously.
