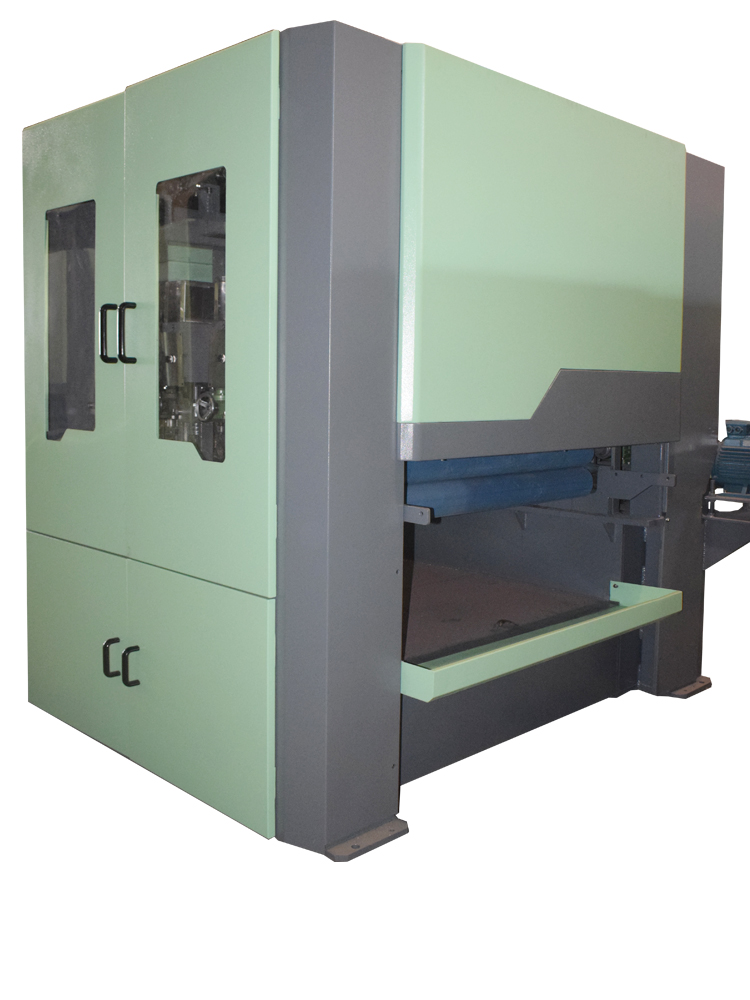

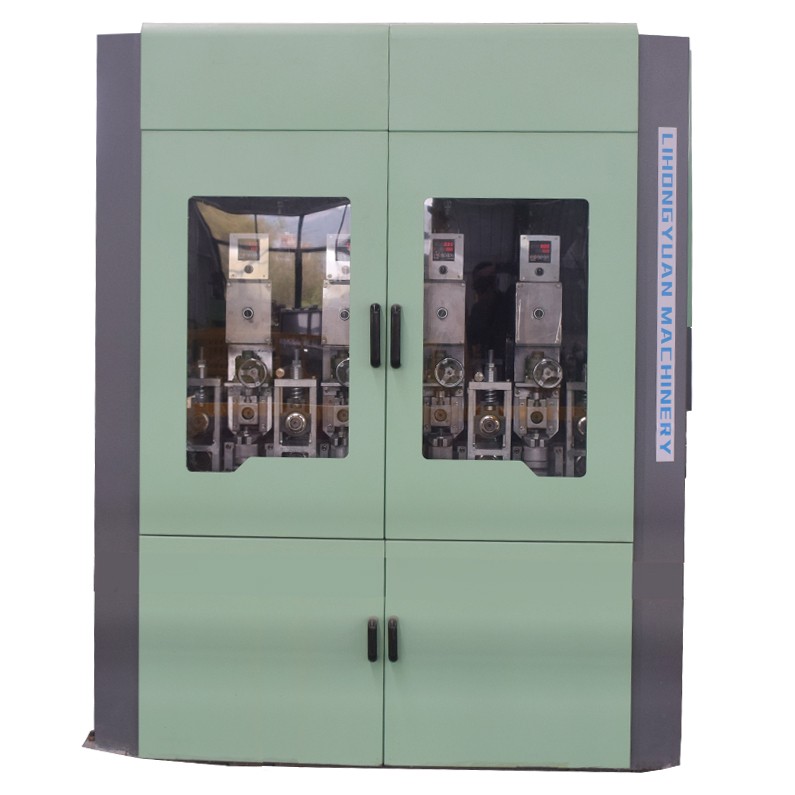

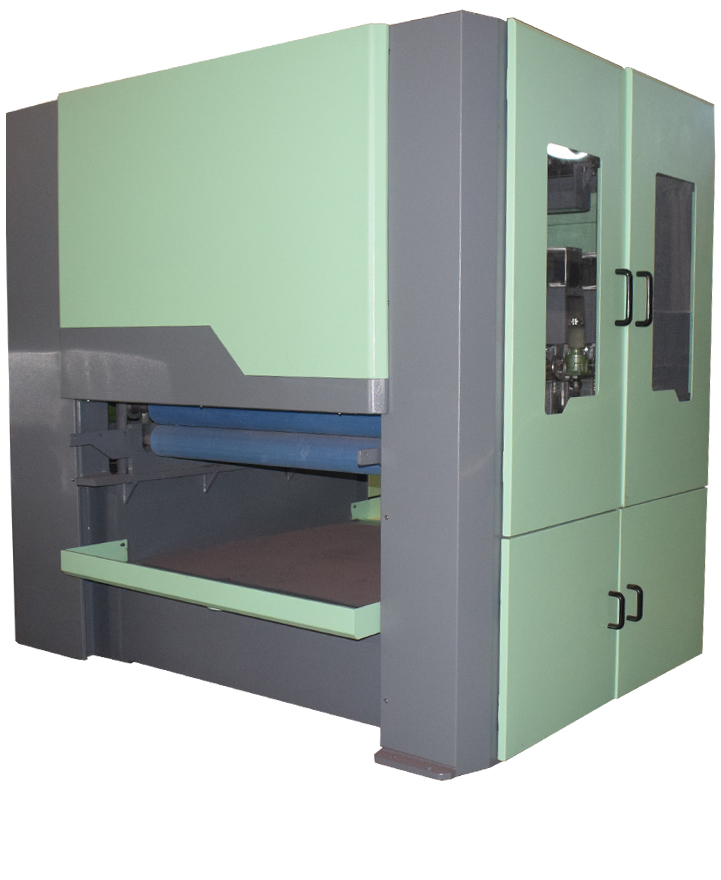

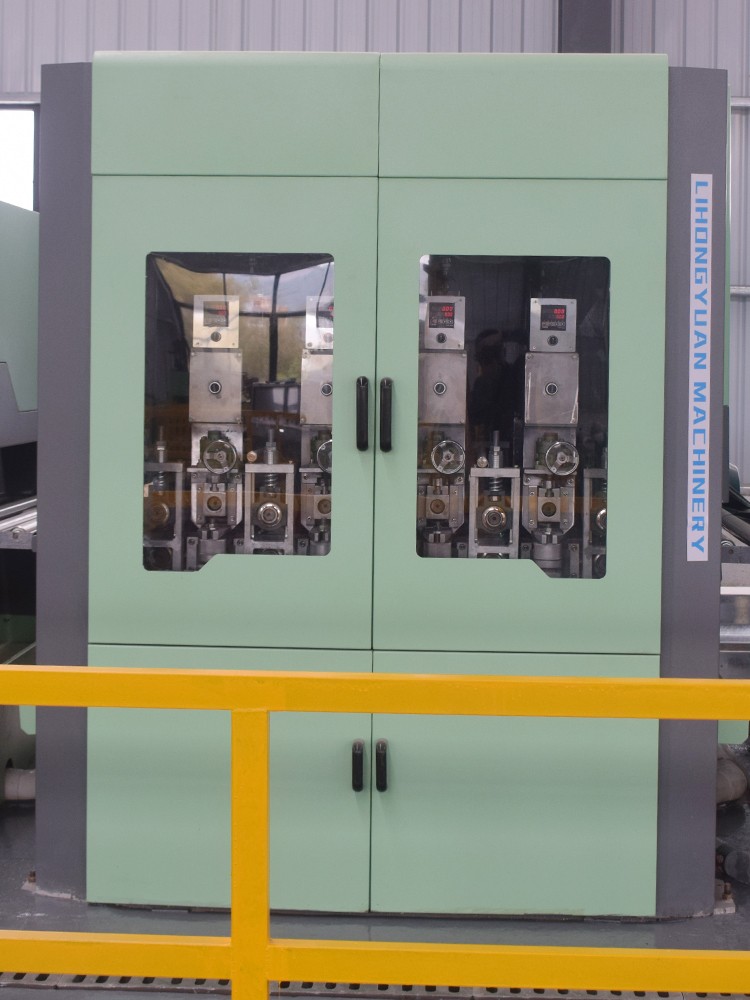

1300 type 4 Hairline Polishing Machine

Polishing name: 1300 type 4 hairline heads machine
Proceeding Way: Sheet or coil ,Wet or dry
Qty of hairline heads:   4 Heads
Maximum witdh of sheet or coil: 300-1250 mm
Min length of sheet: 600mm
Thickness for stainless steel	0.3-3 mm( Standard)
Feeding speed	0-50 M/min(Adjustable )
Main Power:	0.75KW*4+3KW transfer motor
Dia of working roll:Dia160 mm
Speed of Abrasive belt:	0.4 M /Min
Perimeter of Abrasive of belt: 2620 mm
Dust absorption-dry polishing: 40003/H
Filter flow-wet po

Model:LHY-1300-4GG

Stainless steel roller brushing machine/4 Heads

Technical Parameter

1.Raw material:

a.Stainless steel sheet : 430,439,445,304,316,200 series

b.Sheet surface:2B and BA surface

c.Sheet width: 200-1250 mm. max sheet: 1250*4000mm/6000mm

d.thickness of sheet:0.3-3mm.

2.Finished product parameters:

Surface of stainless steel sheet:Brushing roller

Equipment Description:

Machine Feature

1. Frame material:

Our company uses high-quality suppliers that have passed ISO9001 or CE certification

The water tank and waterproof plate of the model are made of 304 stainless steel and are in contact with the water.

Surface sanding and chrome plating of contact parts

All machine frames are made of steel structure welded, with high temperature stress relief and surface polishing.Sanding, primer and topcoat spraying.

2. Standard Function:

Use the abrasive belt and speed, and adjust the mesh number of the abrasive belt to adjust the depth of the silk pattern.

Use the cylinder to tighten the abrasive belt

3. Hairline working roll:

Motor adjust speed of abrasive belt and adjust the speed of abrasive

Each working roller adopts strict factory accuracy requirements

4.:Working Motor:Only use high-quality domestic Jiangsheng brand or customer-specified brand motors

Determine the motor power according to the type of processing

5.HMI and PLC

Siemens or customer-specified brand PLC system, all models of water tanks and waterproof panels use Schneider or other brand electrical components

Automatic oil mist lubrication system for grinding bearings

6. Electric Cabinet:

Main switch controls the entire line power supply

The host computer corresponds to the electrical cabinet, making it easy to assemble or repair.

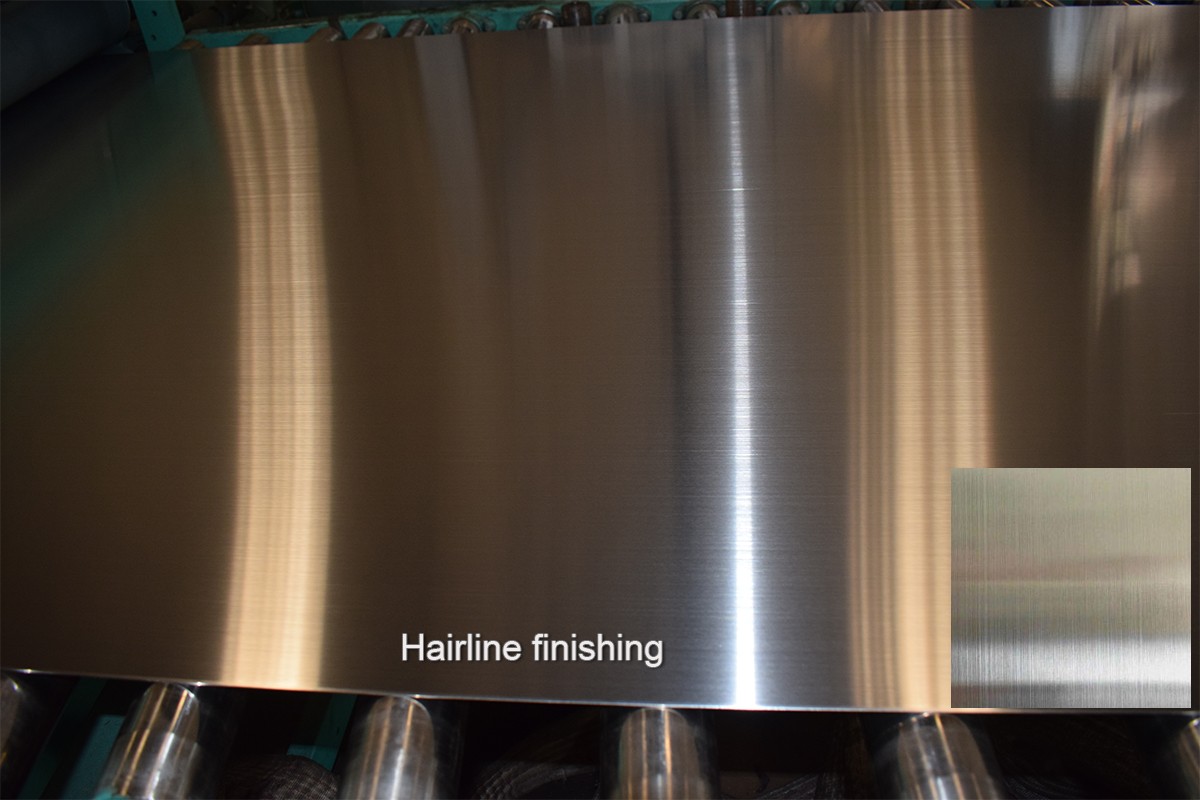

The HL series provides straightening wire grinding services for metal materials or flat plates. This series of equipment has two processing methods: dry polishing or oil polishing. The annular abrasive belt is placed outside the sand lift at extremely low speed. Through the downward pressure during the sand preparation period, the abrasive belt pulls out straight lines on the metal surface. After processing by the unit, Straight wire HL board has clear surface texture, and the inclination of the straight grain within 2 meters in the longitudinal direction does not exceed 2mm. The equipment has the characteristics of low sand belt loss rate.

We have two hairline of sanding rollers, three hairline heads of sand rollers, and four hairline heads of sand roller models for customers to choose from. Customers can obtain metal art effects with controllable depth and depth of silk pattern density by adjusting parameter settings and replacing abrasive belts.

-_09 -_10 -_11 -_12 -_13

Q1: What kind of machine do you have ?

A1: We three type different machine line and accept customize

a. coil to coil wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface

b. Sheet to sheet wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface

c. Hi precision slitting line for cold roll for different width .

d. Cut to length (Stop shear and frying shear ) for cold roll

e. The strip edge trimming machine for deburring +Chamfering +round edge for different steel strip(from 5mm-300 mm)

Q2: How to visit your company?

Our company located in Foshan city ,Guangdong province of China , we can pick you up from Guangzhou Baiyun international airport or any other place in Guangdong province .

Q3:How long will you send the proposal and offer?

A3:We need you provide your material data and your requirement for machine,then we can give you offer within 2-3 days.

Q4: What is your payment term and lead time?

A4: We usually accept 30% deposit ( the strip edge trimming machine line need 50%), the balance must be paid before shippment ,or 70% is irrevocable LC at sight ; the lead time : we generally need about 90 days after getting deposit .

Q5: How to install the machine and the engineer fee,and warranty?

A5: We will send one or two engineer to install the machine in customer plant,the customer need bear the visa fee/flight ticket/accommodation during installation ,and give 80 usd subsidy to engineer; installation and training time : it usually need about 10-25 days with the cooperation from customer ,depend on the size of machine .
