1300 type 2 Hairline Polishing Machine

 Model:LHY-HL1300-2GG

Hairline Finishing Machine/4 Heads

Technical Parameter

1.Raw material:

a.Stainless steel sheet : 430,439,445,304,316,200 series

b.Sheet surface:2B and BA surface

c.Sheet width: 200-1250 mm. max sheet: 1250*4000mm/6000mm

d.thickness of sheet:0.3-3mm.

2.Finished product parameters:

Surface of stainless steel sheet:Hairline  (dependiing grit of abrasive  belt 120#/150#/180#/220#/320# grit)

3.

Equipment Description:

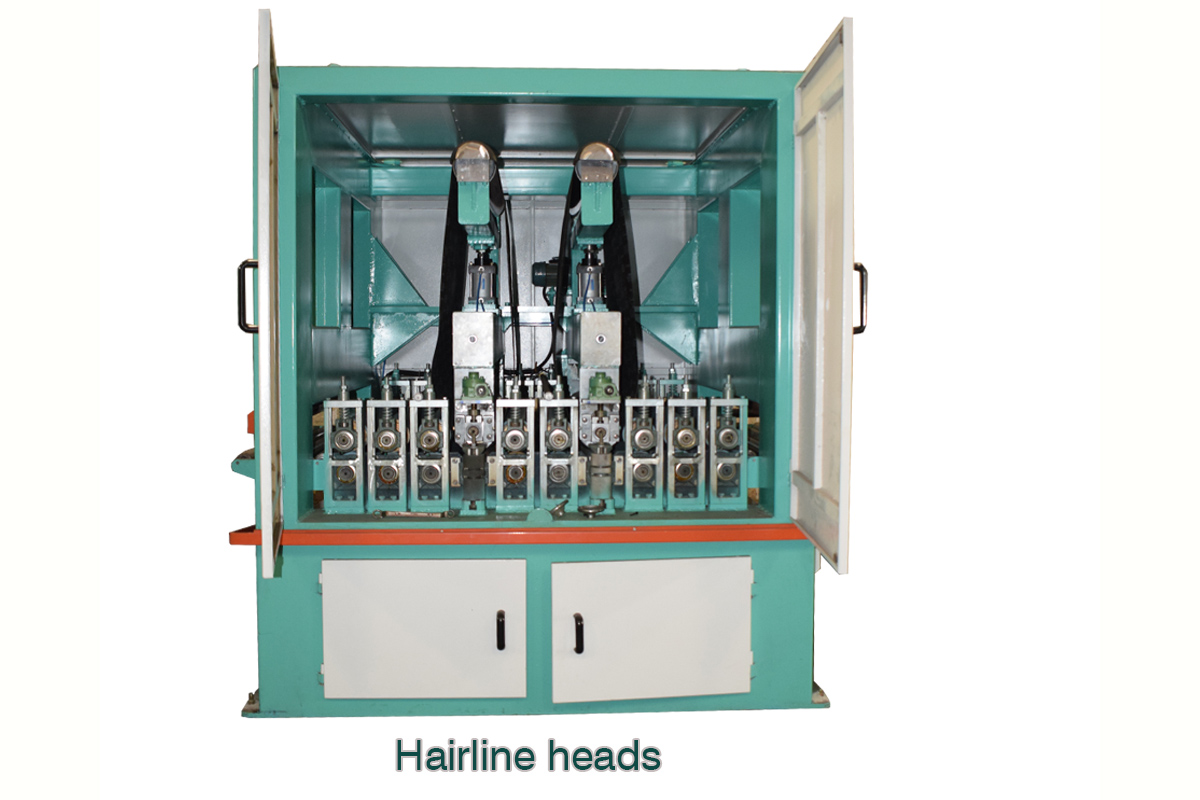

4 polishing heads for Hairline Machine

1. Rack: steel plate steel welding, annealing and stress treatment, large gantry milling machine milling plane and boring machine boring processing;

2. Lifting mechanism: the worm wheel lifter screw synchronous electric lift, the platform height can be precisely adjusted, and the lift height is digitally displayed by the altimeter;

3. Conveying roller and Pressing roller: seamless tube welding and processing iron core, outer wear-resistant imported acrylonitrile-butadiene rubber, roller surface length 1600mm, diameter 130mm;

4. Transmission mechanism: 4KW motor worm gear reducer is driven by universal joint sprocket chain, frequency control;

5. Hairline roller: seamless tube made of iron core, outer wear-resistant imported acrylonitrile-butadiene rubber, diameter 160mm, worm gear reducer drive, micro worm gear synchronous manual adjustment lift, can also be fine-tuned on one side.

6. Passive upper steel roll: seamless tube production, hard surface chrome plating on the roller surface; cylinder top tight belt, belt specification: 2620mmX1580mm

7. Broken wire grinding head is operated separately and frequency control is adopted.

 Machine Feature

1. Frame material:

Our company uses high-quality suppliers that have passed ISO9001 or CE certification

The water tank and waterproof plate of the model are made of 304 stainless steel and are in contact with the water.

Surface sanding and chrome plating of contact parts

All machine frames are made of steel structure welded, with high temperature stress relief and surface polishing.Sanding,  primer and topcoat spraying.

2. Standard Function:

  Use the abrasive belt and speed, and adjust the mesh number of the abrasive belt to adjust the depth of the silk pattern.

Use the cylinder to tighten the abrasive belt

3. Hairline working roll:

   Motor adjust speed of abrasive belt and adjust the speed of abrasive

Each working roller adopts strict factory accuracy requirements

4.:Working Motor:Only use high-quality domestic Jiangsheng brand or customer-specified brand motors

Determine the motor power according to the type of processing

5.HMI and PLC

  Siemens or customer-specified brand PLC system, all models of water tanks and waterproof panels use Schneider or other brand electrical components

Automatic oil mist lubrication system for grinding bearings

6. Electric Cabinet:

 Main switch controls the entire line power supply

The host computer corresponds to the electrical cabinet, making it easy to assemble or repair.

The HL series provides straightening wire grinding services for metal materials or flat plates. This series of equipment has two processing methods: dry polishing or oil polishing. The annular abrasive belt is placed outside the sand lift at extremely low speed. Through the downward pressure during the sand preparation period, the abrasive belt pulls out straight lines on the metal surface. After processing by the unit, Straight wire HL board has clear surface texture, and the inclination of the straight grain within 2 meters in the longitudinal direction does not exceed 2mm. The equipment has the characteristics of low sand belt loss rate.

We have two hairline of sanding rollers, three hairline heads of sand rollers, and four hairline heads  of sand roller models for customers to choose from. Customers can obtain metal art effects with controllable depth and depth of silk pattern density by adjusting parameter settings and replacing abrasive belts.
