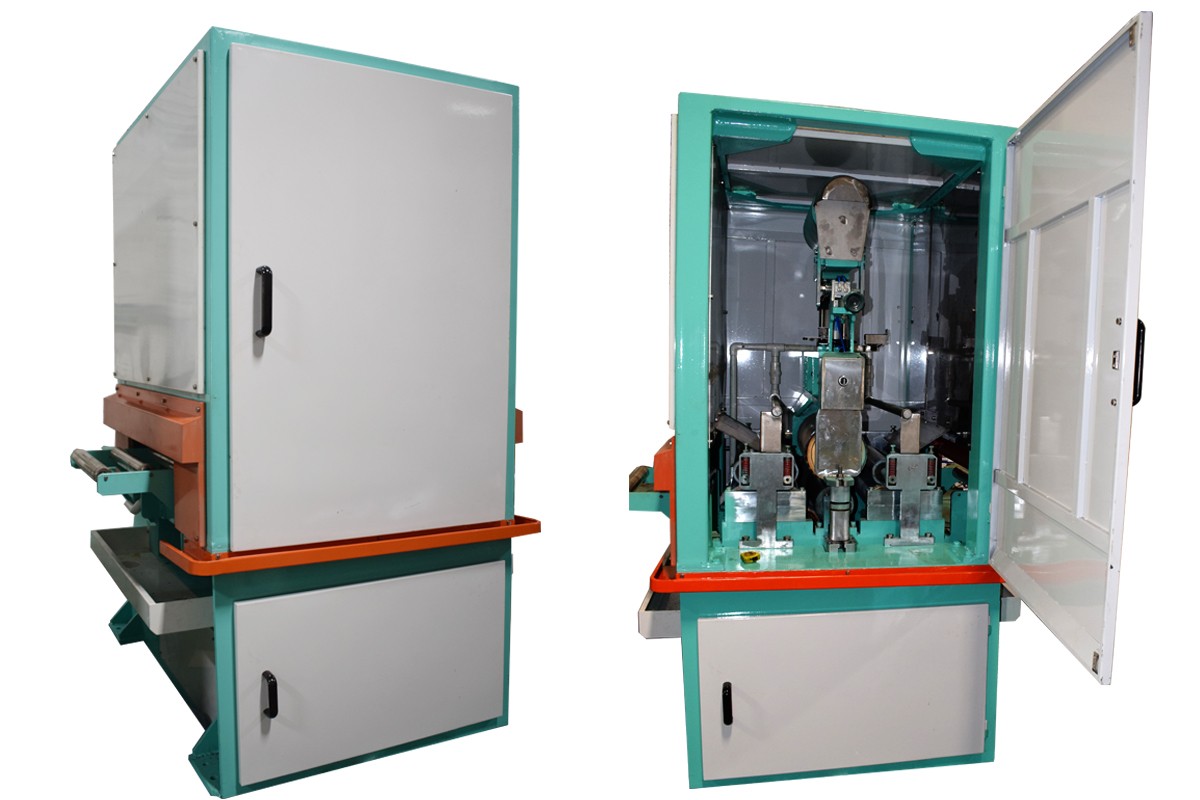

900 type NO.4 Polishing heads Machine

Polishing name: 900 type Single No.4 Polishing head
Proceeding Way: Sheet or coil ,Wet or dry
Maximum witdh of sheet or coil: 300-900 mm
Min length of sheet: 600mm
Thickness for stainless steel	0.3-3 mm( Standard)
Feeding speed	0-50 M/min(Adjustable )
Main Power:	30KW+3KW transfer motor
Abrasive belt length	 perimeter 2620*920 mm
Speed of Abrasive belt	2000-3000 R/Min
Dust absorption-dry polishing: 40003/H
Filter flow-wet polishing: 250 L/min
Working height:  sheet polishing : 920 mm

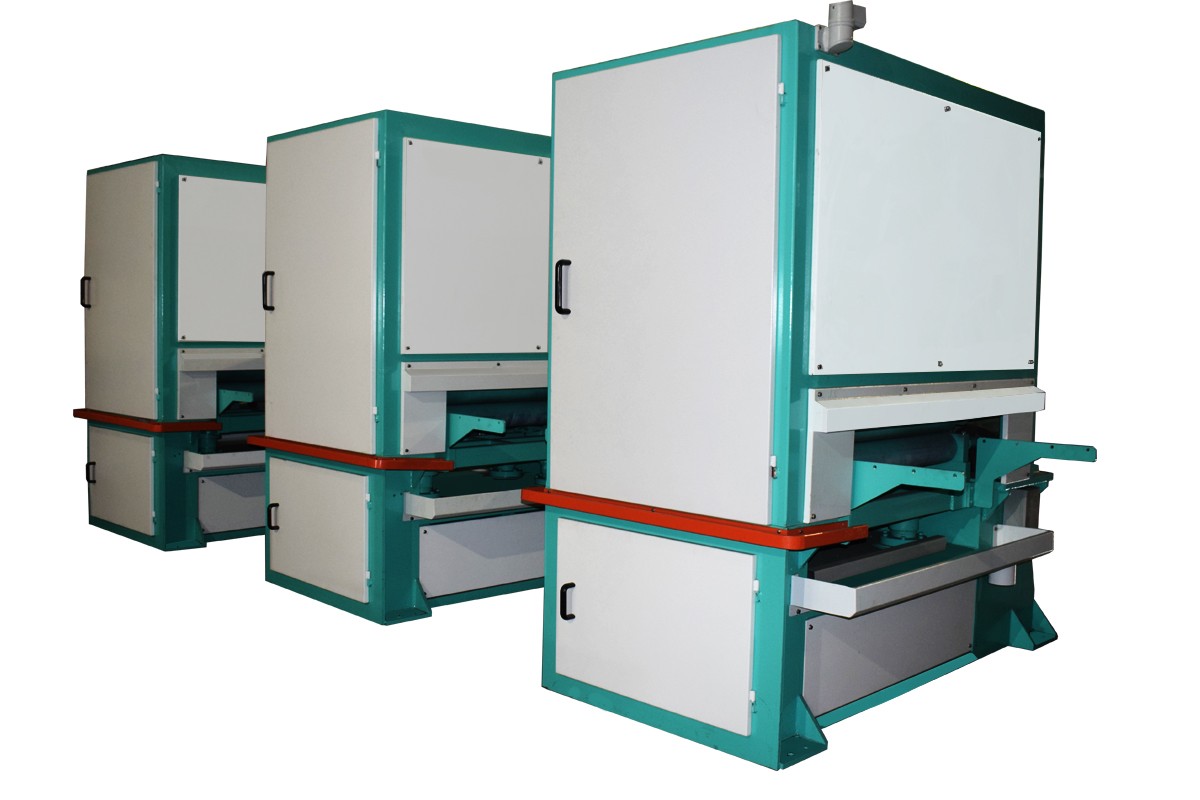

900 Type No.4 Polishing Machine for Top side

Model:LHY-900/

Stainless steel polishing machine

Technical Parameter

1.Raw material:

a.Stainless steel sheet : 430,439,445,304,316,200 series

b.Sheet surface:2B and BA surface

c.Sheet width: 200-900 mm. max sheet: 900*4000mm/6000mm

d.thickness of sheet:0.3-3mm.

2.Finished product parameters:

Surface of stainless steel sheet:NO.4 (dependiing grit of abrasive  belt 120#/150#/180#/220#/320# grit)

3.

Equipment Description:

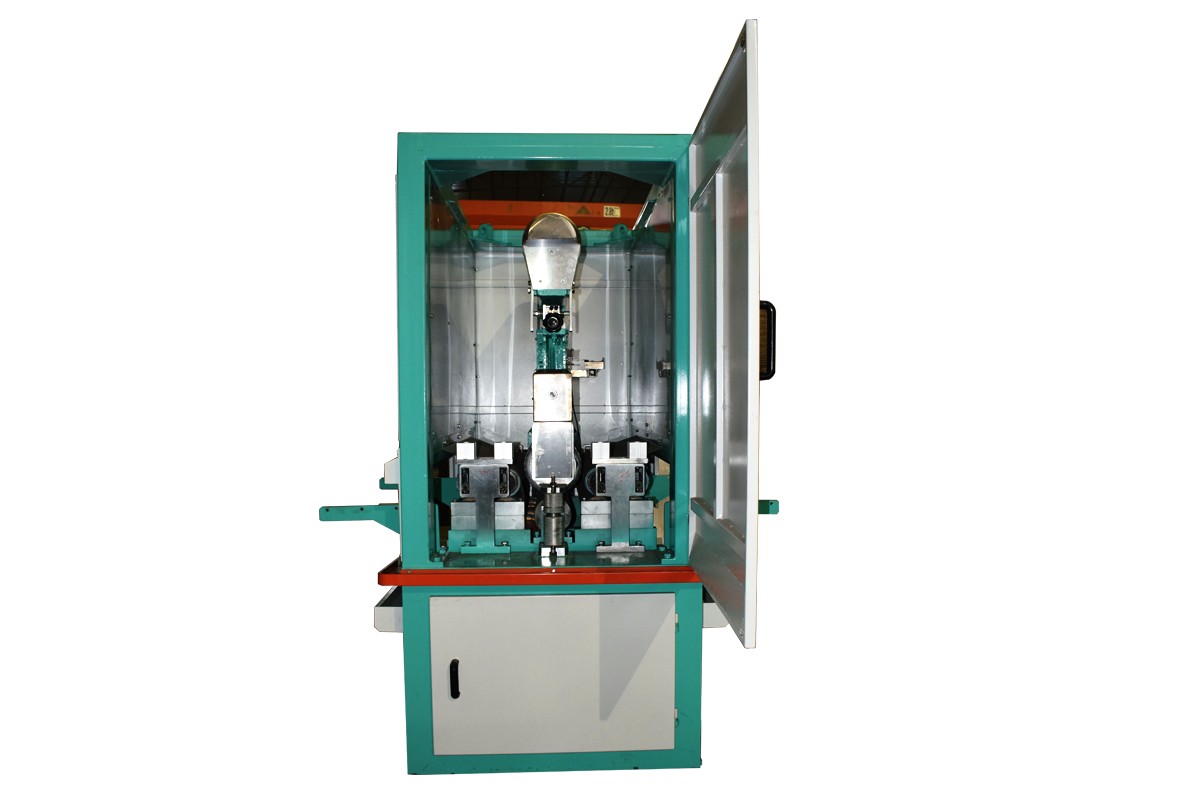

 Single Polishing NO.4 head machine:

1. Frame: steel plate steel welding, annealing and stress treatment, large-scale gantry milling machine boring machine precision machining, side plate and stiffener plate thickness 20mm, installation combined panel thickness 30mm; bottom plate 50mm;

2. Hood: steel plate welding (color according to customer requirements);

3. Bought - out items standard parts: the fasteners are made of 304 stainless steel screws, and the bearing oil seals are imported brands and domestic famous brands;

4. Sanding roller: It is made of high quality material processing iron core, after special treatment, strict processing precision inspection, dynamic balance test, including imported rubber, hardness tolerance of about 3 degrees, diameter of 240 mm, imported bearing oil seal;

5. Drive mode: motor (Jiangcheng motor), imported V-belt drive, frequency control (Shenzhen Sifang).

6. Adjustment mode: the conveyor platform is electrically lifted and adjusted to height, with digital display;

7. Bottom roller device: The material is made of 40Cr, and the medium-frequency treatment is carried out. The surface hardness is 58 degrees, the hardness layer is up to 3 mm, and the diameter is 150 mm. The height can be finely adjusted separately. The transition wheel is driven by the conveyor roller. In order to achieve the effect of synchronization with the conveying roller; the bottom steel roller can be quickly replaced.

8. Transmission conveying roller: Packing imported rubber, diameter 130 mm, roller surface 1600mm, variable frequency speed synchronous belt and worm gear reducer drive.
