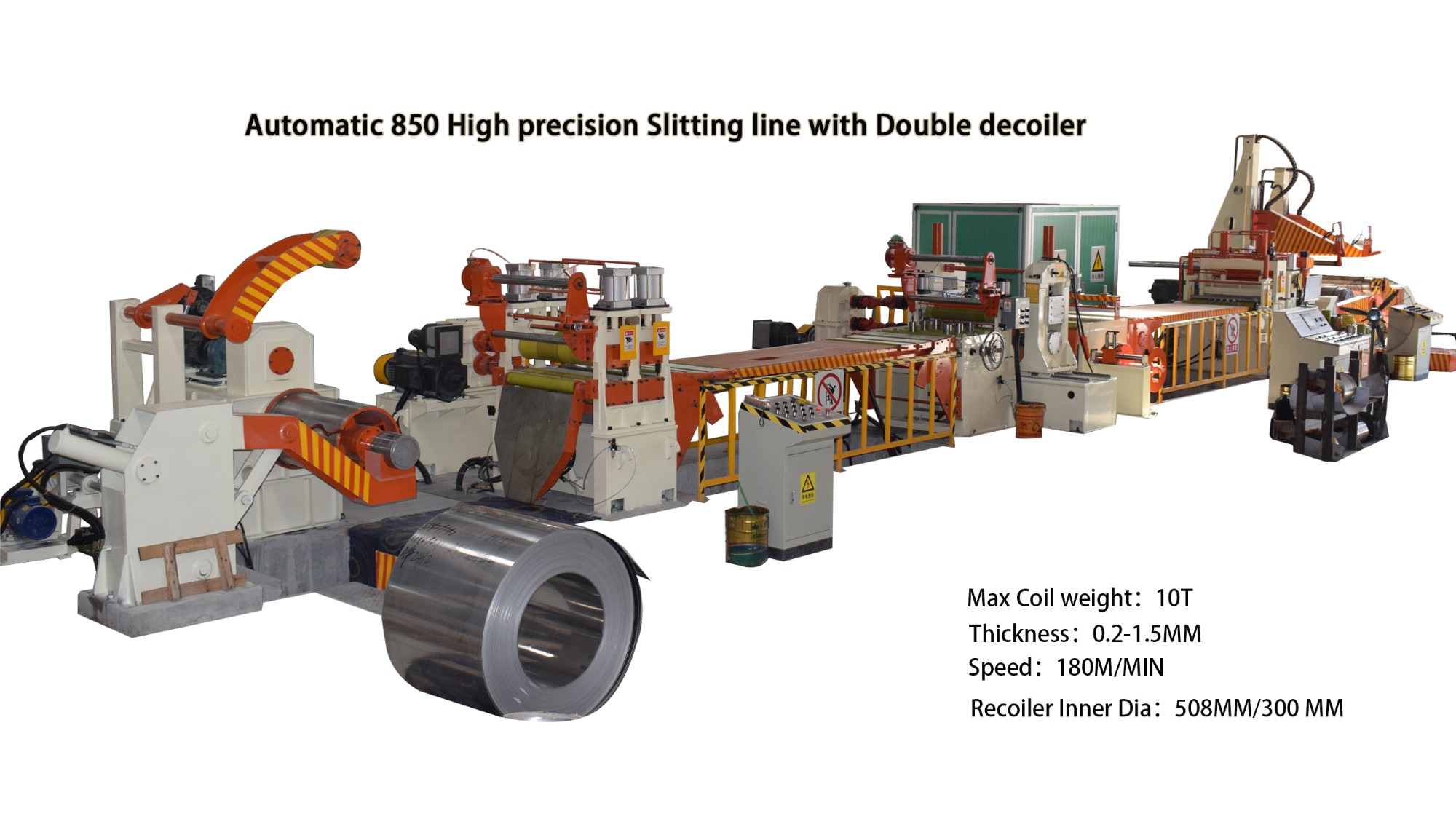

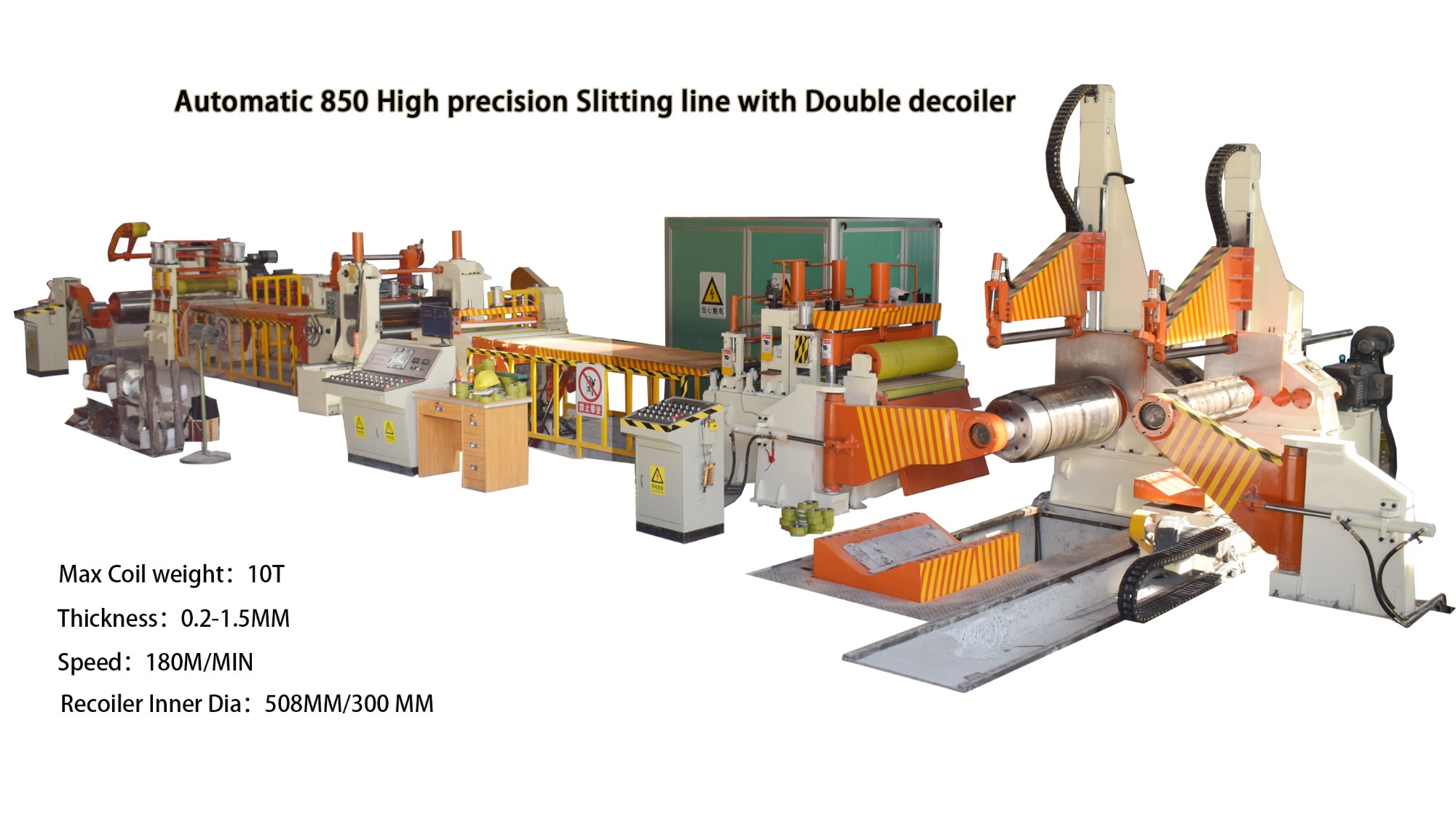

850 Type Slitting Line -Double slitter

850*2 Hi Precision Slitting Line with Double recoiler

Technical Parameter

A、Raw material Coil：

 1. Coil Material:Cold Rolled, Galvanized Steel /HR  2.Thickness:0.2-2.0 mm .3.Max Width:850mm

4.Outer Diameter :≤φ1600mm   Inner Diameter: 480-508mm  5.Max Coil weight: 10MT

6.Raw material mechanical properties:tensile strengthσb≤780Mpa

B、Finished product parameters：

1.Strip  Inner Diameter :Φ508mm

 2.Strip  Outer Diameter:≤φ1600mm.

3.Strips max weight:10MT

4.Number of strips:thickness：2.0mm≤12 pcs; 0.5 MM≤30 pcs;

5.:Mini width of strips:thickness：10 mm;

6.Mini width of strips:20 mm    7.Scrap edge width range:2-5mm

8.Burr:≤0.05mm

C.Equipment parameters：

1. Speed:0-180m/min，One key to start acceleration and deceleration

2.Shear line speed：0-15m/min  3.Power:380V/50Hz/3Ph

4.Total Power:About 150KW.   5.Operator:1 technician and 2-3 workers

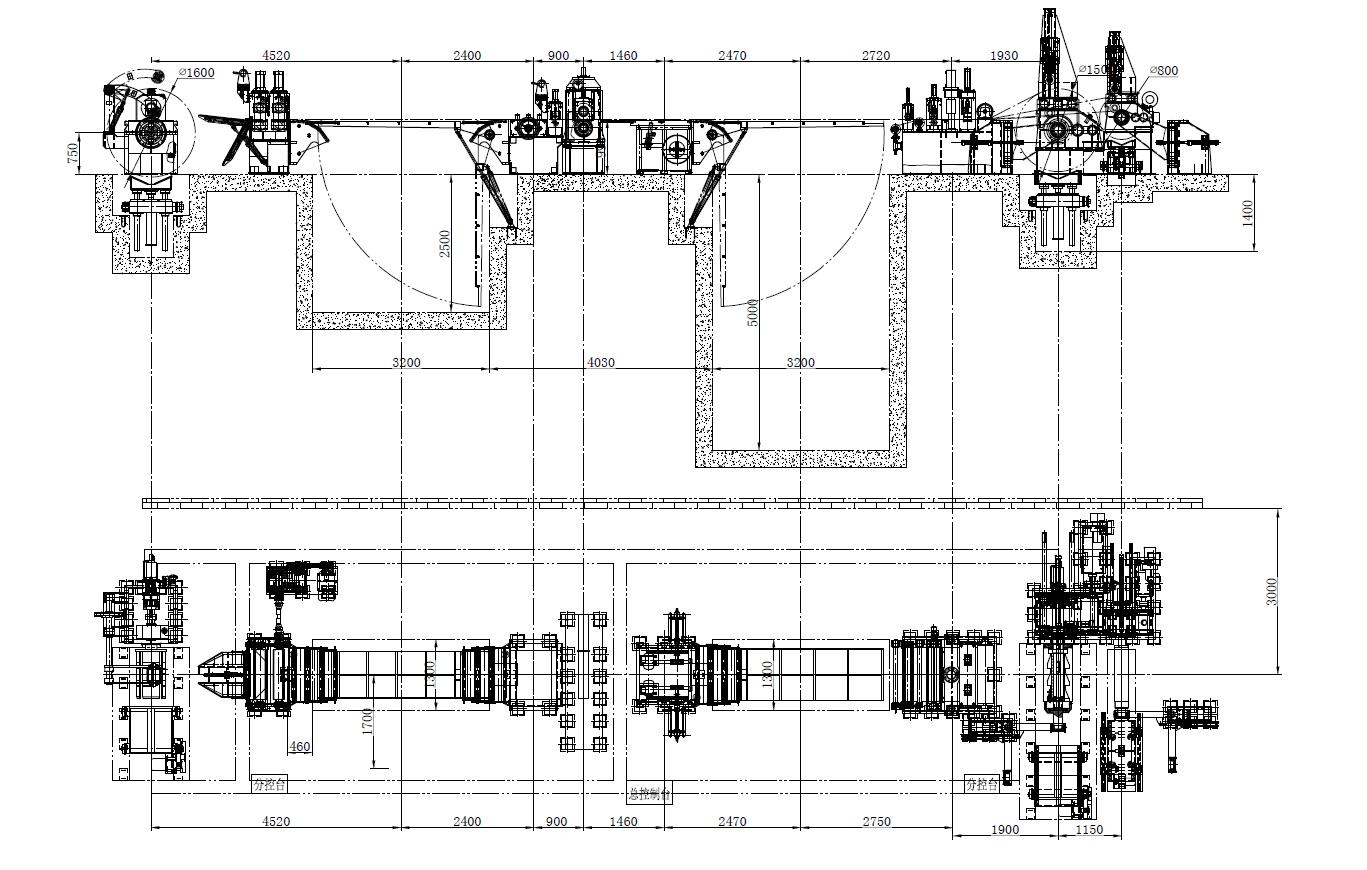

6.Height of working:1000MM.  7.Space:(W)22 m× (D)8 m

8.Direction:From   to   (The operator faces the machine , feeding coil from)

9.Temperature near machine:0C-40 C

10.Air pressure:0.4-0.6MPa

3）.Mechanical composition:

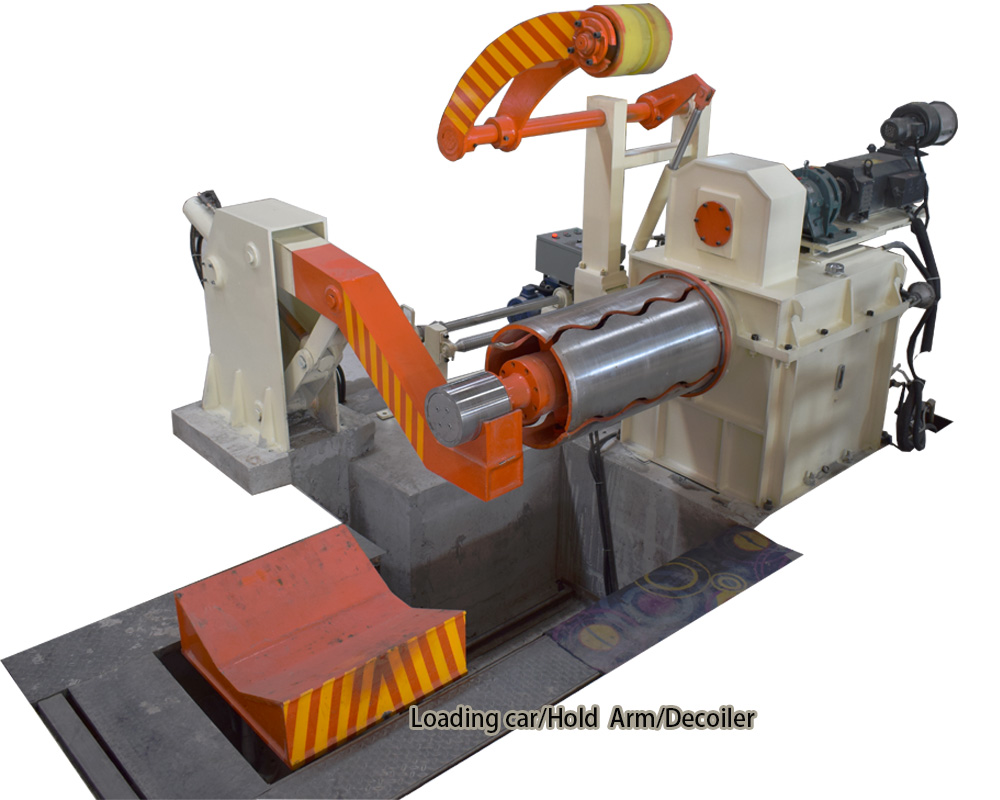

1.Loading car                                                  1 set

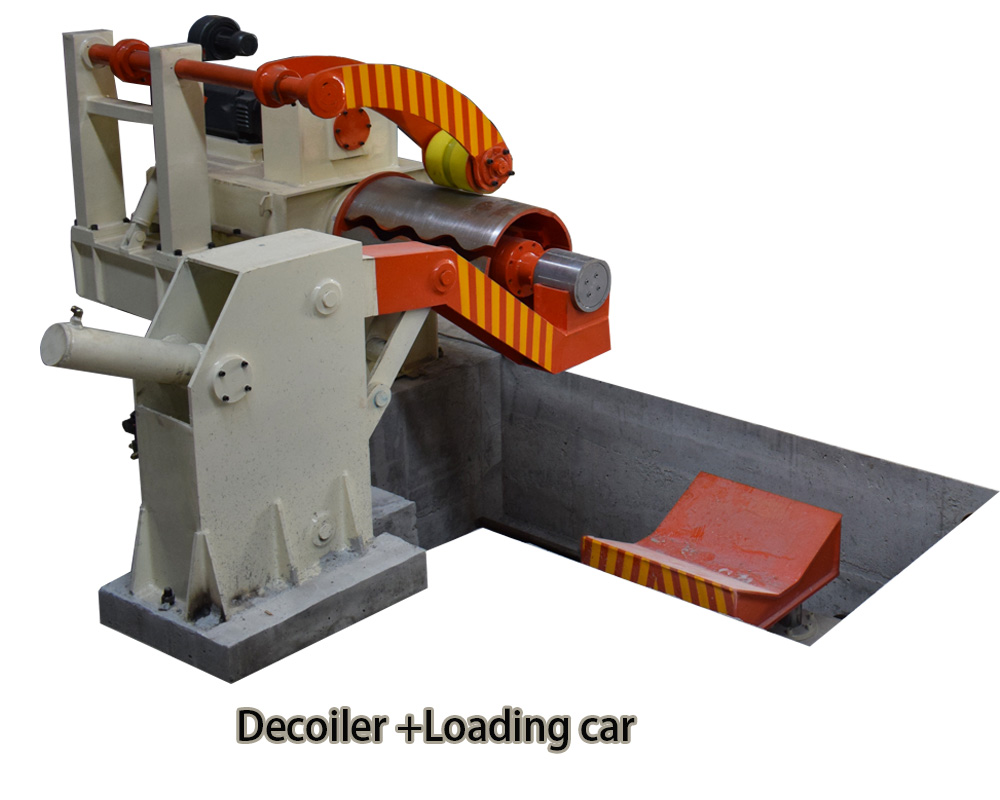

2.Decoiler with holding arm                            1 set

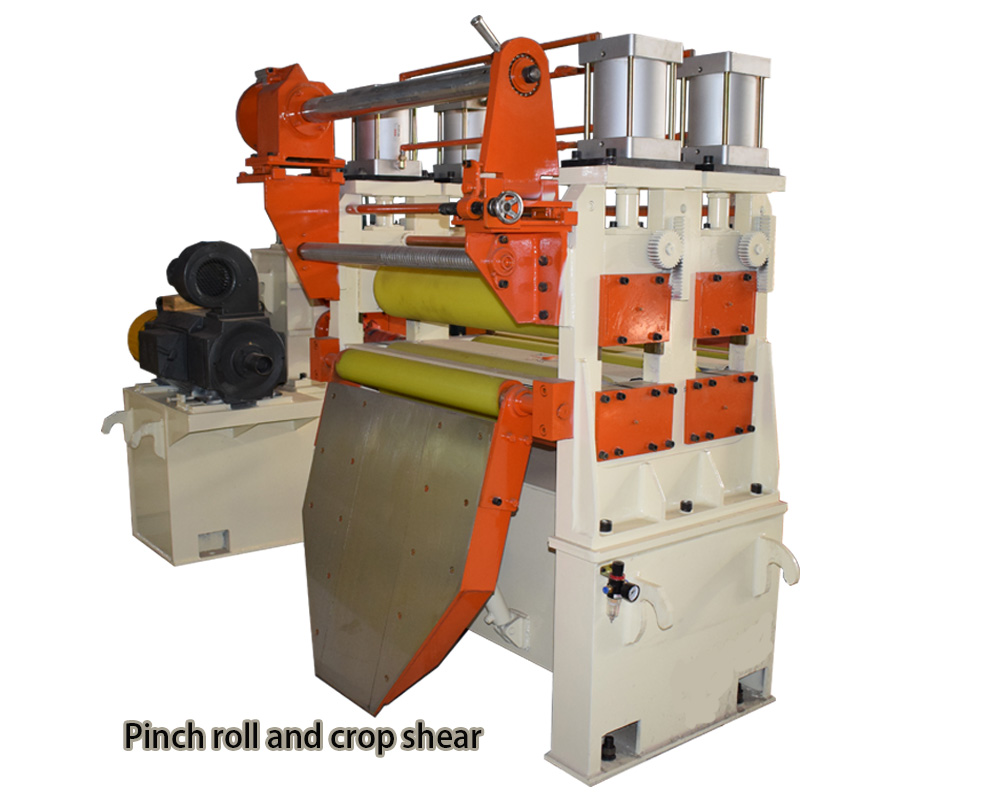

3.Peel table ,Pinch Roll ,Crop shear              1 set

4.Loop bridge1#                                             1 set

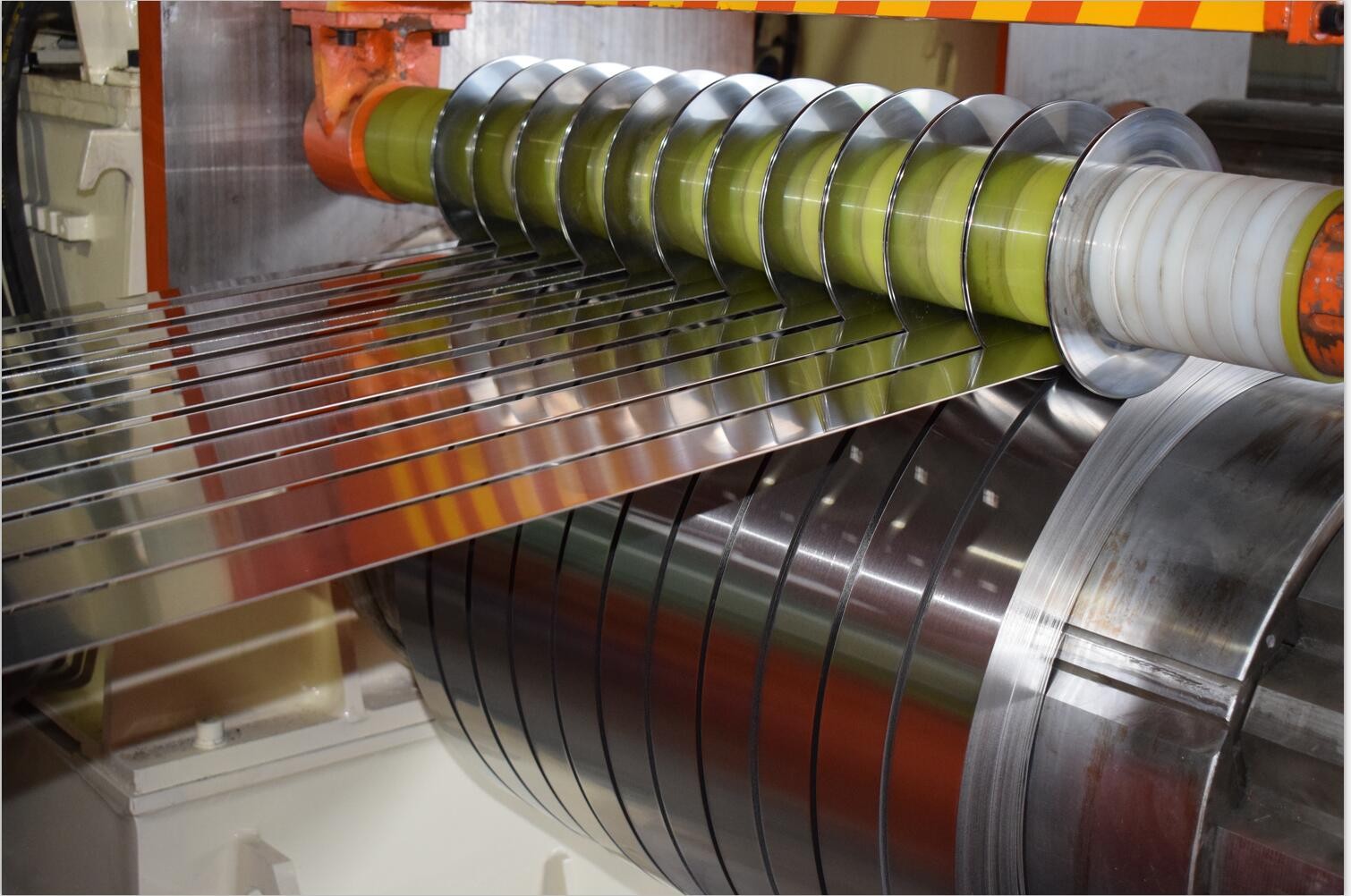

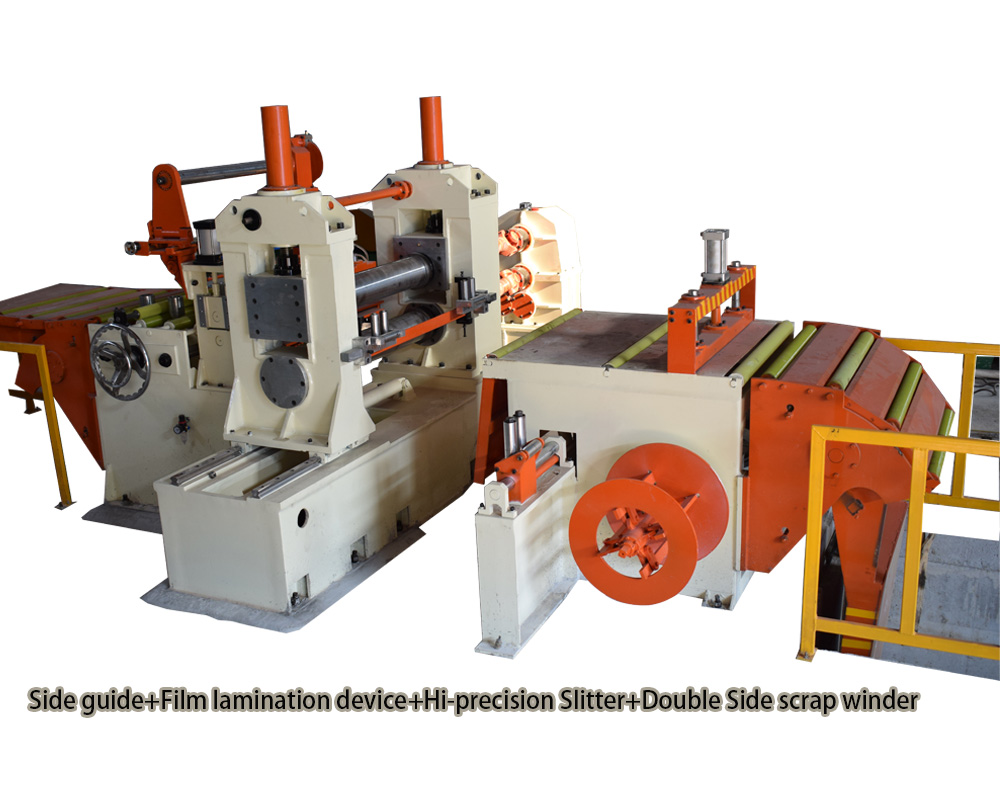

5.Hi precision Slitter                                       1 set

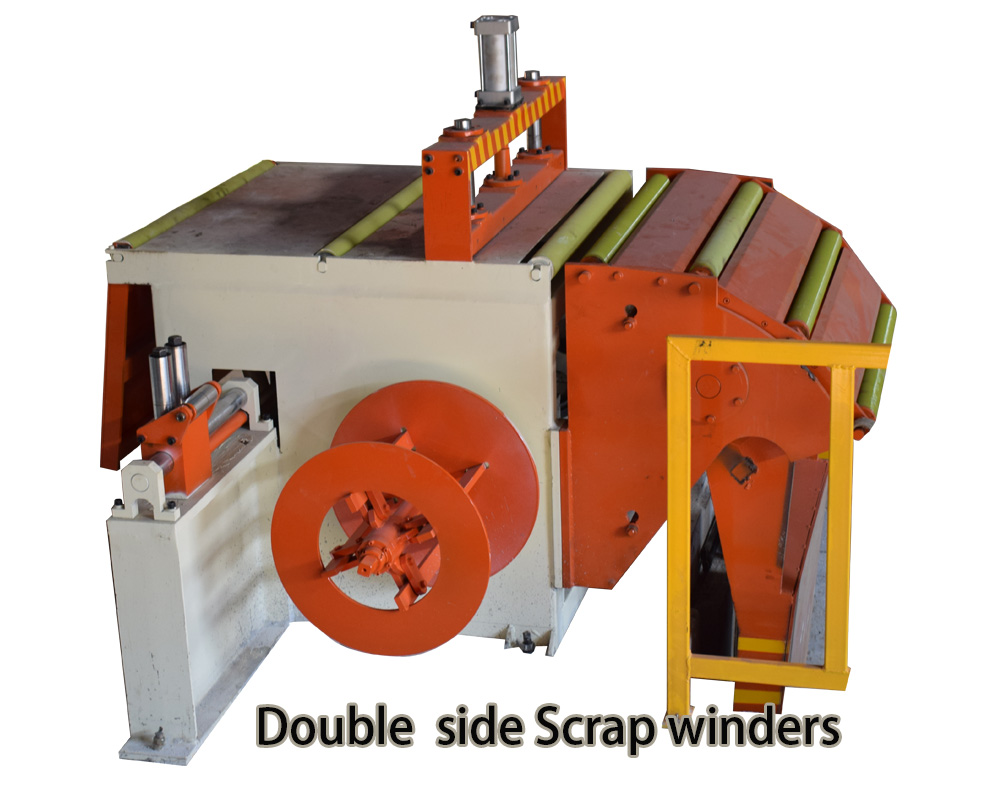

6.Scrap winder                                               1 set

7.Loop bridge2#                                             1 set

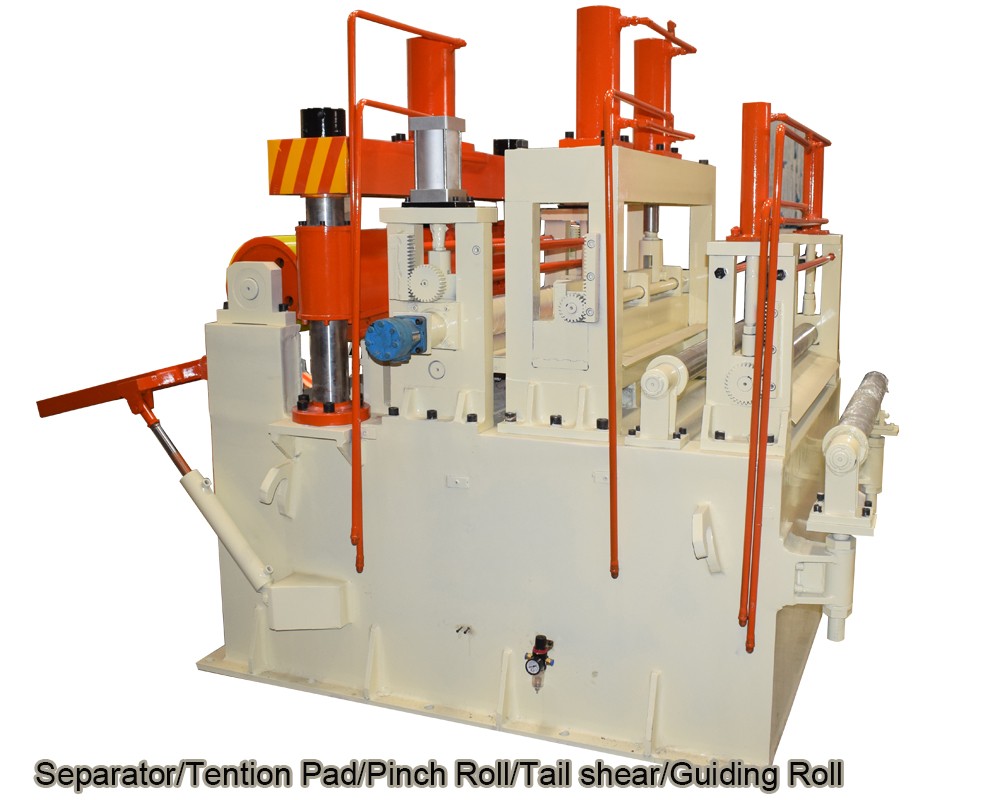

8.Tension table with pinch roll                        1 set

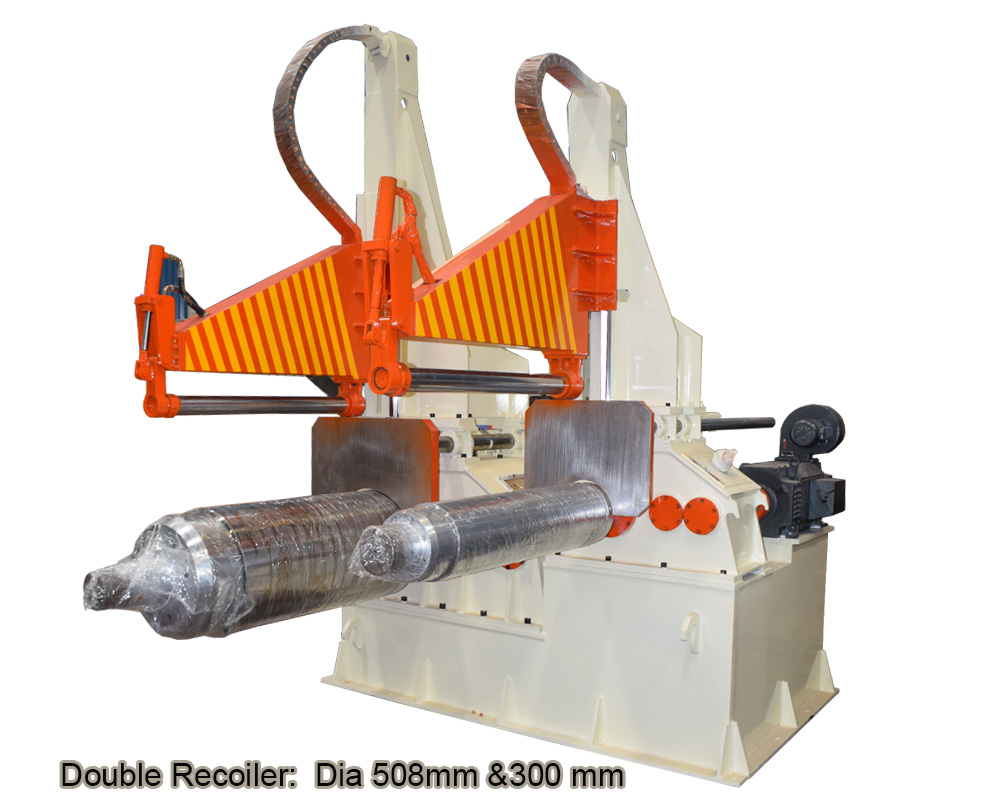

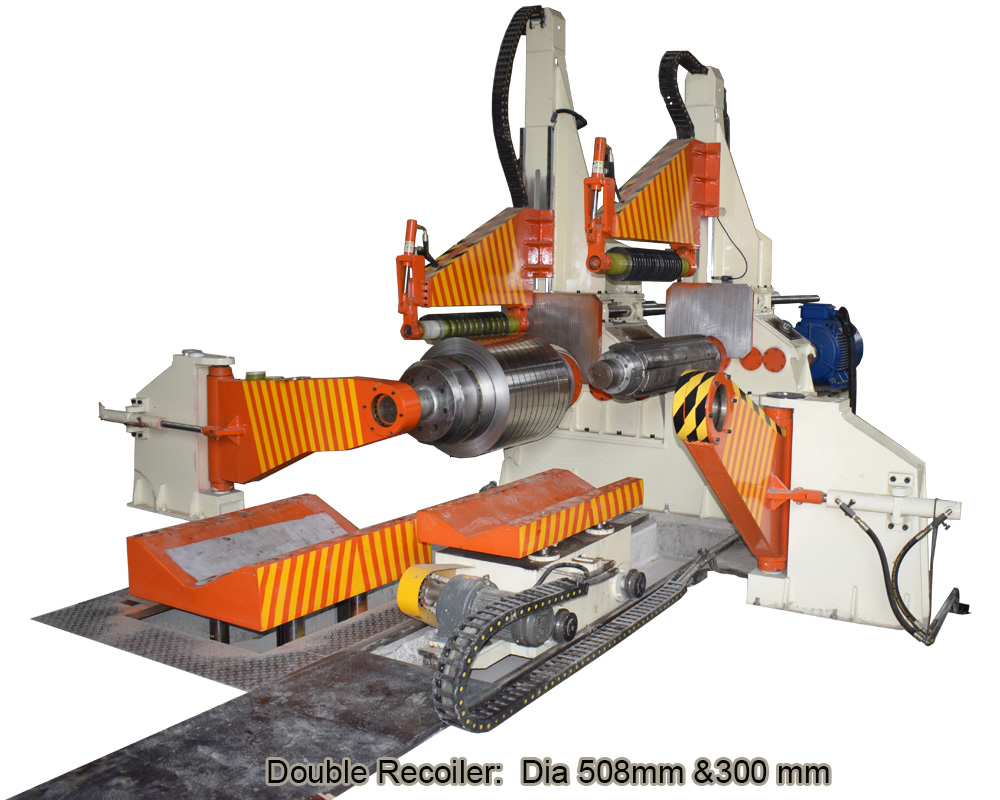

10.Recoiler with separator                             2 set     one for ID 508MM, one for 300 mm

11.Unloading Car                                           1 set

12.Supporting arm                                         1 set

13.Hydraulic system                                      1 set

14.Electronic control system                         1 set

Q1: What kind of machine do you have ?

A1: We three type different machine line and accept customize

a. coil to coil wet or dry type  polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface

b. Sheet to sheet wet or dry type  polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface

c. Hi precision slitting line for cold roll for different width .

d. Cut to length (Stop shear and frying shear ) for cold roll

e. The strip edge trimming machine for deburring +Chamfering +round edge for different steel strip(from 5mm-300 mm)

Q2: How to visit your company?

Our company located in Foshan city ,Guangdong province of China , we can pick you up from Guangzhou Baiyun international airport or any other place in Guangdong province .

Q3:How long will you send the proposal and offer?

A3:We need you provide your material data and your requirement for  machine,then we can give you offer within 2-3 days.

Q4: What is your payment term and lead time?

A4: We usually accept 30% deposit ( the strip edge trimming machine line need 50%), the balance must be paid before shippment ,or 70% is irrevocable LC at sight ; the lead time : we generally need about 90 days after getting deposit .

Q5: How to install the machine and the engineer  fee,and warranty?

A5: We will send one or two engineer to install the machine in customer plant,the customer need bear the visa fee/flight ticket/accommodation during installation ,and give 80 usd subsidy to engineer; installation and training time : it usually need about 10-25 days with the cooperation  from customer  ,depend on the size of machine .
