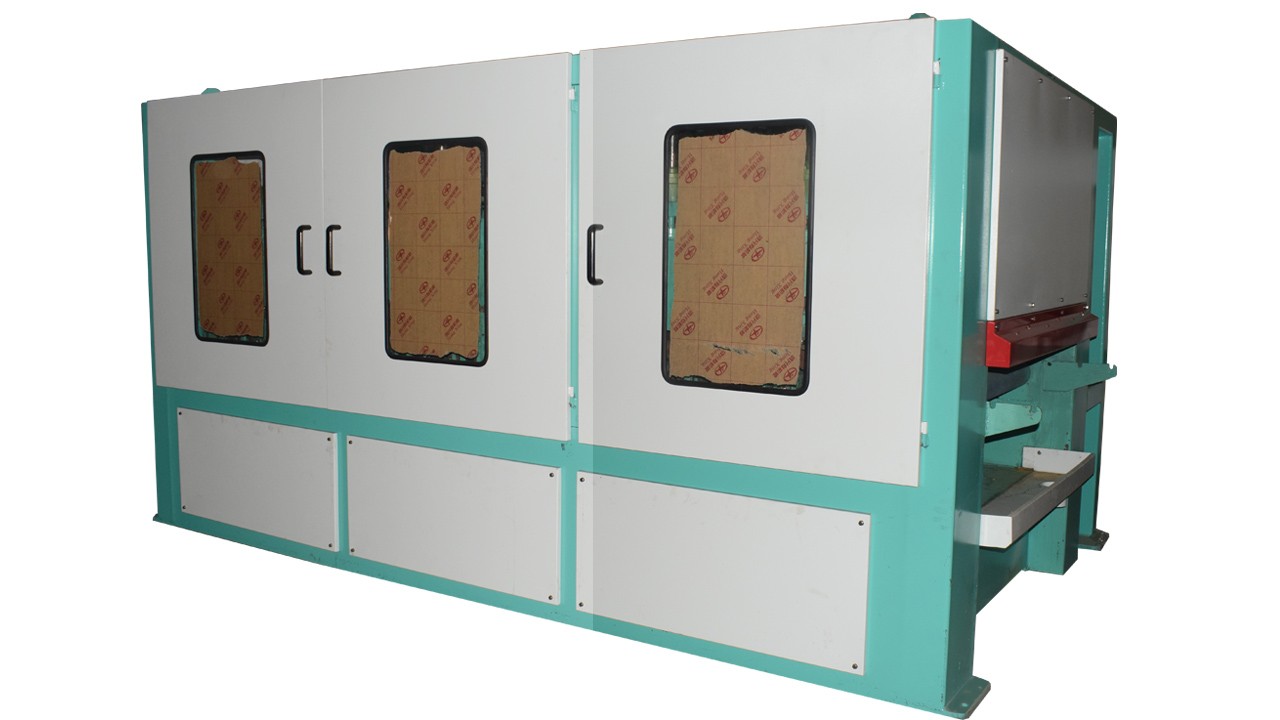

1300 Type 6 Brushing roller machine

Polishing name: 1300 Type 6 Brushing roller machine
Proceeding Way: Sheet or coil ,Wet or dry
Qty of brushing roller:   6 pcs
Maximum witdh of sheet or coil: 300-1250 mm
Thickness for stainless steel	0.3-3 mm( Standard)
Feeding speed	0-50 M/min(Adjustable )
Main Power:	11KW*6+3KW transfer motor
Dia of working roll:Dia300mm
Speed of Brushing roller:	700-1500 Round/Min
Dust absorption-dry polishing: 40003/H
Filter flow-wet polishing: 250 L/min
Working heigh:920MM for sheet polishing ,

LHY-BR1300WG-6 brushing roll

Technical Parameter

1.Raw material:

a.Stainless steel sheet : 430,439,445,304,316,200 series

b.Sheet surface:2B and BA surface

c.Sheet width: 200-1250 mm. max sheet: 1250*4000mm/6000mm

d.thickness of sheet:0.3-3mm.

2.Finished product parameters:

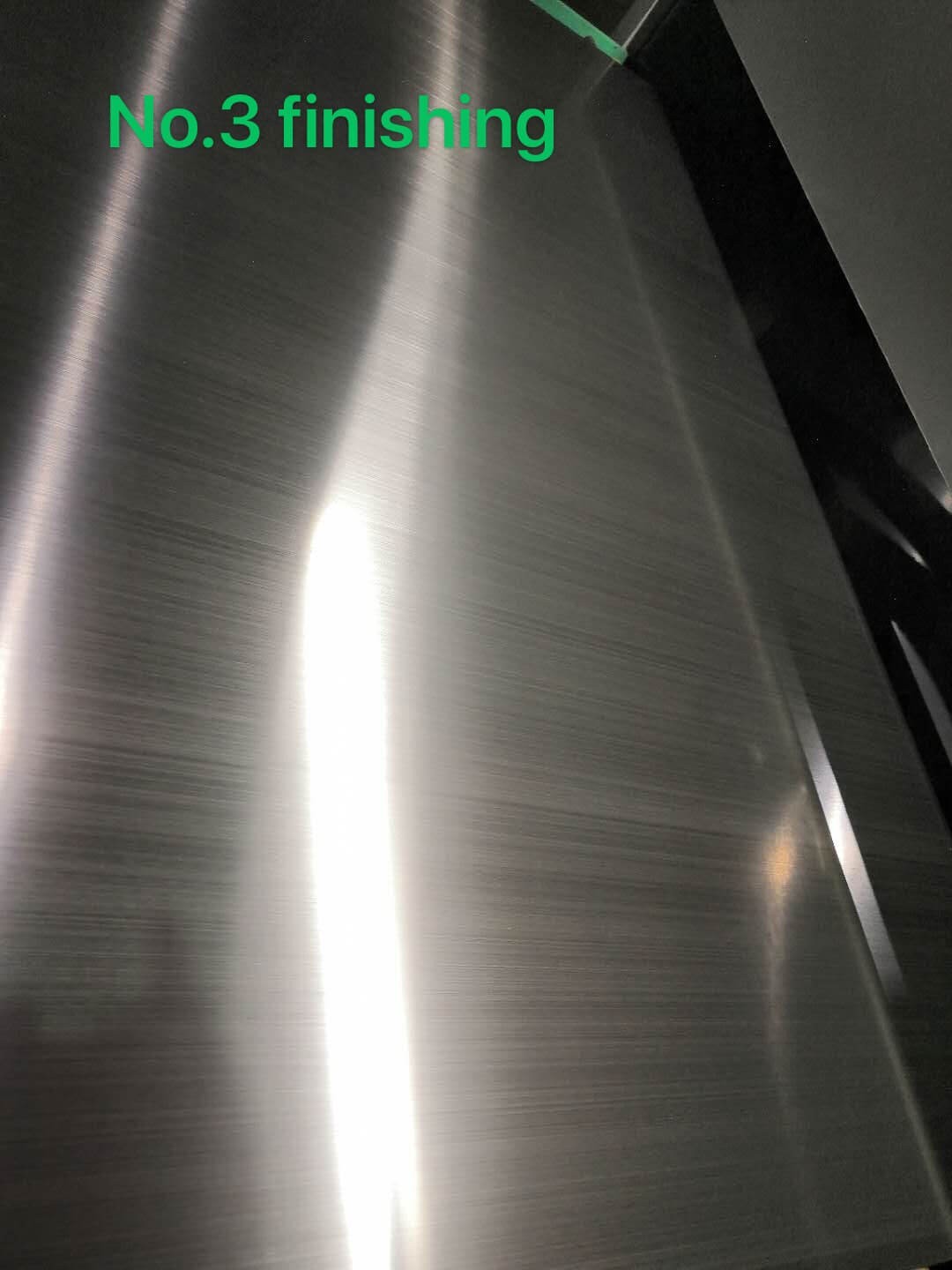

Surface of stainless steel sheet:Hairline (dependiing grit of abrasive belt 120#/150#/180#/220#/320# grit)

3. Machine Feature

1. Frame material:

Our company uses high-quality suppliers that have passed ISO9001 or CE certification

The water tank and waterproof plate of the model are made of 304 stainless steel and are in contact with the water.

Surface sanding and chrome plating of contact parts

All machine frames are made of steel structure welded, with high temperature stress relief and surface polishing.Sanding, primer and topcoat spraying.

2. Standard Function:

Use the abrasive belt and speed, and adjust the mesh number of the abrasive belt to adjust the depth of the silk pattern.

Use the cylinder to tighten the abrasive belt

3. Brushing roller:

Use 3M or HERMES brand customized non-woven fiber polishing sticks

Each polishing roller adopts strict factory accuracy requirements

Achieve smooth and perfect processing surfaces even during high-speed production

4.:Working Motor:Only use high-quality domestic Jiangsheng brand or customer-specified brand motors

Determine the motor power according to the type of processing

5.HMI and PLC

Siemens or customer-specified brand PLC system, all models of water tanks and waterproof panels use Schneider or other brand electrical components

Automatic oil mist lubrication system for grinding bearings

6. Electric Cabinet:

Main switch controls the entire line power supply

The host computer corresponds to the electrical cabinet, making it easy to assemble or repair.

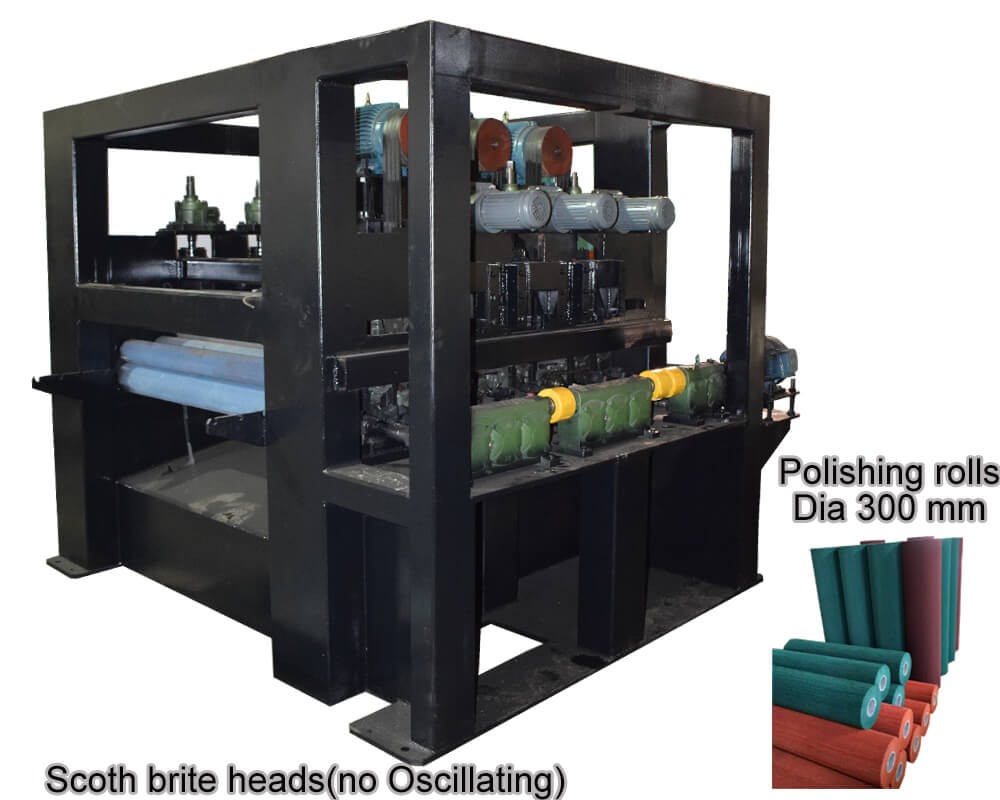

Scoth brite machine .jpg

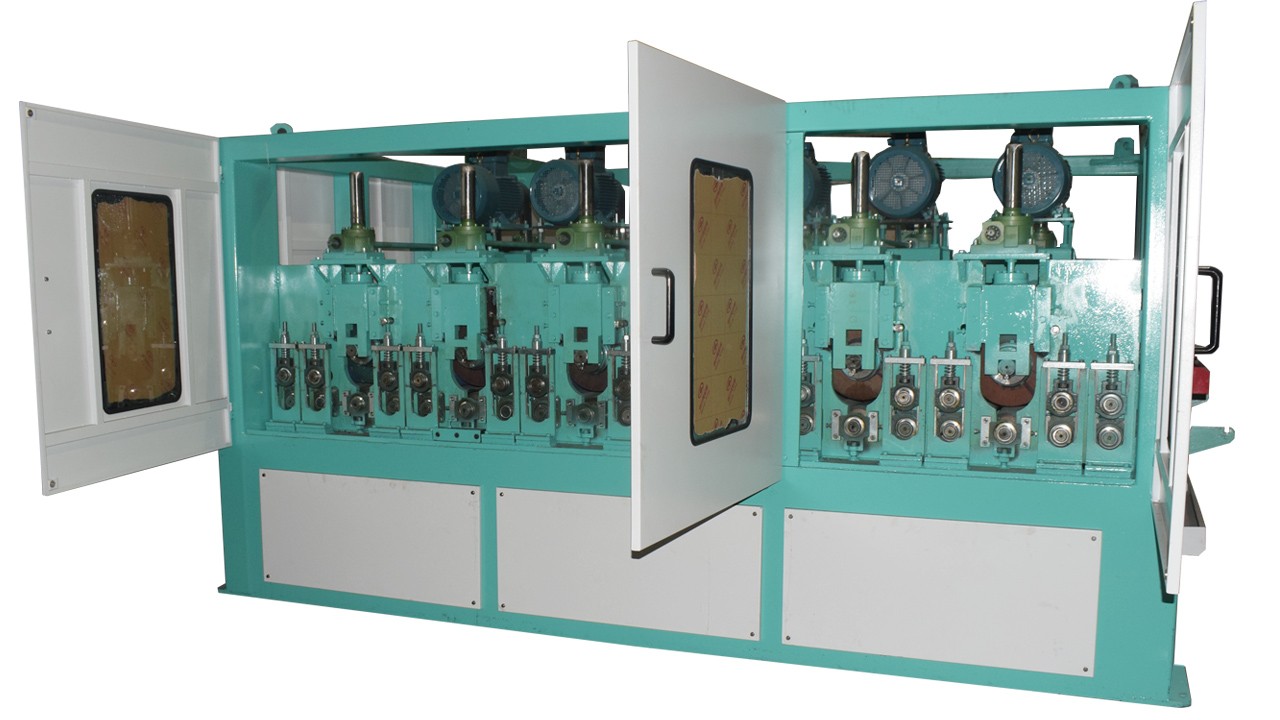

brusihing roll machine .jpg

1600 wet oil type polishing and grinding machine with automatic loading and unloading machine

Q1: What kind of machine do you have ?

A1: We three type different machine line and accept customize

a. coil to coil wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface

b. Sheet to sheet wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface

c. Hi precision slitting line for cold roll for different width .

d. Cut to length (Stop shear and frying shear ) for cold roll

e. The strip edge trimming machine for deburring +Chamfering +round edge for different steel strip(from 5mm-300 mm)

Q2: How to visit your company?

Our company located in Foshan city ,Guangdong province of China , we can pick you up from Guangzhou Baiyun international airport or any other place in Guangdong province .

Q3:How long will you send the proposal and offer?

A3:We need you provide your material data and your requirement for machine,then we can give you offer within 2-3 days.

Q4: What is your payment term and lead time?

A4: We usually accept 30% deposit ( the strip edge trimming machine line need 50%), the balance must be paid before shippment ,or 70% is irrevocable LC at sight ; the lead time : we generally need about 90 days after getting deposit .

Q5: How to install the machine and the engineer fee,and warranty?

A5: We will send one or two engineer to install the machine in customer plant,the customer need bear the visa fee/flight ticket/accommodation during installation ,and give 80 usd subsidy to engineer; installation and training time : it usually need about 10-25 days with the cooperation from customer ,depend on the size of machine .
