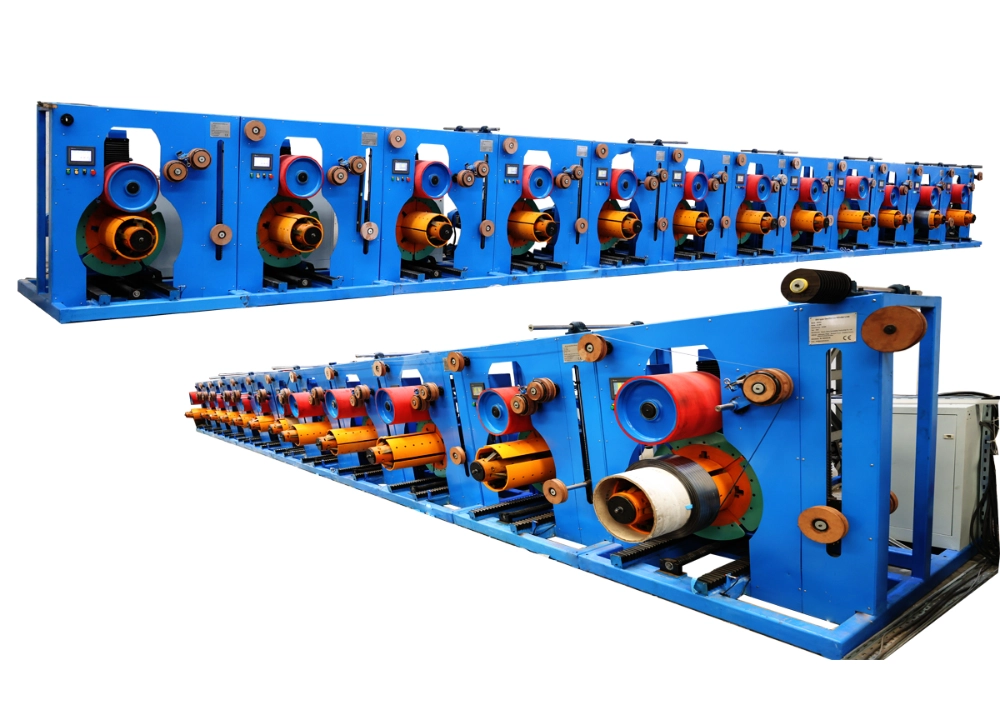

Engineered for high-efficiency metal strip and cable processing, our 12-Head Oscillating Traverse Winder (800 Type) delivers unmatched precision in multi-spool recoiling. Driven by an advanced PLC and servo motor system, each winding unit ensures perfectly synchronized traversing and consistent tension control. With a heavy-duty loading capacity of 800 kg per shaft, this multiple traverse recoiler line is the ultimate take-up solution for high-speed edge trimming and slitting operations.
Key Advantages:
Independent Servo Control: Precise ball screw traverse mechanism.
Smart Tension System: Dancer roll with linear sensor feedback.
Heavy-Duty Capacity: 800kg per spool with expanding mandrel.

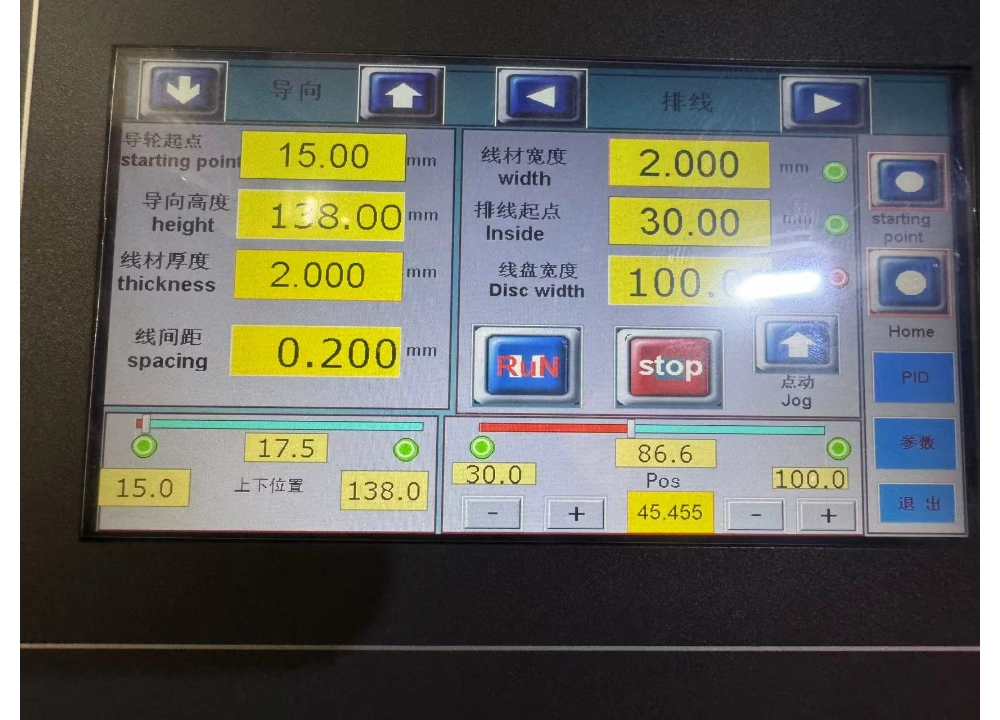

User-Friendly: 7-inch HMI touch screen operation.
See also: 800 Type Strip Oscillating Traverse Winder and Four modular strip edge trimming line with oscillating winder. For more options, visit our oscillating winder collection.
Description

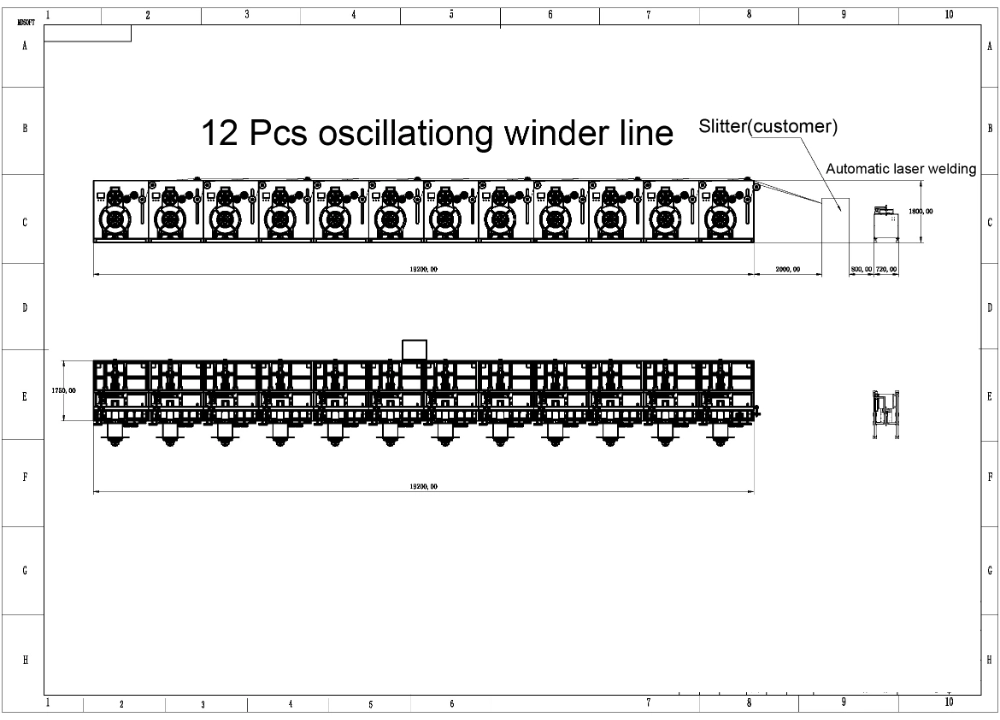

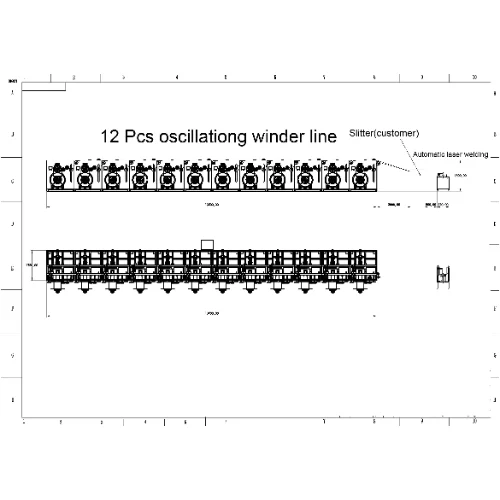

Overview of the Multiple Traverse Winding System

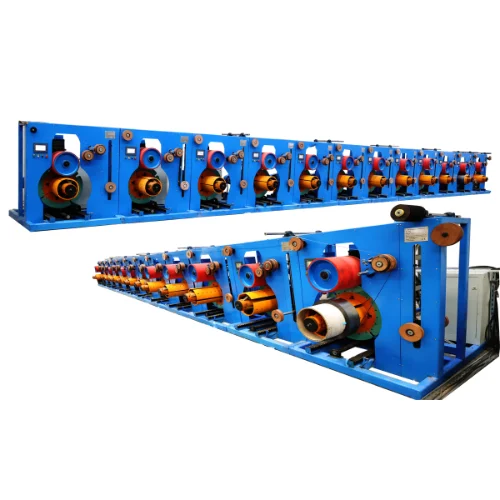

The 800 Type 12-Head Oscillating Winding Line is designed to meet the rigorous demands of modern steel strip and cable manufacturing. By integrating a heavy-duty base frame with cutting-edge servo technology, this multi-head traverse spooler guarantees
uniform coil density, neat edge alignment, and minimal operator intervention.

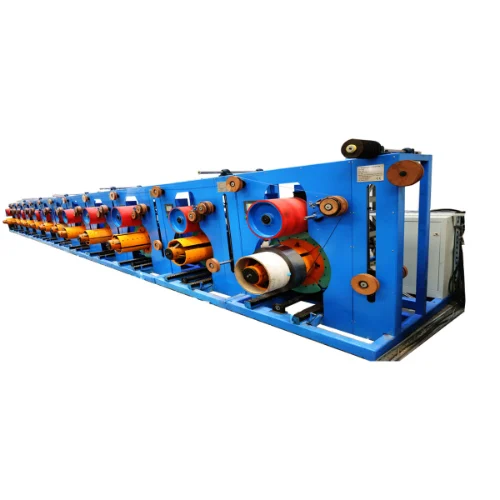

Main Structural Features
Robust Base & Moving Frame: Constructed from premium-grade steel and welded with CO2 gas shielding, followed by professional aging treatment for maximum structural stability. The moving frame slides on high-precision linear guides, driven by a ball screw for smooth reciprocating motion.
High-Precision Traverse Mechanism: Equipped with industrial-grade 45# linear guides and ball screws. The traverse movement is directly powered by a dedicated servo motor, ensuring exact pitch control and flawless oscillating winding.
Reliable Transmission System: Power is efficiently transferred from the main servo motor through a premium speed reducer and pulley system to the main shaft, ultimately driving the spool via a rigid coupling plate.
Advanced Tension Control: Features a dynamic dancer roll (accumulator) system. A linear displacement sensor continuously monitors the position of the dancer roll, feeding data to the PLC to automatically adjust the recoiler’s rotational speed, maintaining constant tension.
Intelligent Electrical Control: Fully integrated with high-performance servo drivers and a central PLC. This architecture allows for stepless speed regulation of both the main driving motor and the traverse servo motor, easily managed via the intuitive 7-inch touch screen.
Technical Specifications
| Item | Specification / Parameter |
| Spool Mounting Type | Expanding mandrel type (Suitable for 800mm spools) |
| Applicable Spool Dimensions | Flange Dia.: Φ800 mm Core Dia.: 300-400 mm (Adjustable) Paper Core Width: Max. 400 mm (Baffle plate used for widths < 8mm, Inner hole 400mm) |
| Spool Center Height | 800 mm |
| Max. Load per Shaft | 800 kg |
| Take-up Power | Servo Motor |
| Traverse (Oscillating) Method | Servo motor + Ball screw mechanism |
| Traverse Guide Rail | 45# Linear Guide |
| Operation Interface | 7-inch Touch Screen & Button control |
| Line Speed | 0 – 150 m/min (Stepless adjustable) |
| Meter Counter Accuracy | < 3‰ |
| Effective Traverse Distance | 600 mm |
