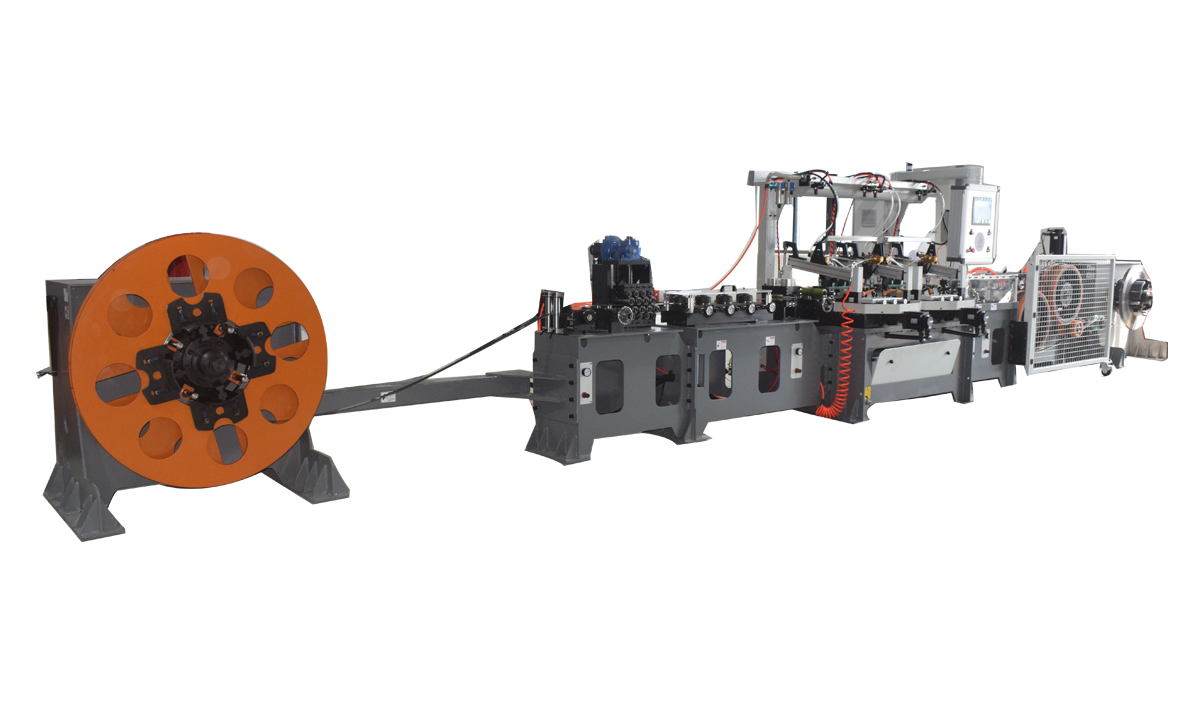

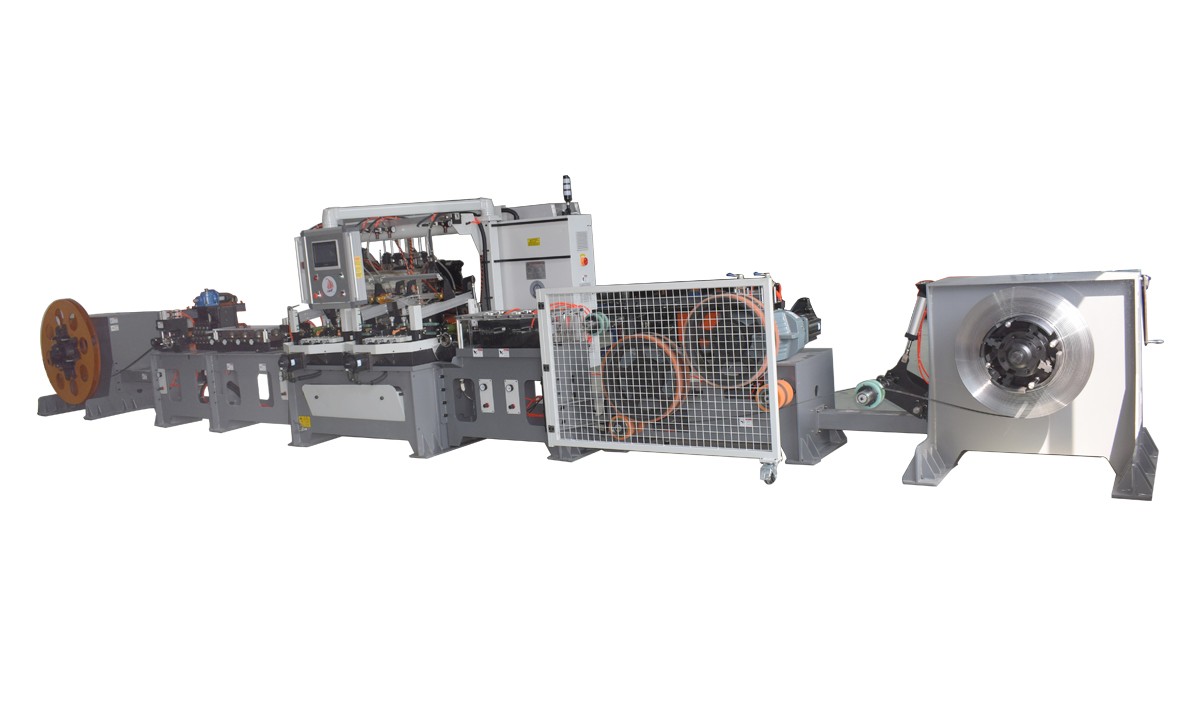

Two group automatic strip trimming machine for deburring and chamfering and round edge machine

1

Recoiler

WXSJ-400/1200GR87Y75

1 Set

The maximum load-bearing capacity is 0.4T, manual mechanical diameter reduction, servo drive, including rewind and brake functions.

2

Strip tension S-roll adjustment system

WXSG-GFAF87Y75P2

1 Set

Synchronous drive of double frequency conversion geared motor

3

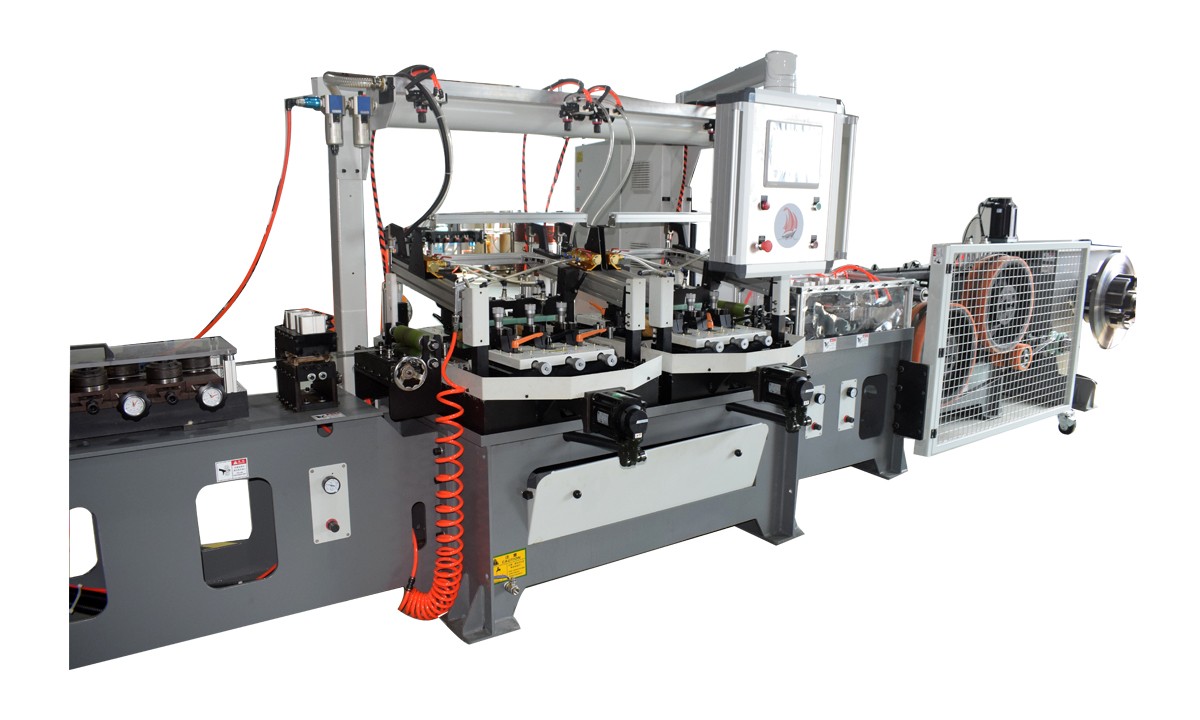

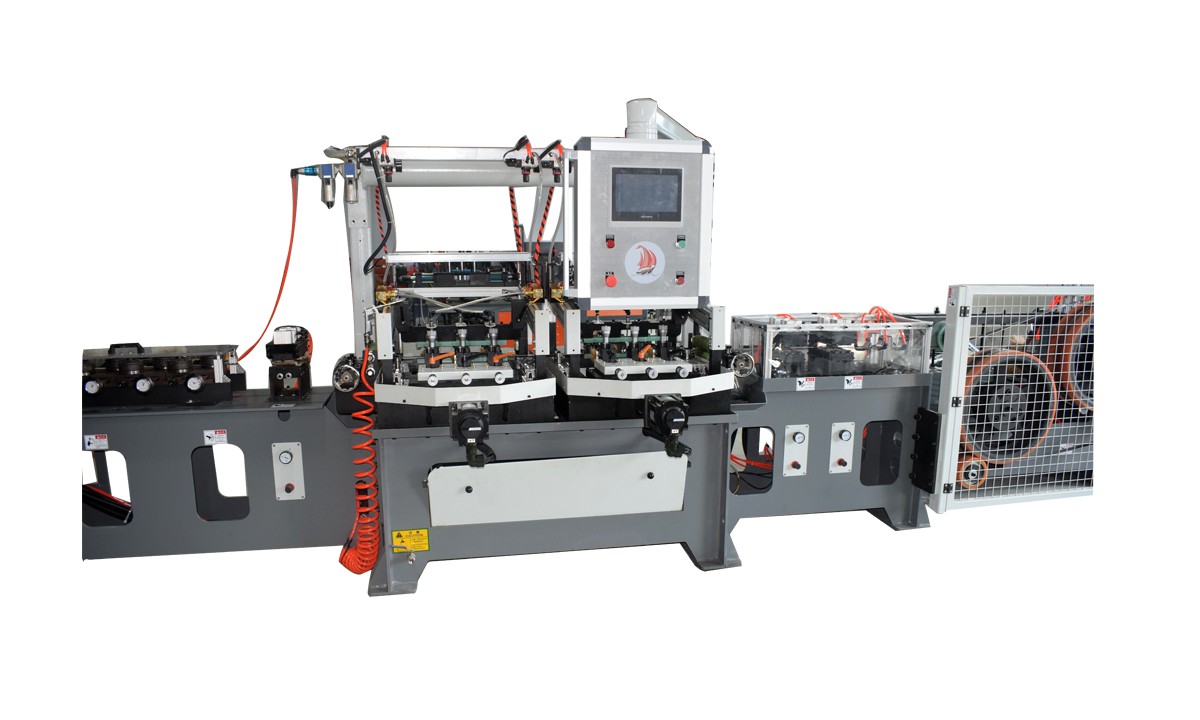

Metal strip automatic trimming mechanism - 2 groups of modular

QB-ZD2Z-3/6-6/6

1 Set

Servo automatic tool advance/retract, latest high-precision trimming module, coolant shortage automatic replenishment system frame.

4

Wide face

Camber straightening module A

WXXZ-40H

1 Set

Thickness 0.4-2.0MM (the wheel can be adjusted to a maximum width of 100mm)

Can realize width adjustment up to 40MM

5

Plane Guide Leveling Module B-F Mechanism

WXXP-40Q-10H

1 Set

The thickness is 0.4-2.0MM and the maximum width is 40MM. The main function is to prevent blade damage caused by the bending of the material head. It is driven by servo.

6

Steel strip argon arc splicing grinding mobile platform

WXAW-1YD

The upper layer is a manual spot welding platform for argon arc welding, and the lower layer is a manual polishing steel strip platform.

7

Decoiler

WXKJ-400/1200GR67Y30

1 Set

The maximum load-bearing capacity is 0.4T, manual mechanical diameter reduction, servo drive, including rewind and brake functions.

8

AK-2 group control system

AK-2Z-ZD

1 Set

Auotomatic

9

Intelligent strip trimming central control system-HMI

V1.0

1 Set

                             Total:

1*40HQ

Equipment manufacturing process and parameters:

Strip material: Hardened and tempered steel strips, Cold roll strip ,Stanless steel strip and son on

              According to DIN EN 10140 - fine

Tensile strength :    1000-1600N/mm²

Width of strip range :    10-80mm

Thickness:    0.3-2.0 mm

Finished edge : Round edge . the Torelance for trimming edge is :5 C (0.05mm)

Speed for trimming strip :    0-130m/min adjustable speed, strip trimming speed depends on material characteristics and trimming edge effect requirements

Electricity :    380V,50Hz,DS (According to customer requirement)

Controller voltage : 220V,50Hz,WS

The electromagnetic valve :    24V-GS

The Total Machine power:   about 24 KW

Direction :    from Left to Right.

Occupied area :W11.0*D1.5*H1.6 M

Working height for trimming strip:  800- 1000mm

Color:     PD5337 Orange  + P-7503 Grey

Cooling type :The latest automatic coolant supply system, liquid cooling (360° adjustable nozzle)

Strip size:    Inner Idia: 400mm±20,Max OD:1200mm.

Knives for trimming:Each group can be equipped with 3 or 6 trimming tools, up to 12 trimming tools can be transferred

Scrap collection: With drawer type scrap collection box

Trimming tool(blade): The trimming tool adopts general-purpose carbide blades and round-edged customized carbide blades.The angle of the edge or slotting is required. The blade seat can be rotated to adjust the angle. The method of trimming or slotting is Gradually feed type.

Trimming Shape for stripe: steel strip edges are deburred, chamfered and rounded.

Other matters: According to design and technical needs and market product supply, Supplier can make adjustments to the above-mentioned equipment accessories

Make changes to the brand and structure of the company without prior notice to Customer.
