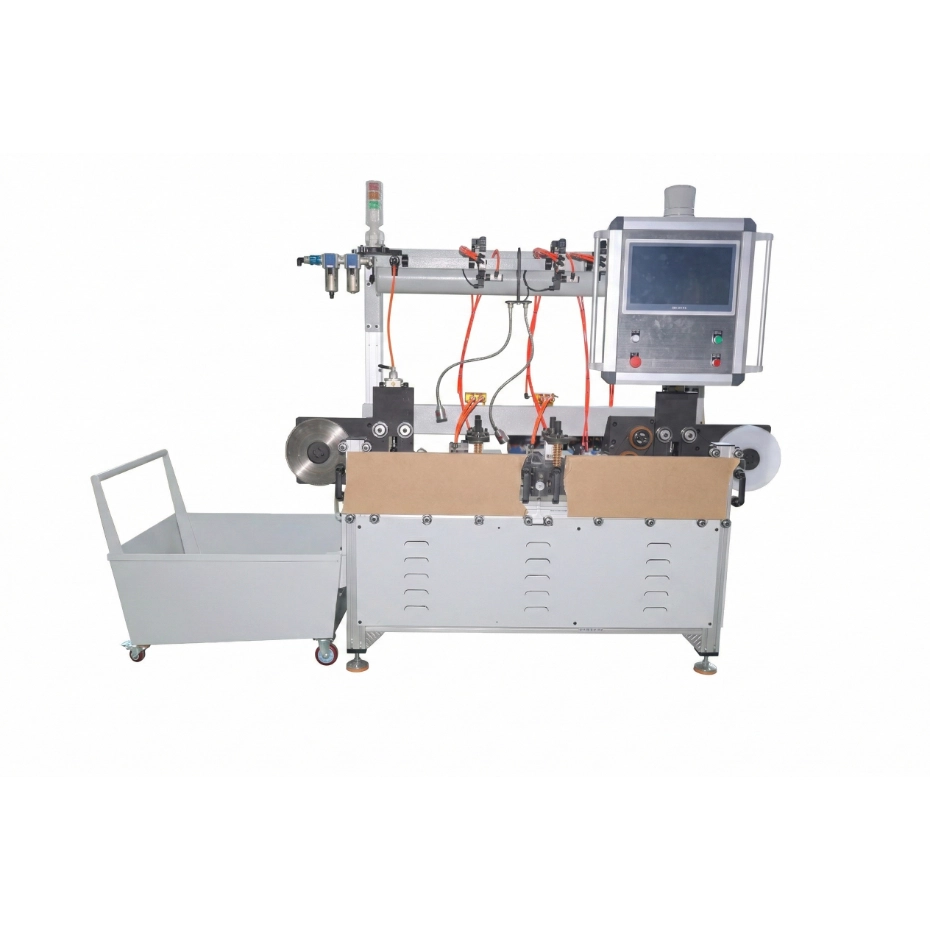

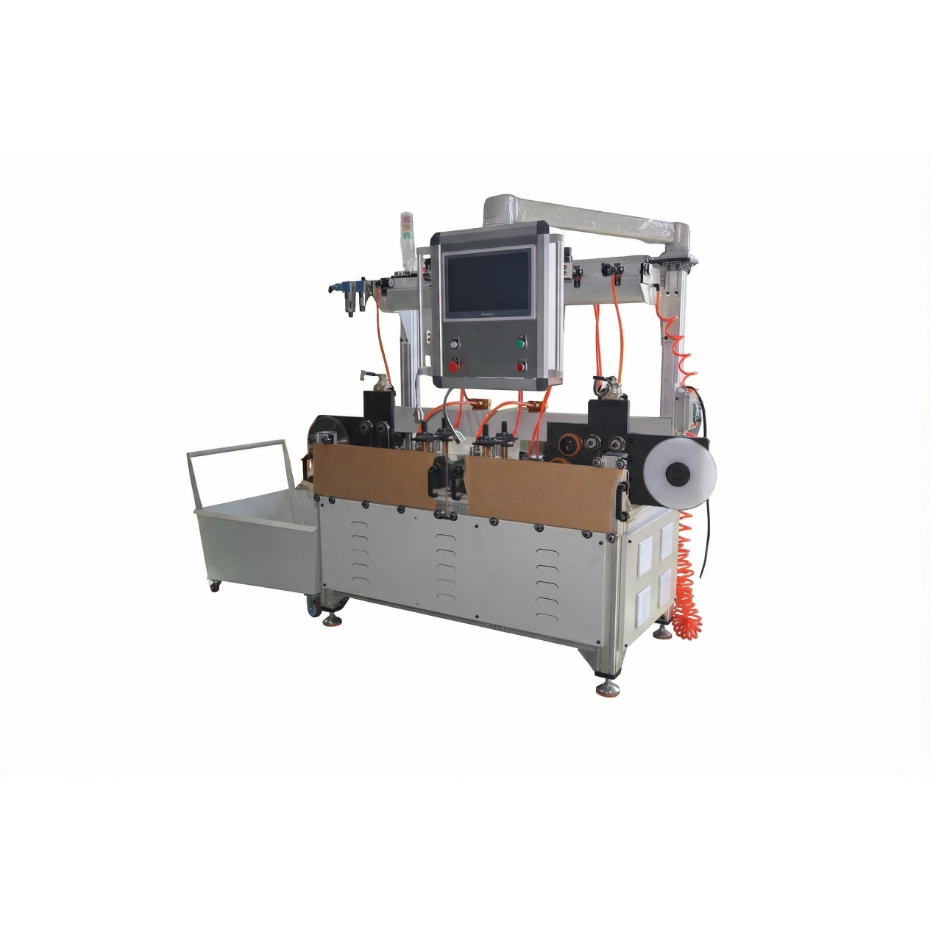

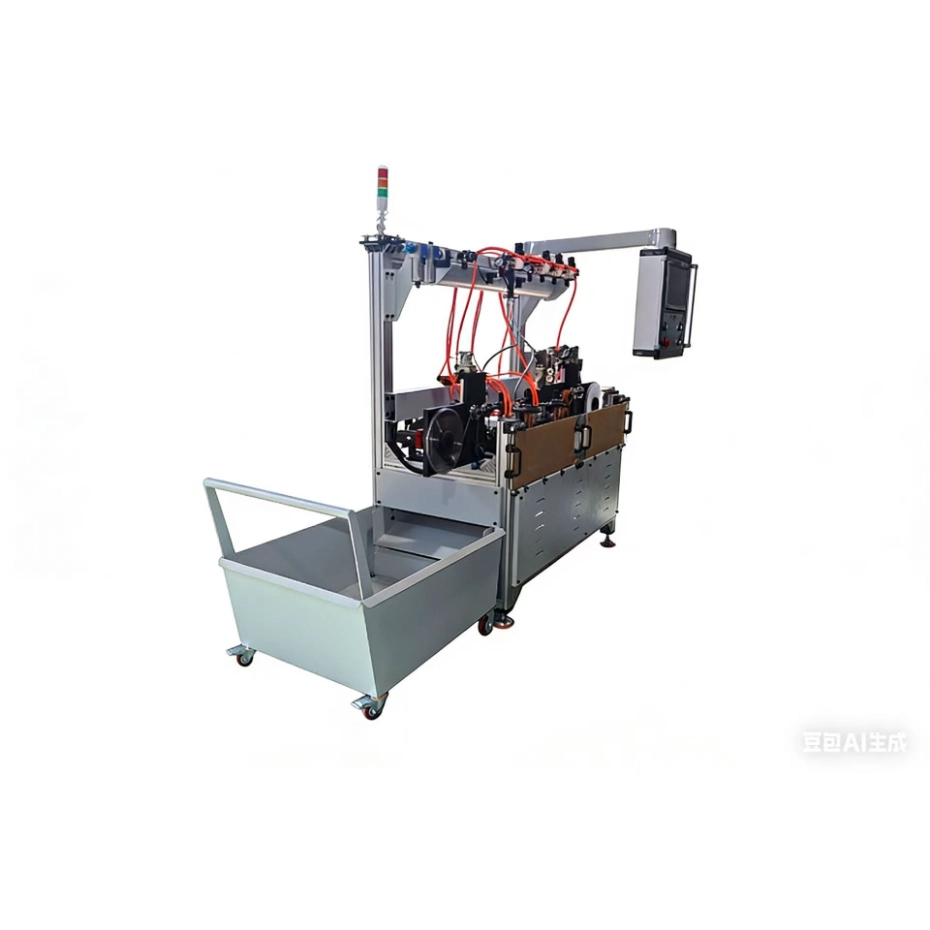

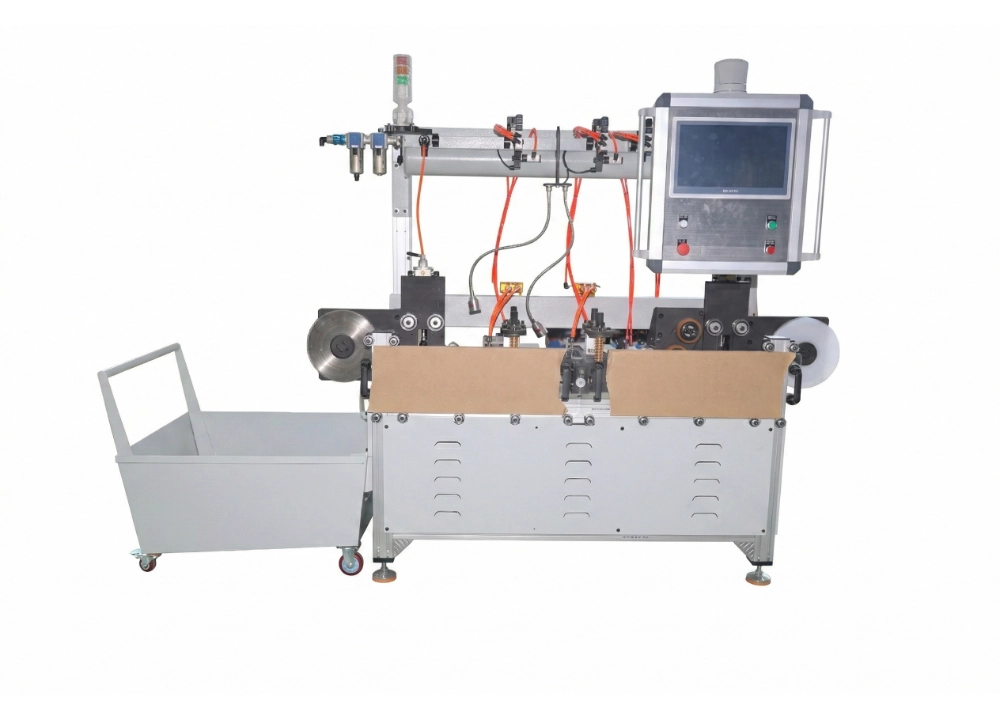

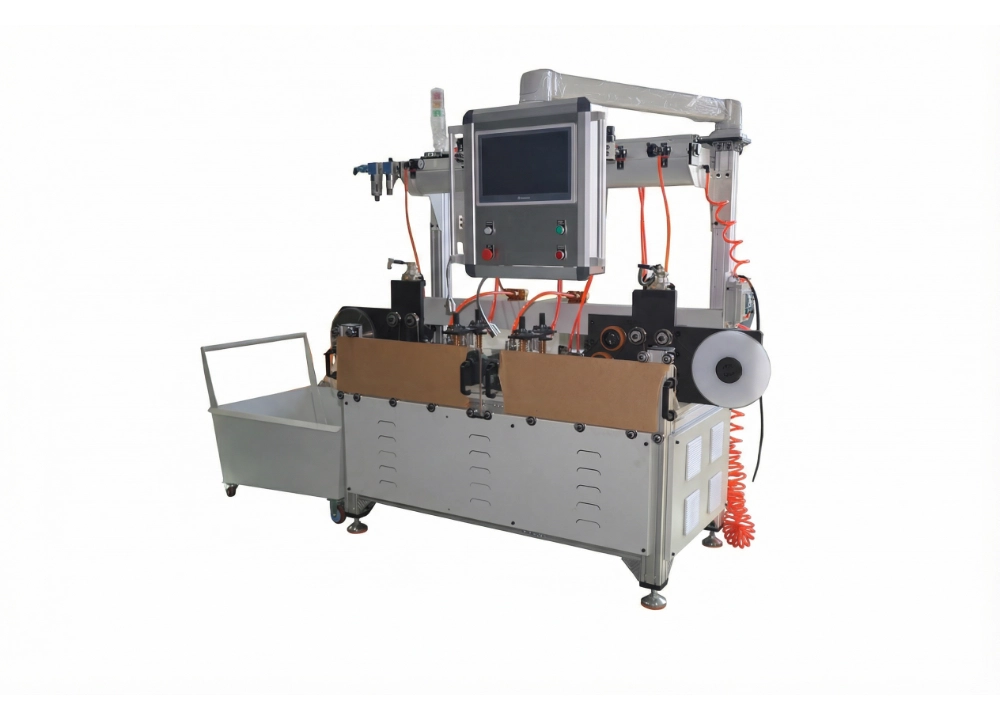

Ultra-Thin Strip Edge Trimming Machine (0.02-0.15mm Thickness)
- High-Precision Trimming Performance
- CE & ISO International Standards
- Global On-site Installation Support
- Comprehensive Operator Training Programs
- 2-Year Full Machine Warranty
Maximize your strip processing efficiency with our specialized edge conditioning line, delivering smooth, uniform, and burr-free edges for high-tensile materials.
- Strip Width: 5.0 mm – 10.0 mm
- Strip Thickness: 0.02 mm – 0.15 mm
- Tensile Strength: 600 – 1600 N/mm² (Stainless, SK4, High-Carbon)
- Max Speed: 200 m/min (Adjustable)
- Edge Quality: R0.04 – R0.08mm smooth chamfer/round edge
- Cooling System: 360° Adjustable Gas Cooling
Note: Requires continuous coil input for optimal high-speed performance.
Description
High-Precision Steel Narrow Ultra-Thin Strip Edge Trimming Machine | High-Speed Chamfering & Deburring Line
Enhance your metal coil processing capabilities with our state-of-the-art Steel Strip Edge Trimming Machine. Specifically engineered for ultra-thin (0.02 – 0.15 mm) and narrow (5 – 10 mm) metal strips, this advanced edge conditioning line delivers unparalleled accuracy and efficiency. Whether you are dealing with high-carbon steel, stainless steel, or SK4 alloys, our self-developed modular CNC system ensures a perfectly smooth, burr-free micro-chamfer edge at speeds up to 200 m/min.
🚀 Core Advantages & Features
Extreme Precision for Ultra-Thin Strips: Designed to handle delicate materials without stretching or breaking. Perfect for high-tensile metal foils (600-1600 N/mm²).
Micron-Level Chamfering: Customizable carbide inserts achieve a precise and consistent R0.04 – R0.08mm round or chamfered edge, eliminating sharp burrs completely.
High-Speed Stable Production: With a stepless adjustable speed of up to 200 meters per minute, this high-speed edge trimmer maximizes your factory’s output.
Smart 360° Gas Cooling System: Features an adjustable cooling nozzle that significantly reduces cutting heat, extending the lifespan of the trimming tools.
Clean & Efficient Workspace: Built-in drawer-type scrap collection box ensures a tidy environment and easy scrap metal recycling.
🏭 Wide Industry Applications
Our narrow strip edge trimming machines are trusted by top-tier manufacturers across multiple high-precision industries:
Precision Electronics & Batteries: Edge chamfering for battery tabs, lead frames, and internal mobile phone shrapnel.
Cable Armoring: Providing burr-free steel and aluminum tapes to prevent damage to inner cable insulation.
Automotive & Fasteners: Smooth radiused edges for heavy-duty hose clamps, seat tracks, and safety components.
Medical & Aerospace: High-accuracy edge conditioning for specialized ultra-thin alloy coils.
⚙️ Detailed Technical Specifications
Parameter / Specification | Details & Capability |
|---|---|
Material Compatibility | High-Carbon Steel, Stainless Steel, SK4, etc. (Ref: DIN EN 10140 – fine) |
Tensile Strength | 600 – 1600 N/mm² (Reference capacity) |
Strip Width | 5.0 mm – 10.0 mm |
Strip Thickness | 0.02 mm – 0.15 mm |
Coil Input Requirement | Continuous master coil required. No step splicing or sudden breaks allowed. (Note: If breaks are uncontrollable, semi-soft material trimming is recommended). |
Running Speed | 0 – 200 m/min (Stepless adjustable depending on material & edge profile) |
Edge Shape / Quality | Smooth, consistent edge. Chamfer range: R0.04 – R0.08mm (Scratch-free, requires specific blades for different R-angles). |
Trimming Tools | 2 to 4 trimming tools per group. Uses universal and custom round-edge carbide inserts. |
Cooling Method | 360° Adjustable Gas Cooling Nozzle |
Operating Direction | Left to Right |
Spool / Coil Type | Original plastic I-spools / Plastic reels |
Scrap Collection | Integrated drawer-type scrap collection box at the machine base. |
Power Supply (Main) | 380V, 50Hz, DS |
Control Voltage | 220V, 50Hz |
Solenoid Valve | 24V-GS |
Machine Color | 7035 Industrial White (Wrinkle finish) |
Disclaimer: To meet specific engineering needs or adapt to market component availability, the manufacturer reserves the right to upgrade internal brands and structural designs without prior notice.
Ready to upgrade your strip processing line? [Contact our engineering team today] to get a customized technical proposal for your specific metal strip edge trimming requirements.
