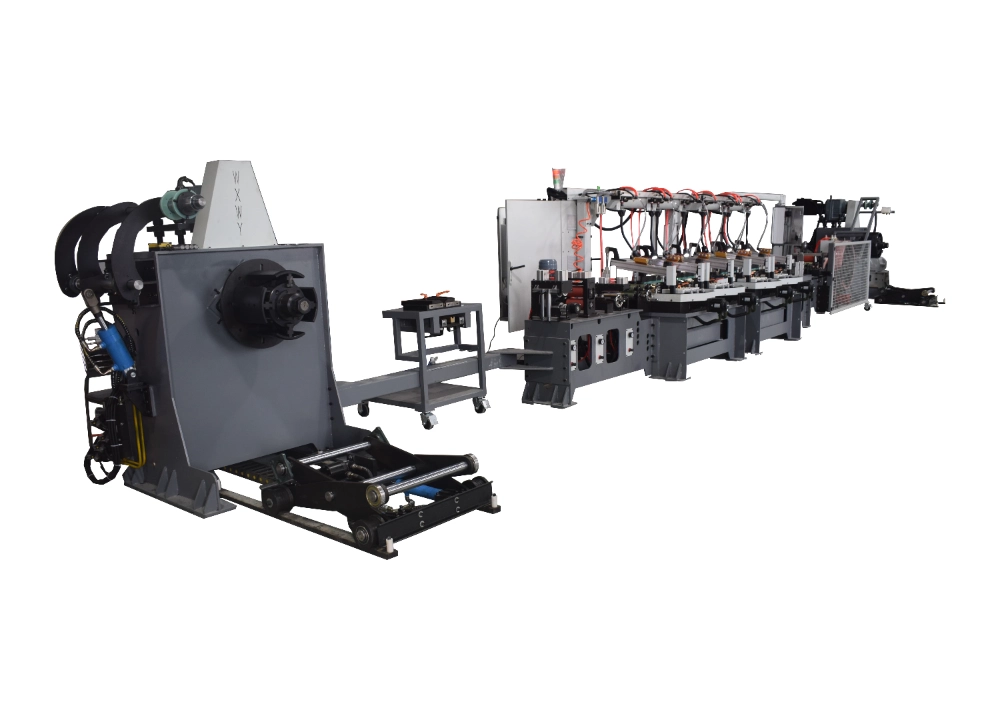

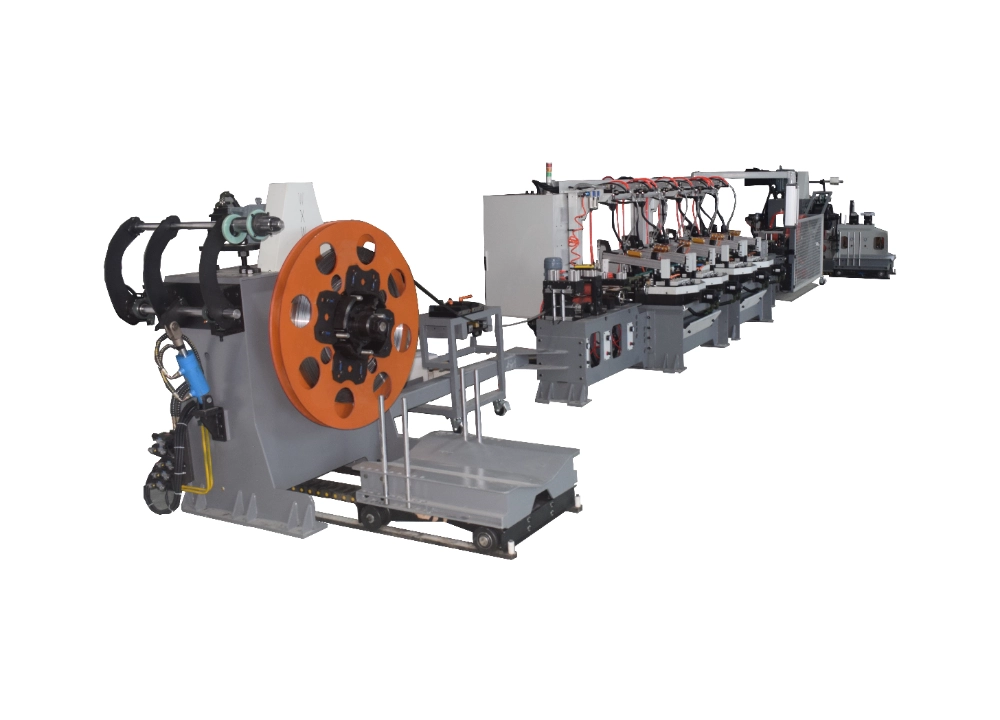

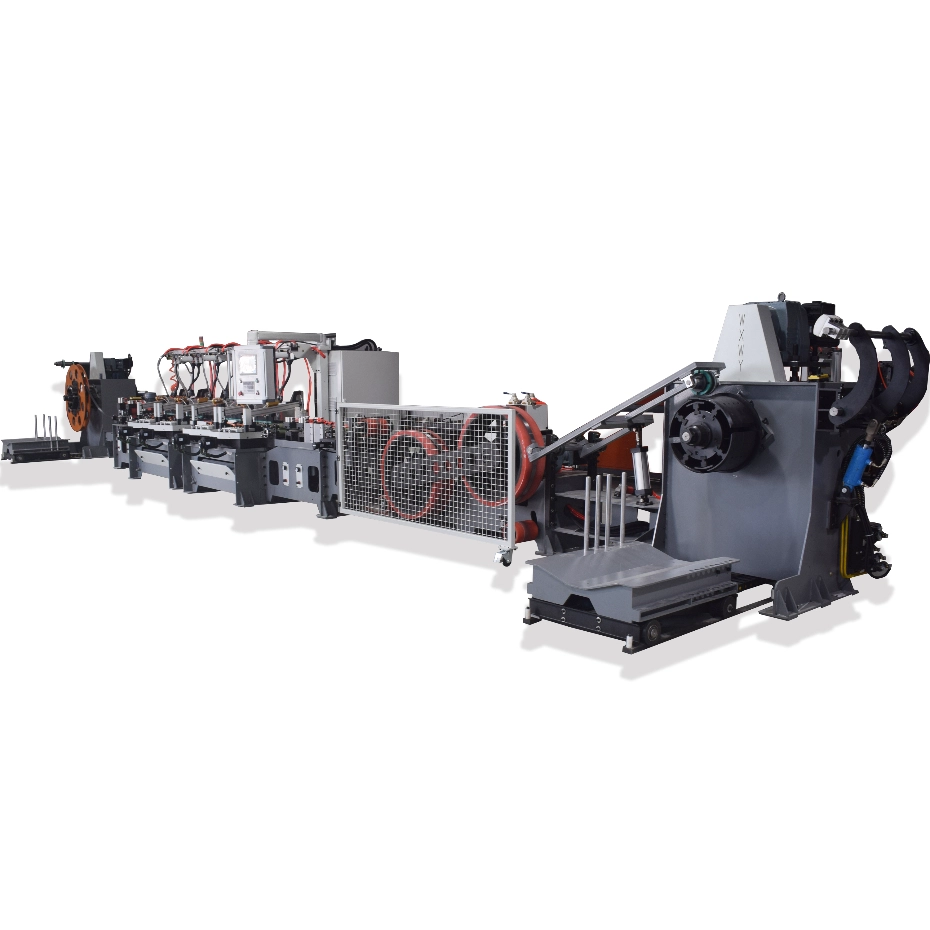

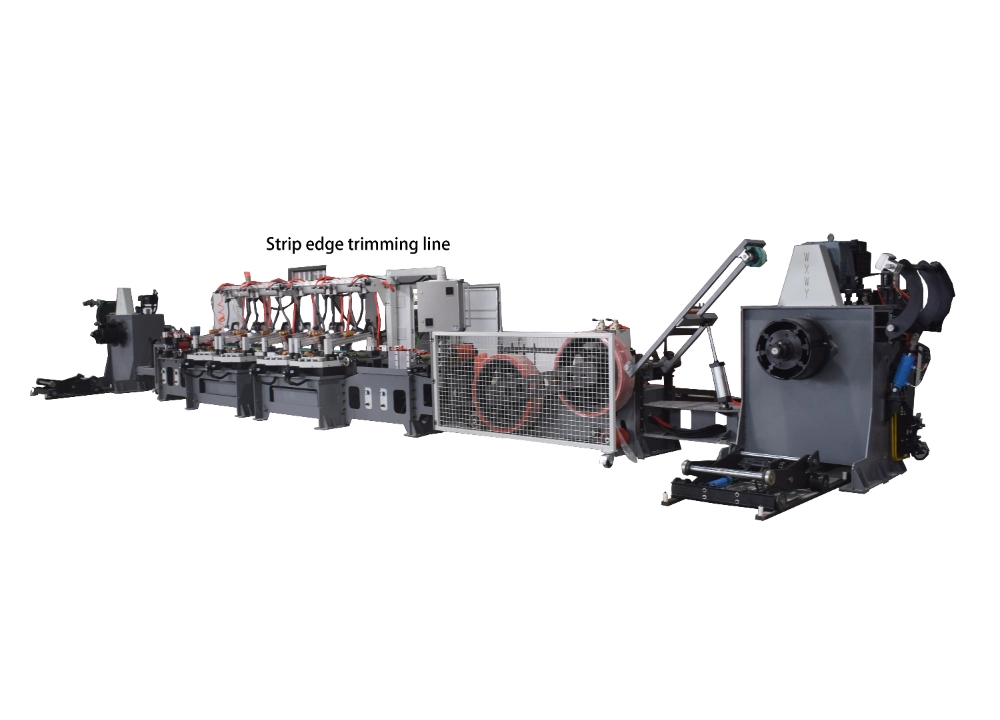

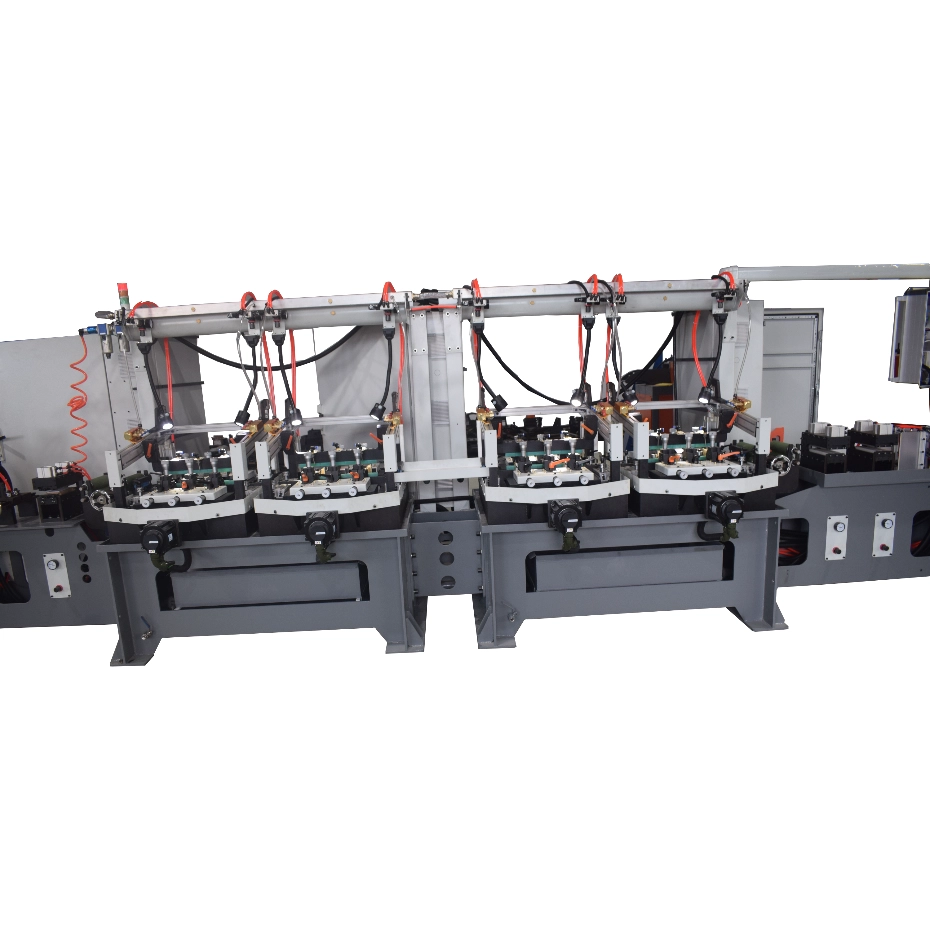

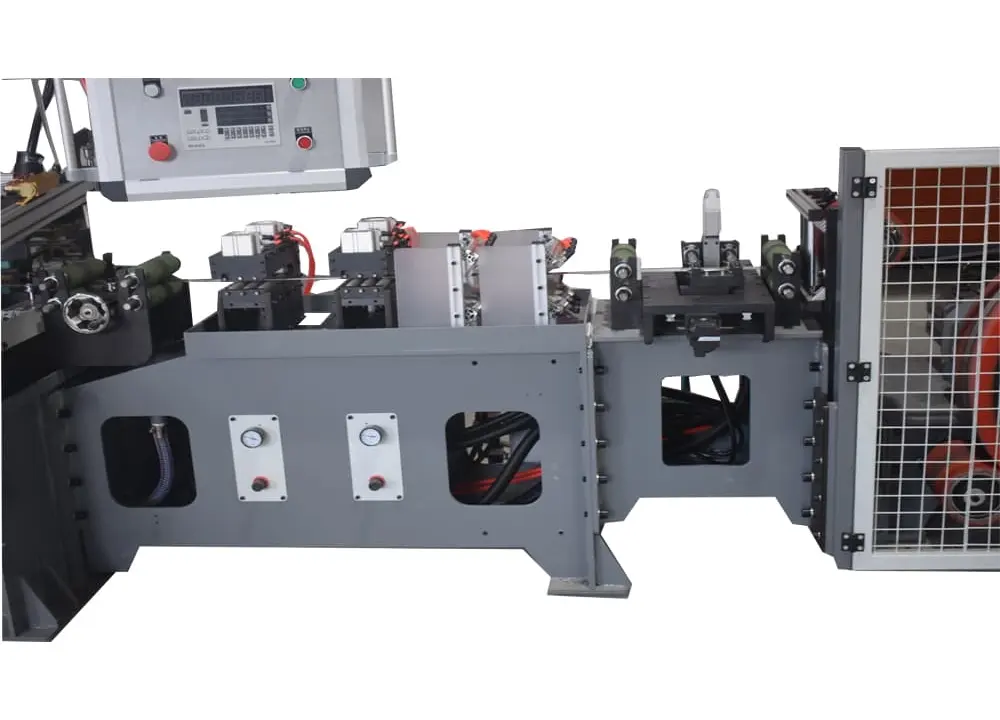

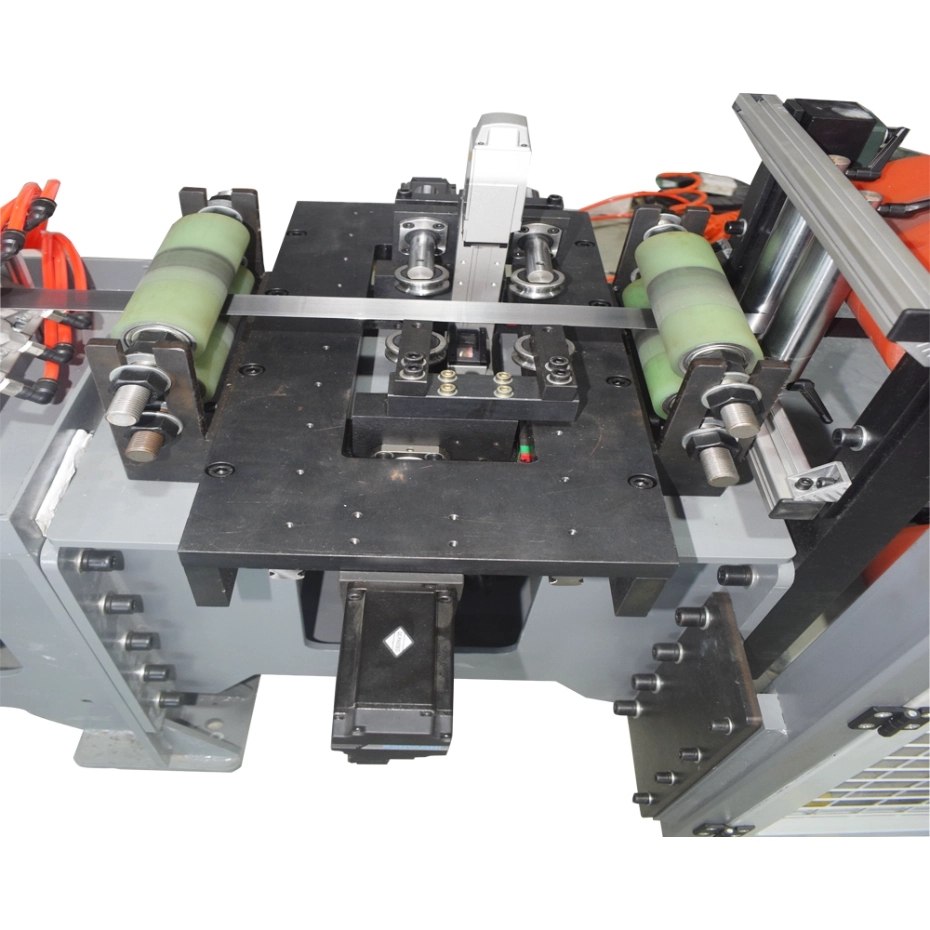

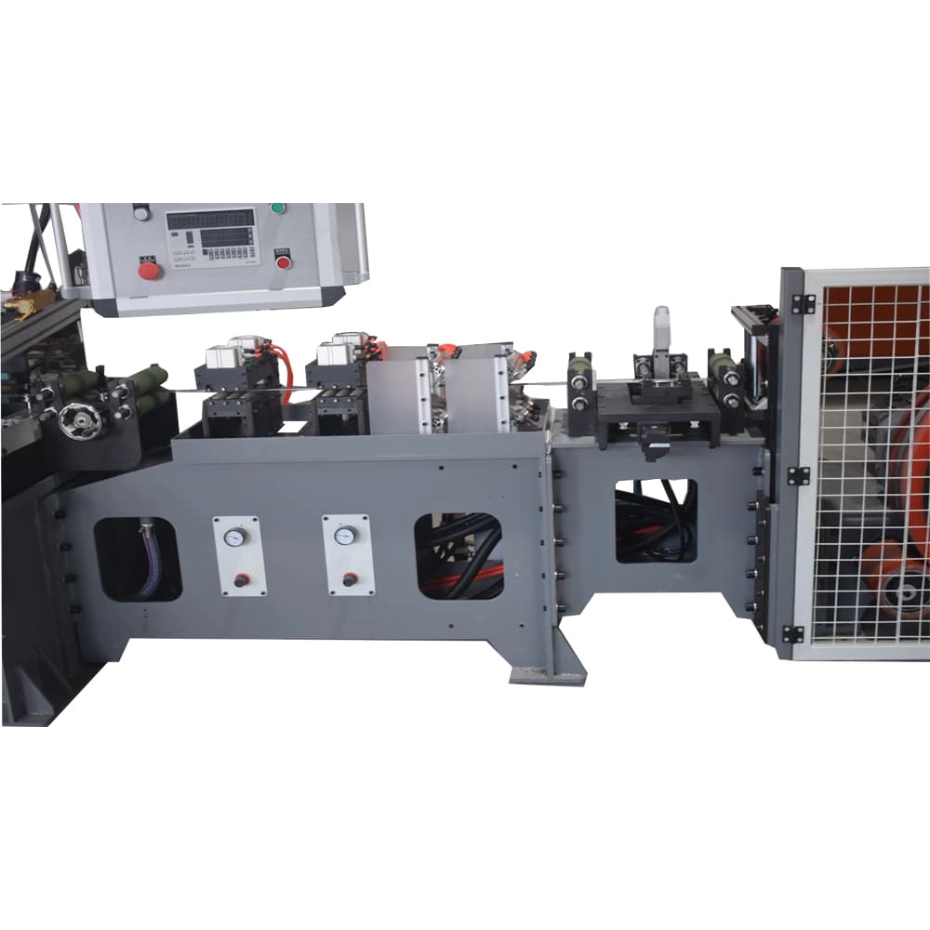

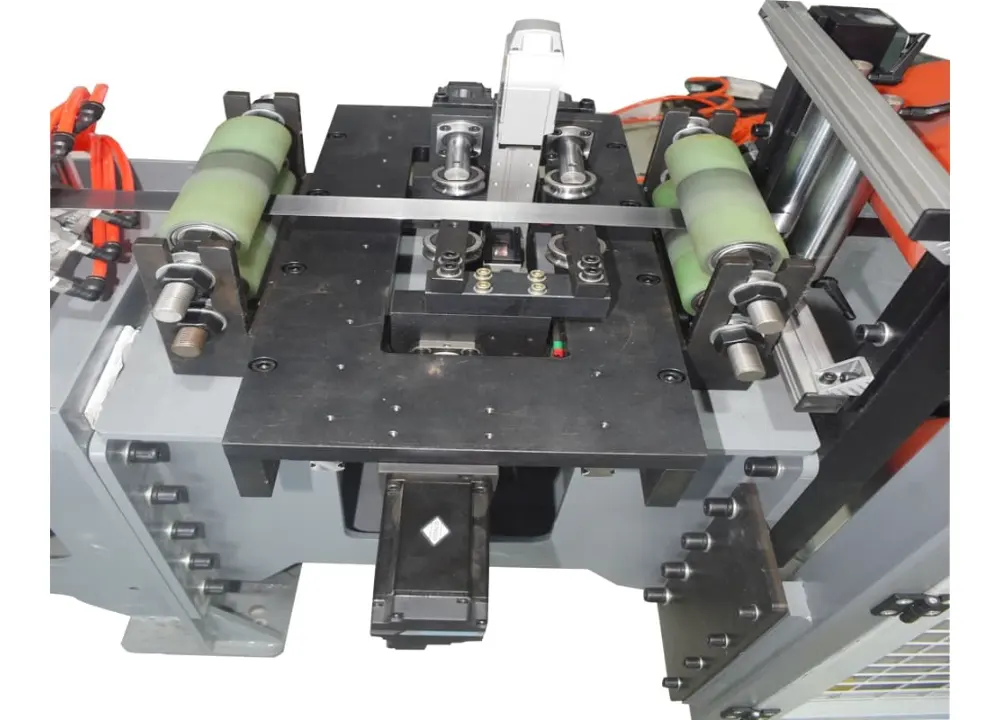

Four Modulars High-end Steel Strip edge trimming line with Optical width monitoring

Four groups of automatic modular Strip edge trimming line with Optical width  monitoring

Technical Parameter

1.Raw material:

1. material: cold rolled strip,carbon steel strip ,Stainless steel strip and so on
2. edge : just be slited from slittng line .

c.Coil Data: ID:400-500 MM, OD:≤φ1200mm. width:10-180 mm. max coil

weight:500kg-1000KG

d.thickness of sheet:0.2-2.0 mm.

2.Finished product parameters:

Strip edge : deburring/chamfering/Round edge ,or any shap edge require from

customer.

Coil Data: ID: ID:400-500 MM, OD:≤φ1200mm. width:10-150 mm. max coil

weight:500kg-1000KG

3.Equipment parameters:

a.Speed:0-150M/min adjustable speed, strip trimming speed depends on material

characteristics and trimming edge effect requirements

b.Power: About 50.5KW

c.Operator: 1 technician and 2-3 workers.d.Height of working: 1000 mm.

e.Space: W13*D1.5*H1.6 M.

f.Voltage:380V/ 3phrase/50 HZ(depend on customer requirment).

g.working height:1000mm

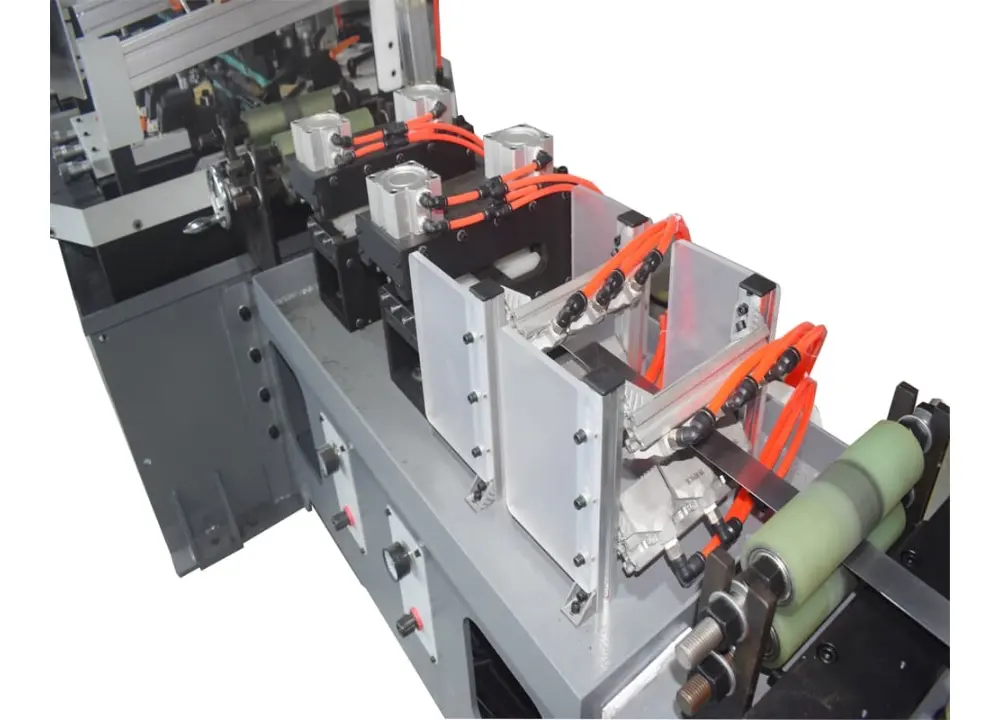

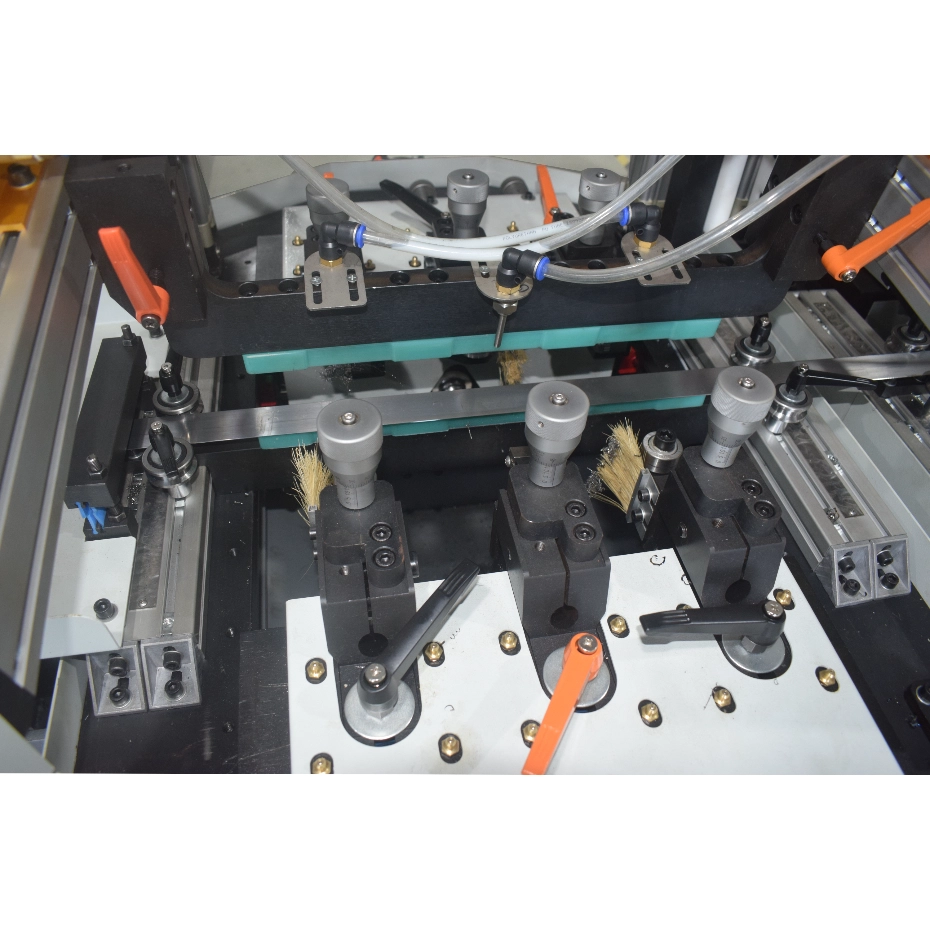

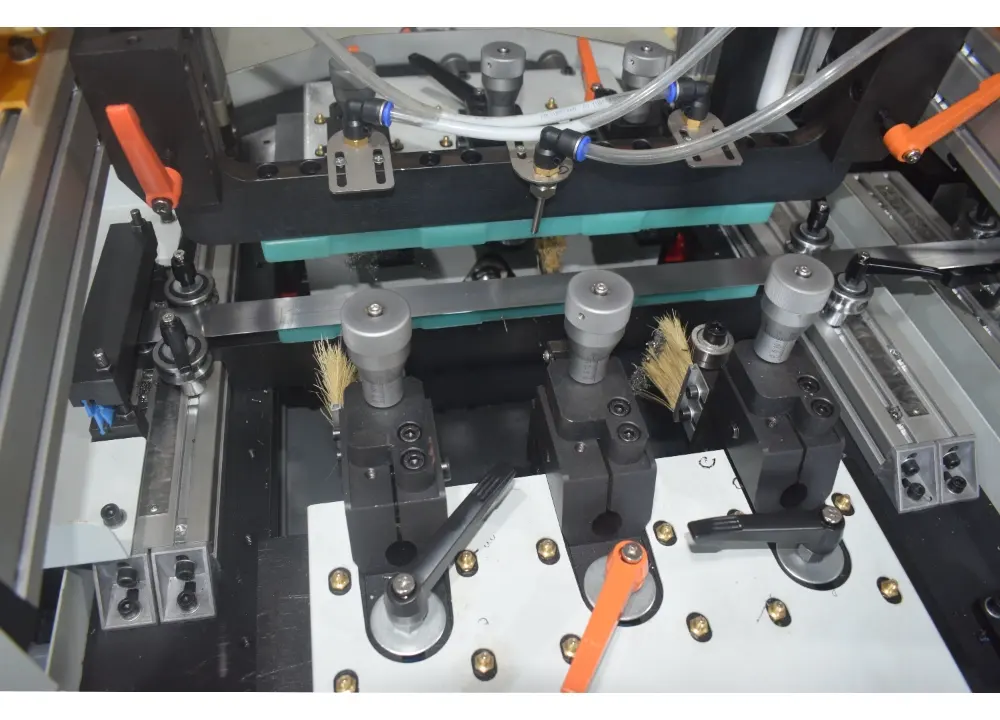

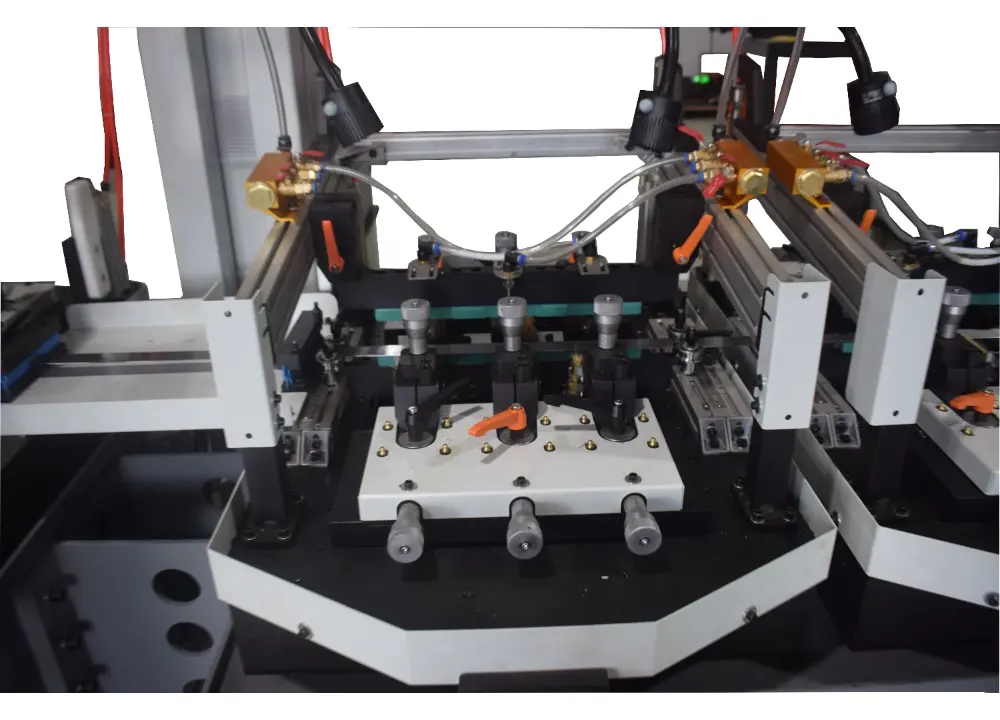

h.Knives for trimming:Each group can be equipped with 3 or 6 trimming tools, up to

24 trimming tools can be transferred

i.Scrap collection:With drawer type scrap collection box

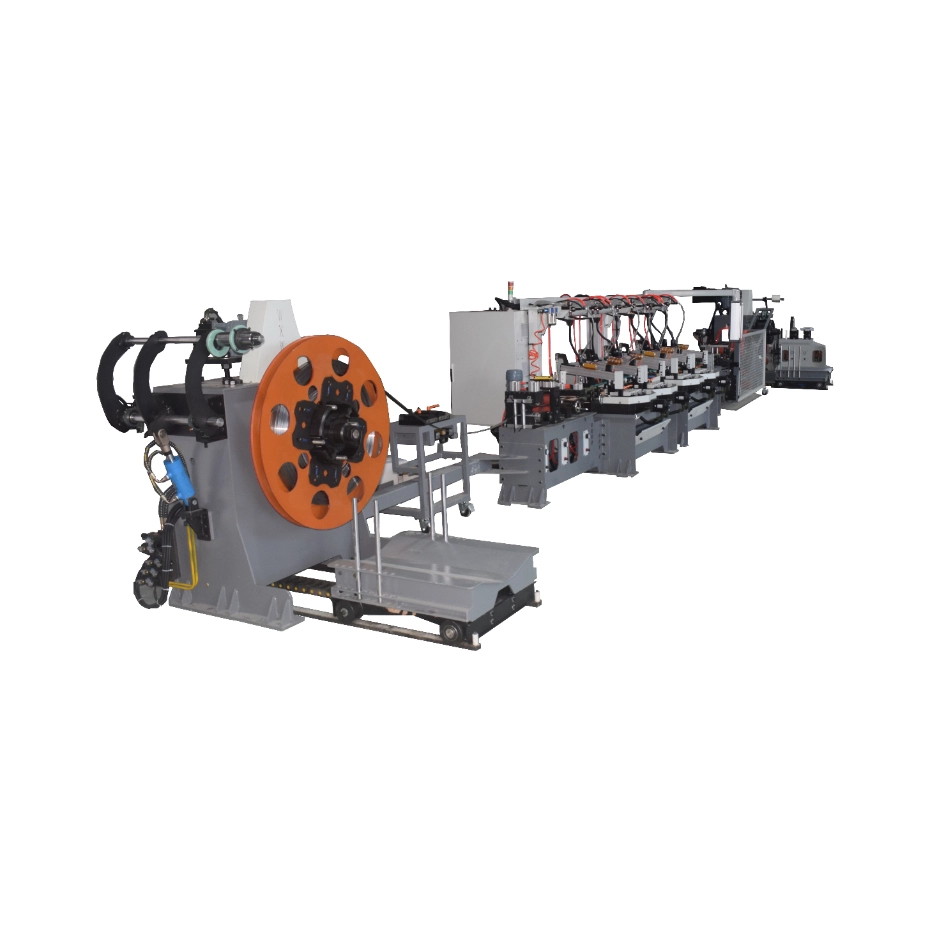

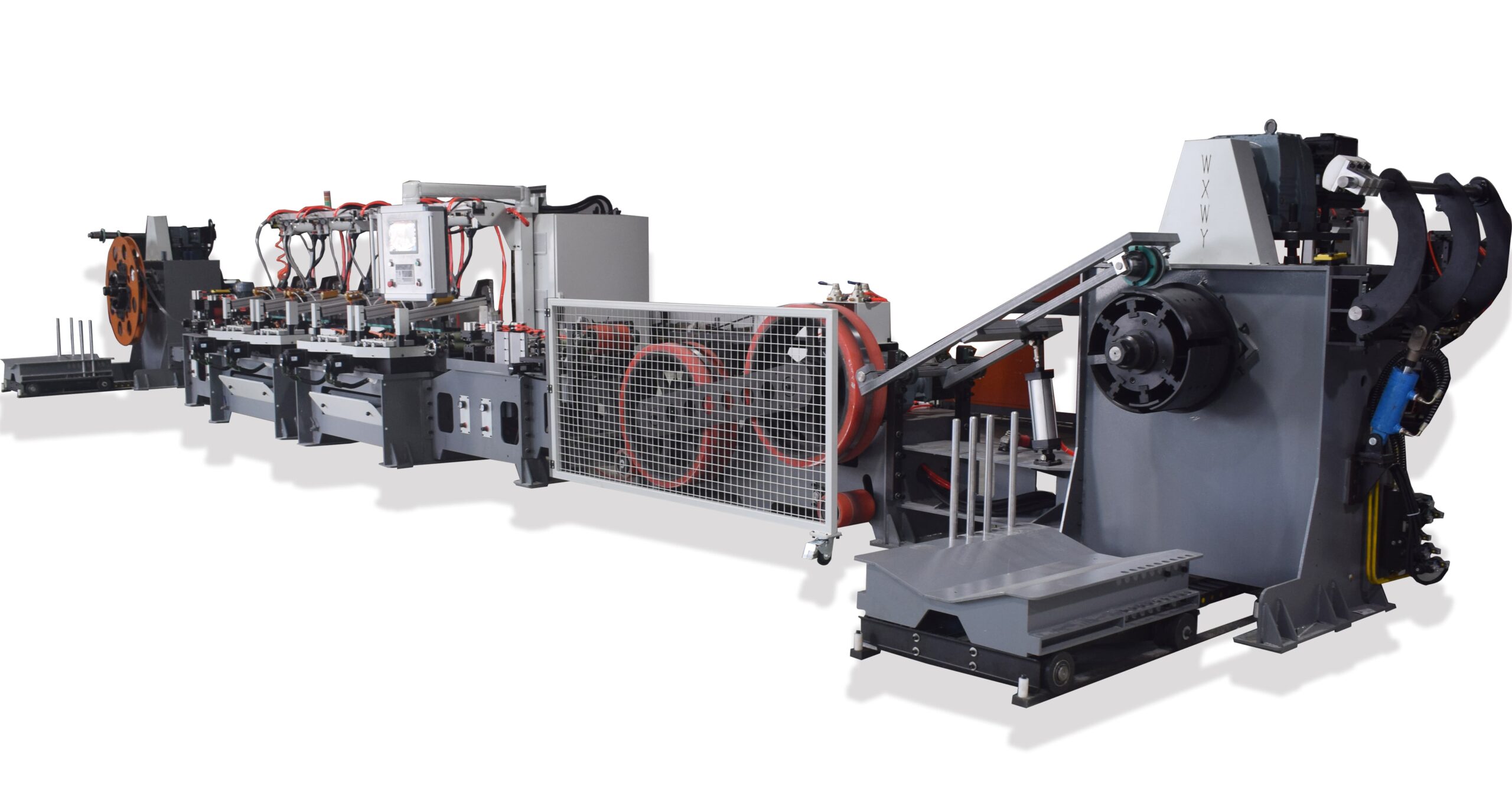

4.Equipment component

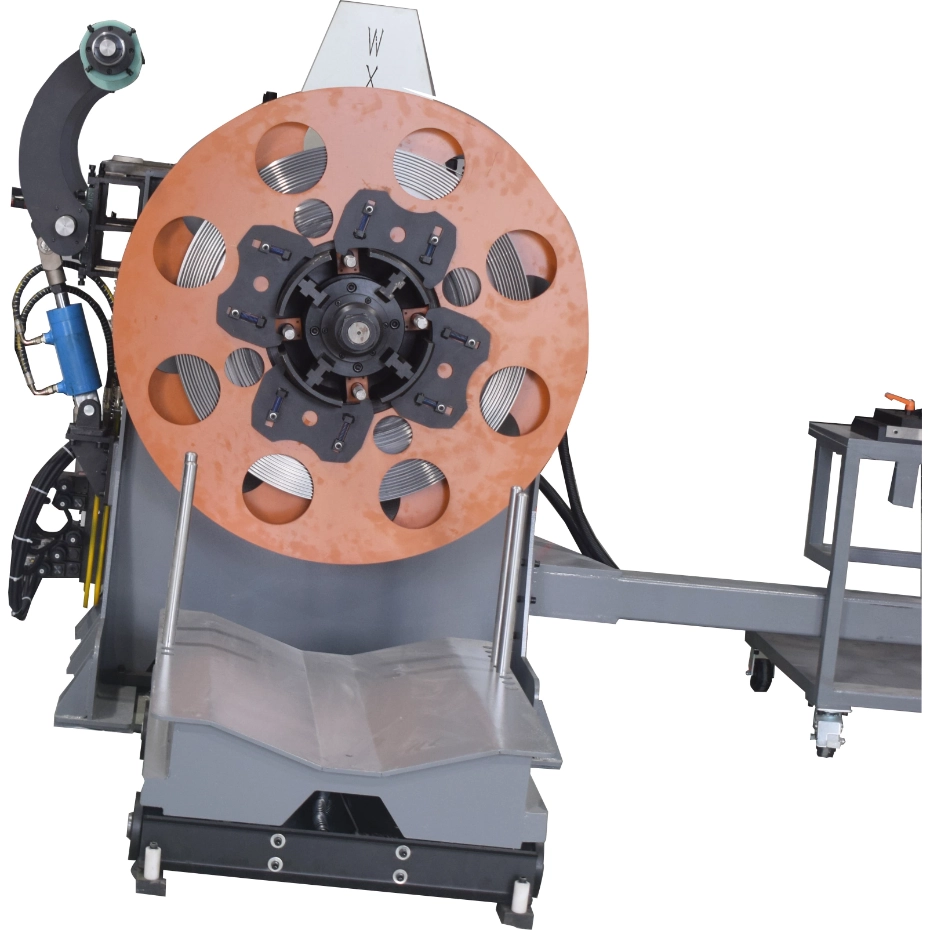

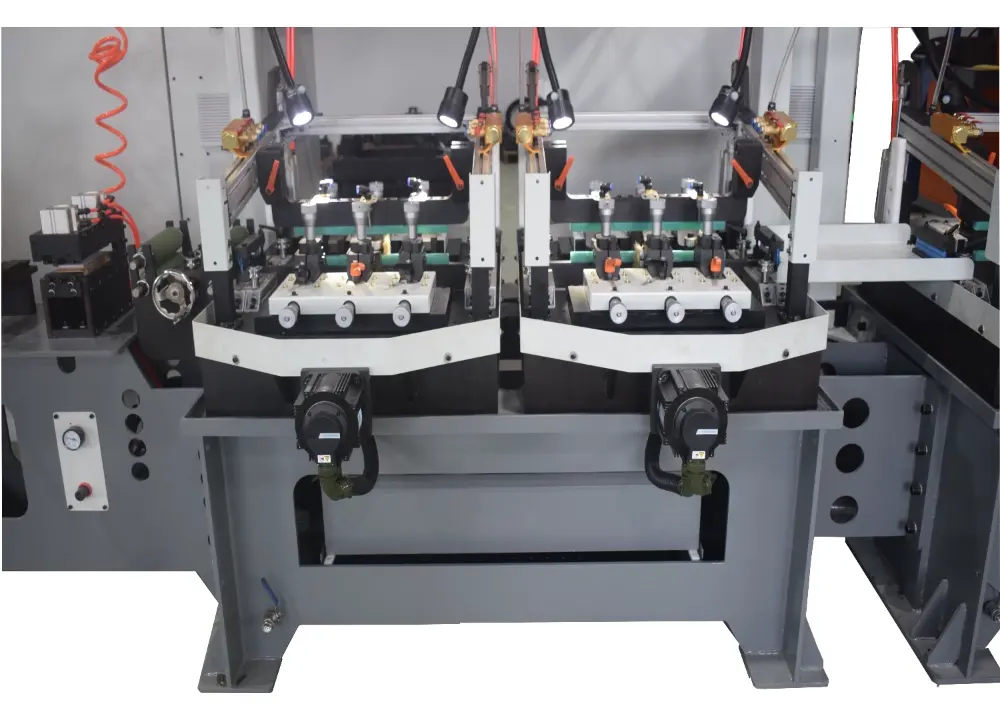

[1] Decoiler [2] loading car [3]9#servo motor

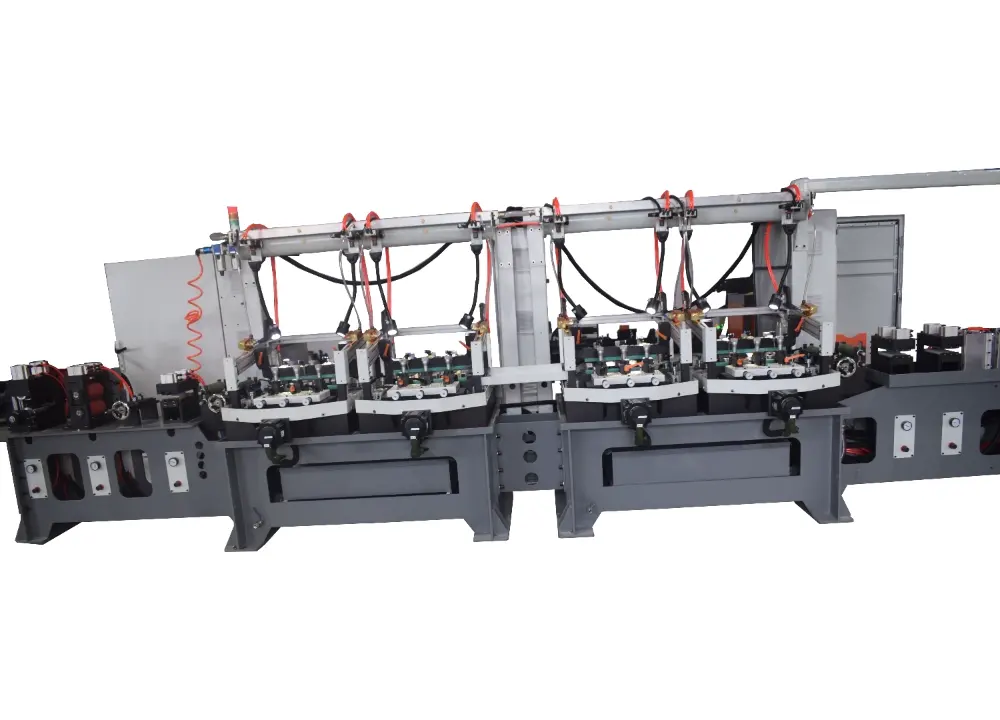

[4]2#Control electric cabinet [5] No.1#-no.4# knives [6]1# Control electric cabinet

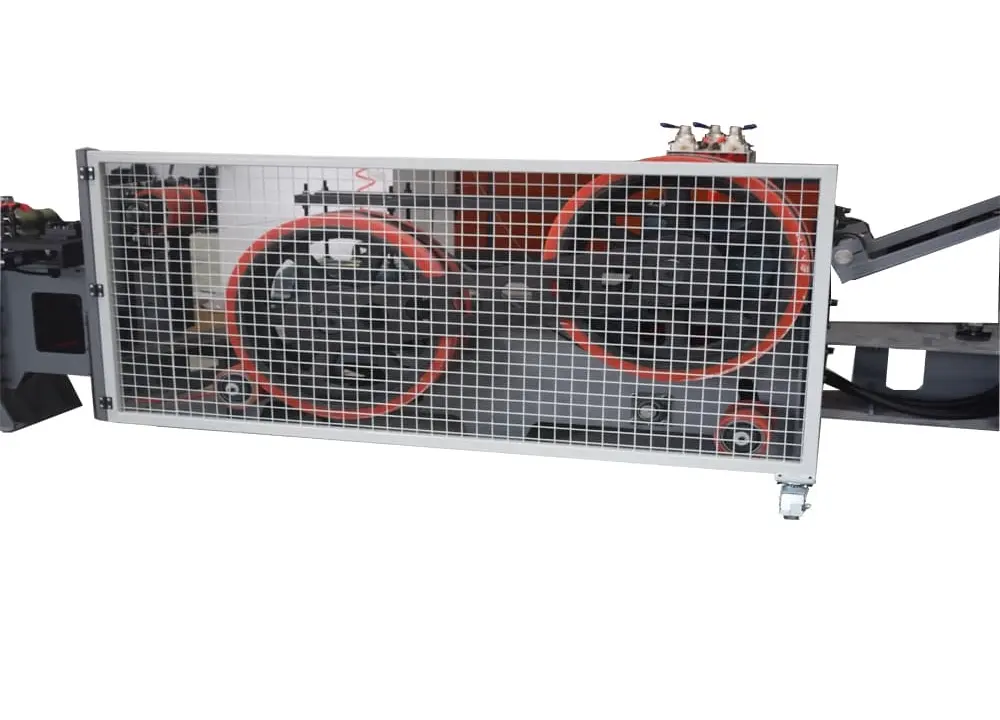

[7] Recoiler [8] S-roll machine [9] unloading car

[10]NO. 5#-NO.8# knives
