Four modular automatic steel strip edge trimming line with oscillating winder
- High-Precision Trimming Performance
- CE & ISO International Standards
- Global On-site Installation Support
- Comprehensive Operator Training Programs
- 2-Year Full Machine Warranty
- Ultimate Oscillating Winding Versatility: Features an 800 type Dynamic Oscillating Winder (1.2T Capacity) with servo-driven traverse. Perfectly supports both standard Pancake coils and traverse Spools (Max spool width up to 400mm).
- Material Capability: Optimized for Stainless Steel, High-Carbon Steel, and Nickel Alloys. Processes strip thickness of 0.2 – 3.0 mm and width of 8 – 30 mm.
- High-Speed Precision: Stepless adjustable running speed up to 150 m/min, governed by an intelligent dual-servo tension S-roller system for extreme stability.
- 4-Module Progressive Trimming: Equipped with 4 customizable tool modules holding up to 24 carbide inserts, delivering perfectly smooth, burr-free round or chamfered edges.
- Smart Blade Protection: Built-in plane and S-shaped pre-leveling/straightening modules specifically designed to prevent blade damage caused by material bending.
- All-in-One Integration: Includes an automatic decoiler (1T), strip cleaning modules, wireless remote threading drive, and strip welding machine for continuous, non-stop
Description
Multi-module Automatic strip edge steel strip edge trimming machine line-with oscillating winder

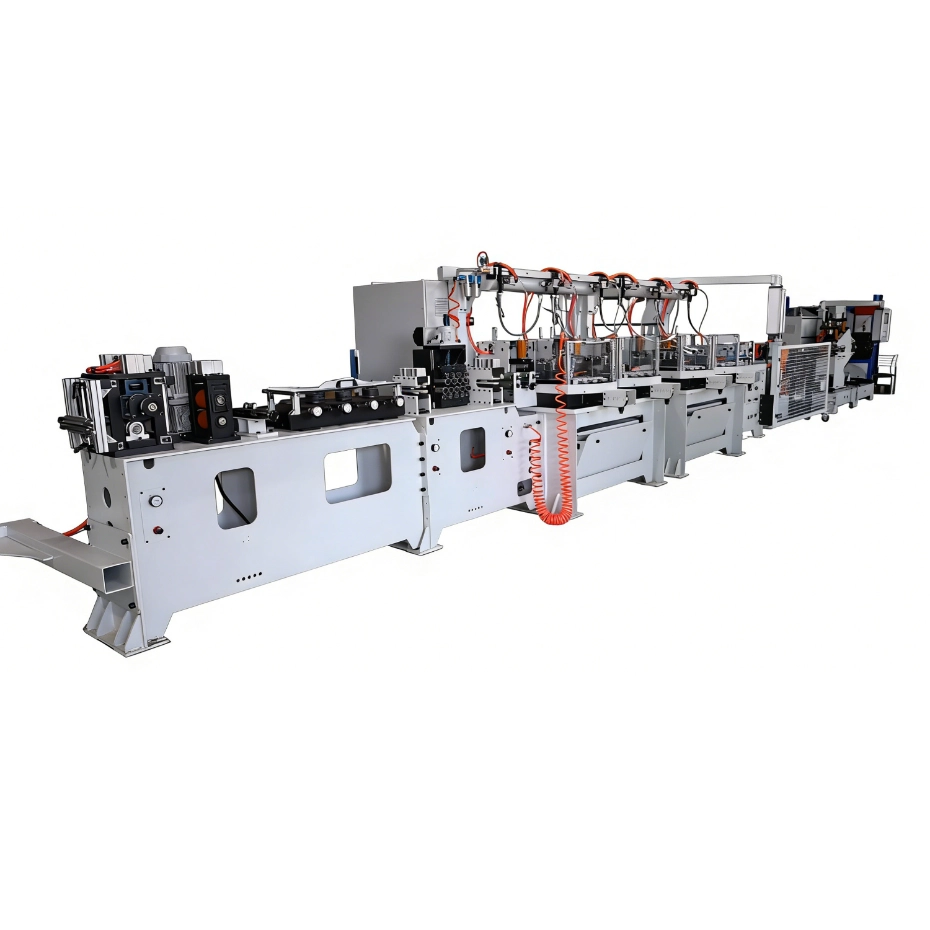

Automatic 4-Module Steel Strip Edge Trimming Line with Oscillating Winder
Upgrade your metal coil processing capabilities with our heavy-duty Automatic Steel Strip Edge Trimming Machine. Custom-engineered with a high-performance 800mm Dynamic Oscillating Winder (Traverse Spooler), this advanced edge conditioning line provides a seamless, continuous solution from decoiling to precision spooling.
Designed for high-tensile materials, it guarantees perfectly smooth, burr-free chamfered edges while arranging the strip onto wide spools perfectly without overlapping or tangling.
🏭 Core Industry Applications
This traverse spooling edge trimmer is the ideal solution for industries requiring long, continuous, and flawlessly conditioned metal strips:
Cable Armoring Industry: Processing steel and aluminum strips for submarine, power, and fiber optic cables to prevent damage to inner insulation.
Flexible Tube & Pipe Manufacturing: Preparing smooth-edged strips for interlocking flexible metal conduits and hoses.
Spring & Fastener Production: Precision edge chamfering for high-carbon spring steel, seat belt retractors, and heavy-duty clamps.
Precision Electronics: Lead frames and continuous connector stampings.
🚀 Key Advantages & Features

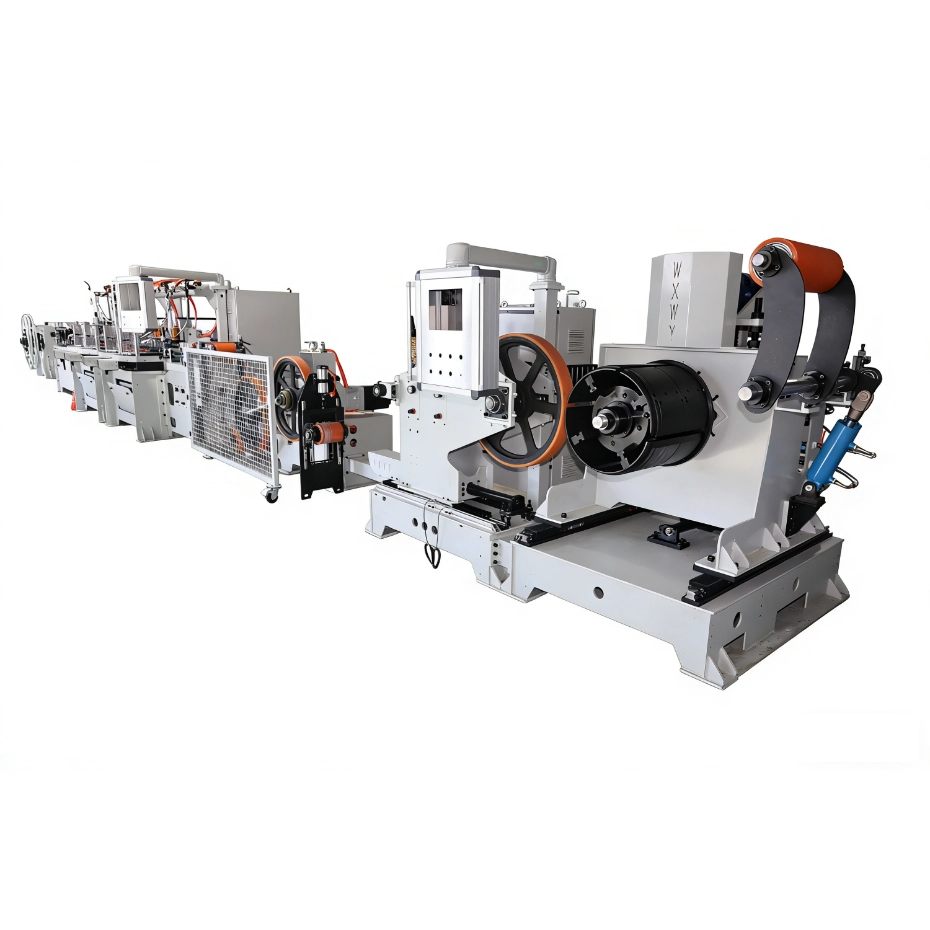

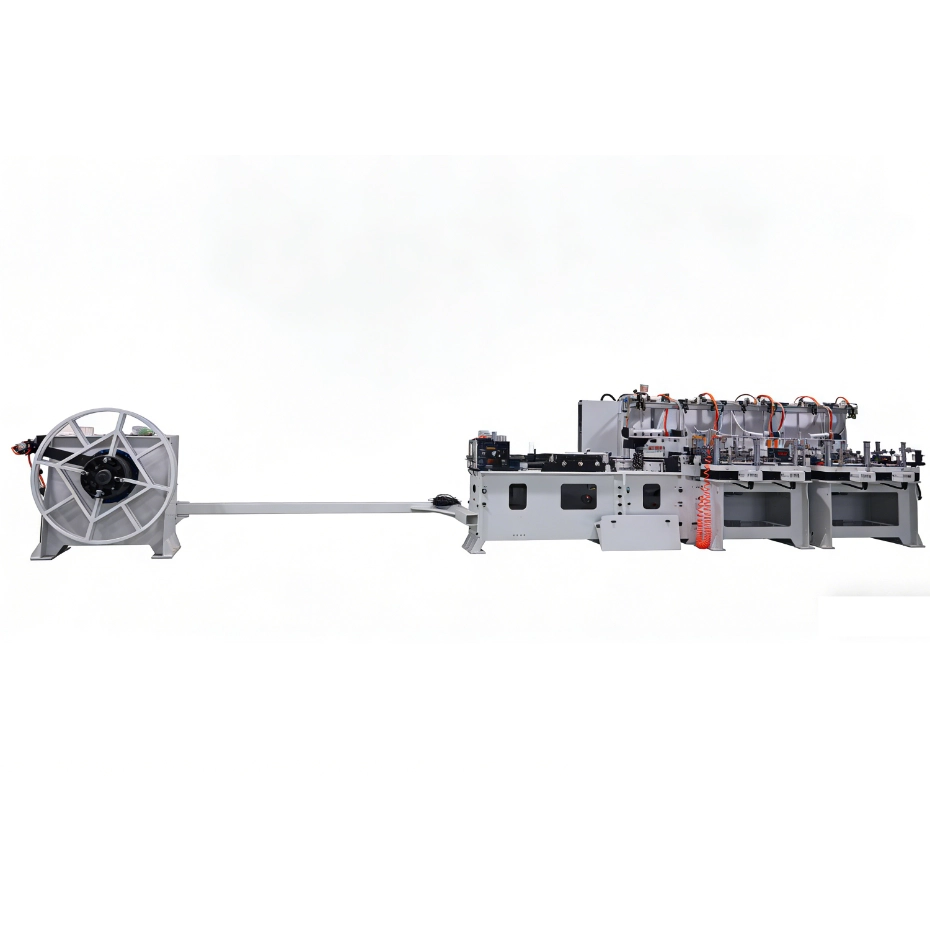

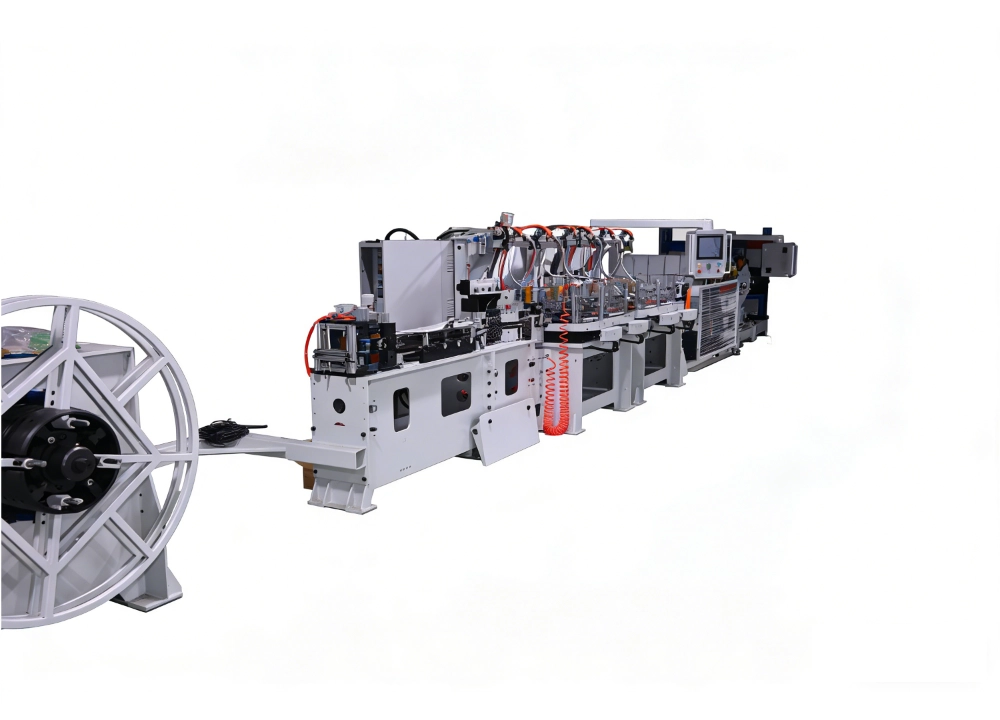

Advanced Oscillating Winding Technology: Features an 800mm servo-driven traverse spooler (Max spool width 400mm, 1.2T capacity). Our proprietary cable arrangement technology tracks linear speed automatically, ensuring perfectly flat spooling without strip stacking or reversing.

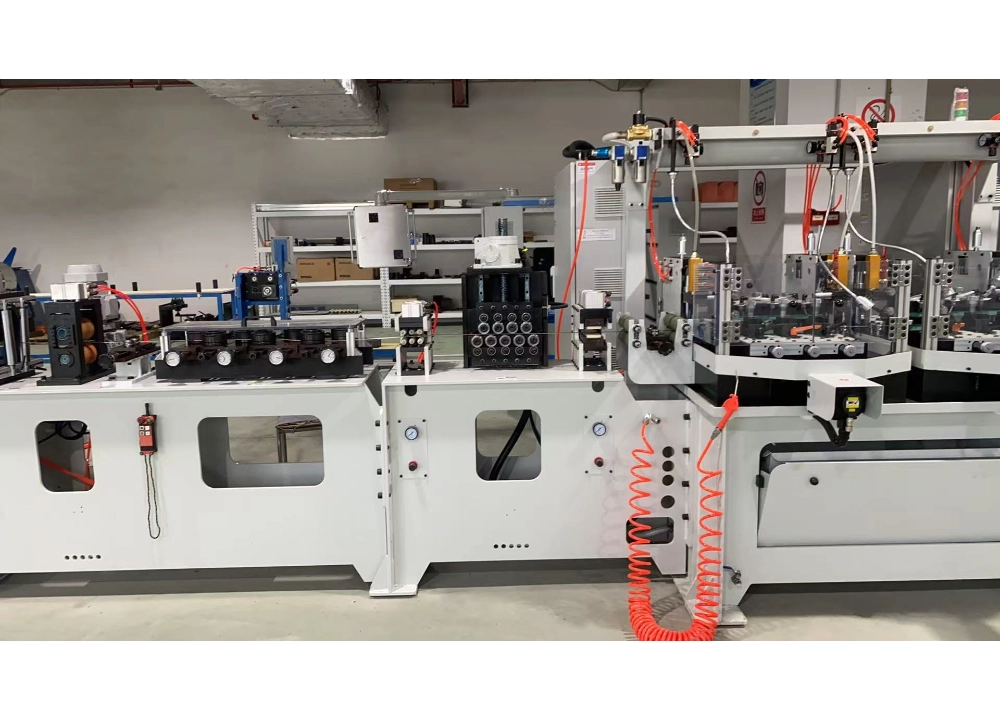

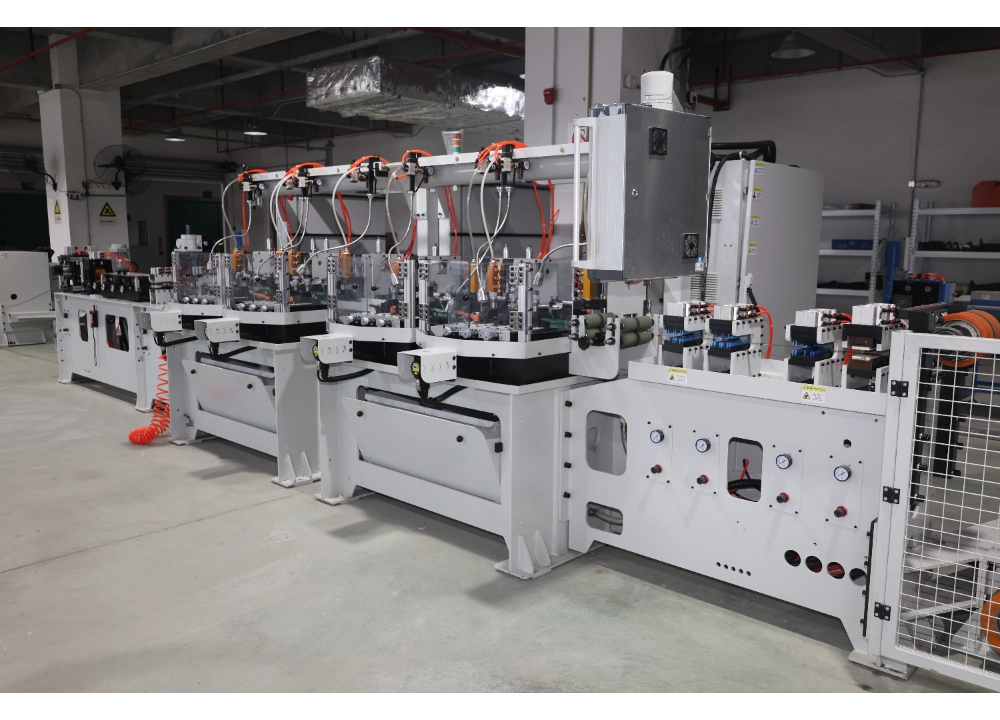

4-Module Progressive Trimming: Equipped with 4 customizable tool holders supporting up to 24 carbide inserts. It progressively deburrs and creates smooth, scratch-free round/chamfered edges.
Intelligent Tension & Straightening System: Incorporates a dual-servo tension S-roller and S-shaped bend guide pre-straightening dies. This prevents blade damage caused by the bending of soft material heads and maintains constant tension at high speeds.

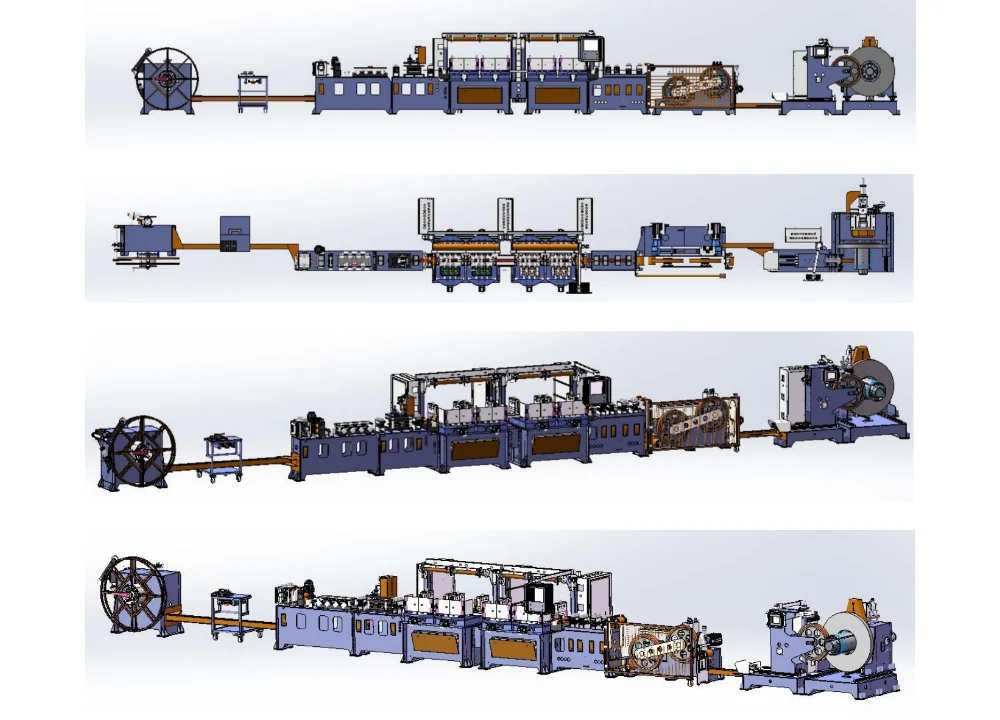

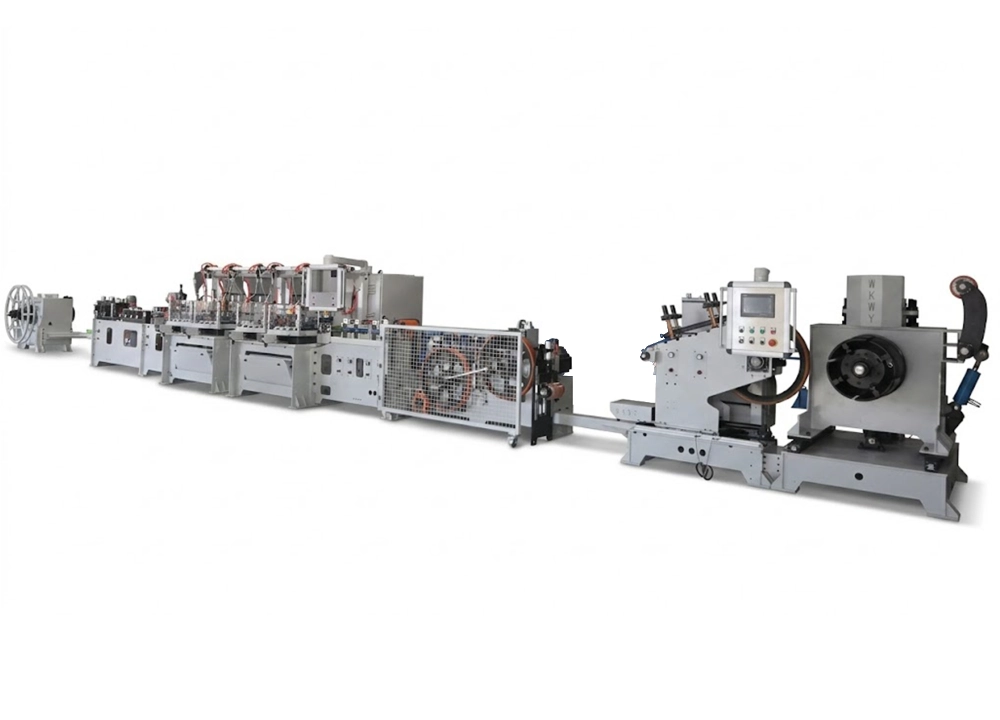

Continuous Non-Stop Operation: Comes complete with a 1T hydraulic decoiler, strip cleaning modules, and an integrated strip welding machine (LSW-30) for seamless coil joining.
High-Speed Performance: Capable of running at adjustable speeds up to 150 m/min, controlled by a reliable Delta PLC and 10-inch HMI touch screen.
⚙️ Quick Technical Specifications
Feature | Specification |
|---|---|
Material Capability | Stainless Steel, High-Carbon Steel, High-Nickel Alloy |
Tensile Strength | 500 – 1600 N/mm² |
Strip Dimensions | Width: 8 – 30 mm | Thickness: 0.2 – 3.0 mm |
Running Speed | 0 – 150 m/min (Stepless, tension-synchronized) |
Winder Type | 800 Dynamic Oscillating Winder (Traverse Spooling) |
Spool Capacity | Max Winding OD: φ800mm | Max Spool Width: 400mm |
Trimming Tools | Up to 24 tools (Carbide blades for flat, deburring, round edge) |
Cooling Method | Air/Liquid dual cooling (360° adjustable nozzle) |
Maximize your production efficiency and edge quality with our state-of-the-art oscillating edge trimming line. [Contact us today] for a tailored technical proposal!
