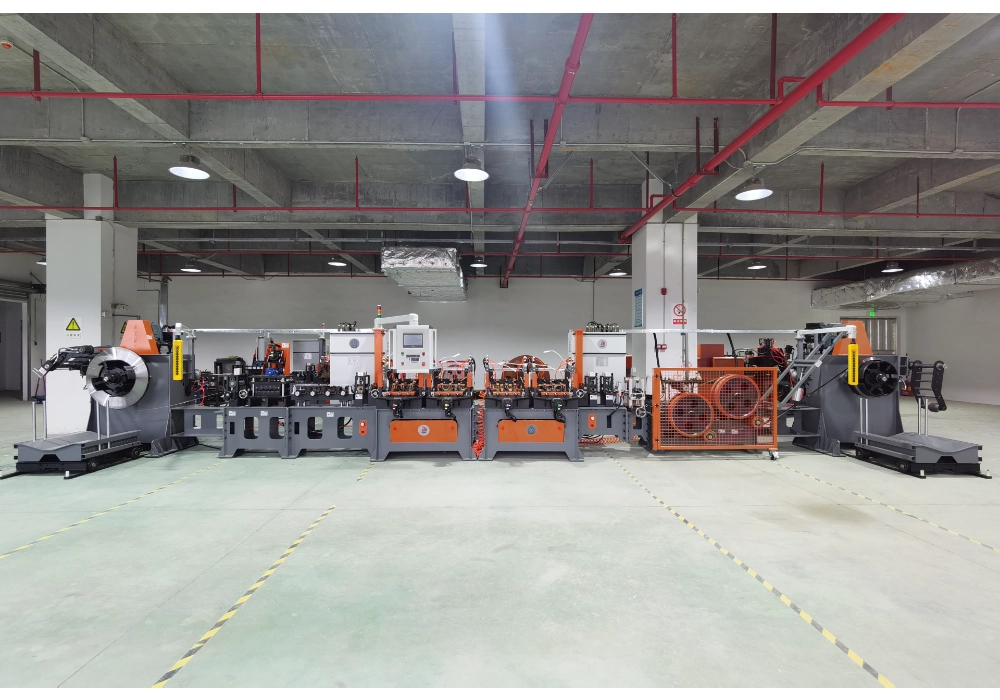

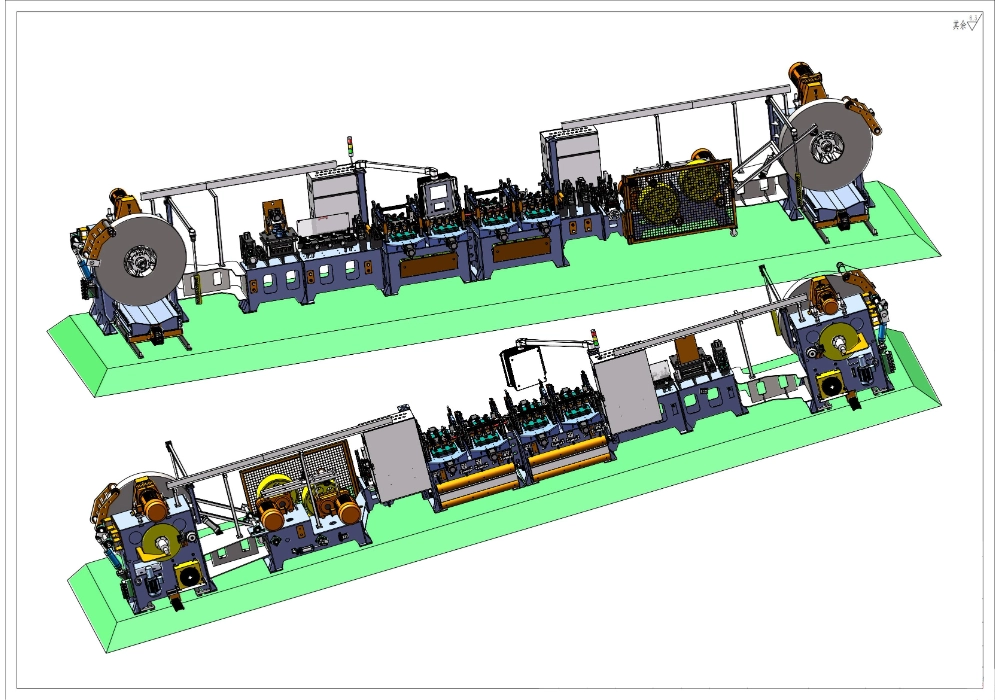

Each part of Machine :

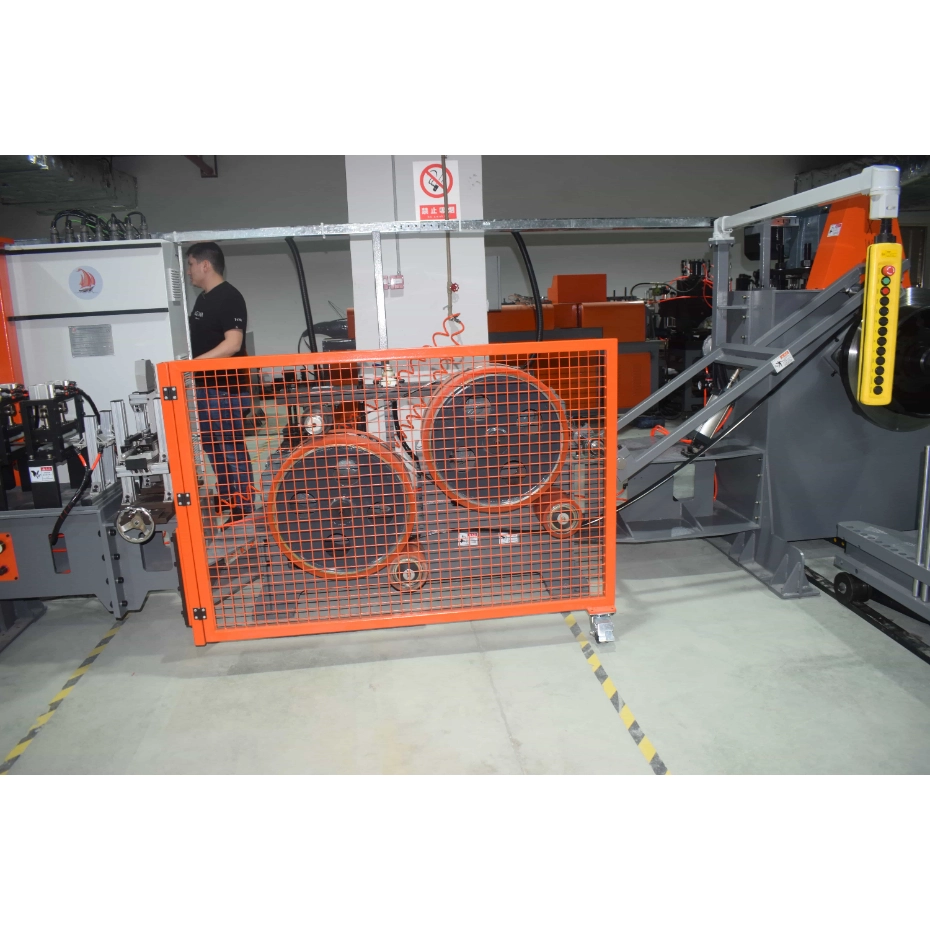

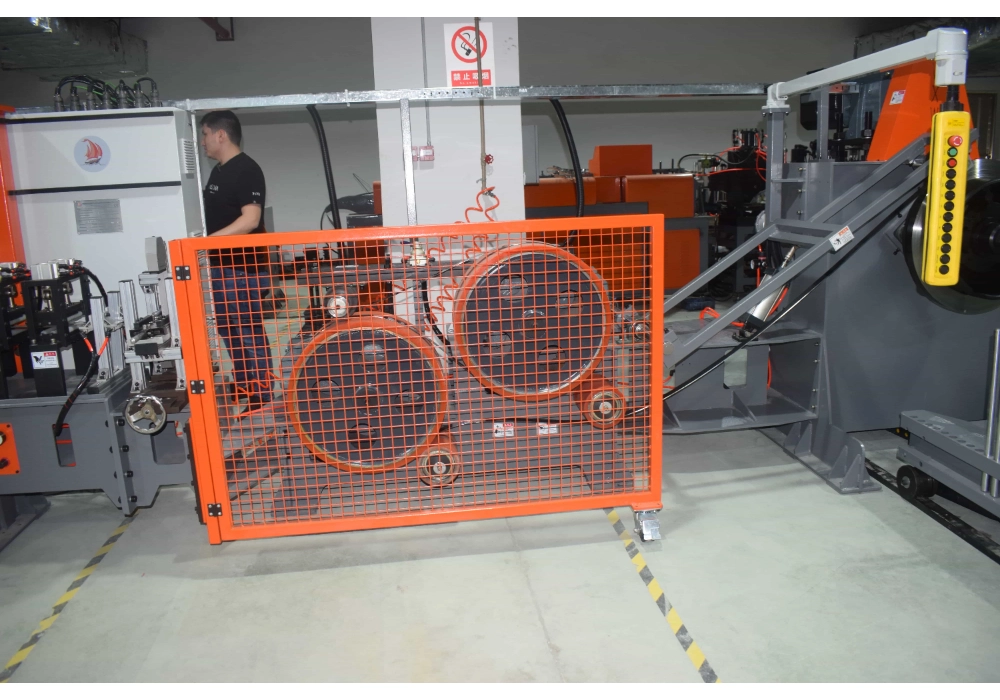

  1. Recoiler Maximum load-bearing 1T, hydraulic joint automatic diameter reduction, hydraulic mobile lifting
  2. S Roller adjustment system with tension for strip

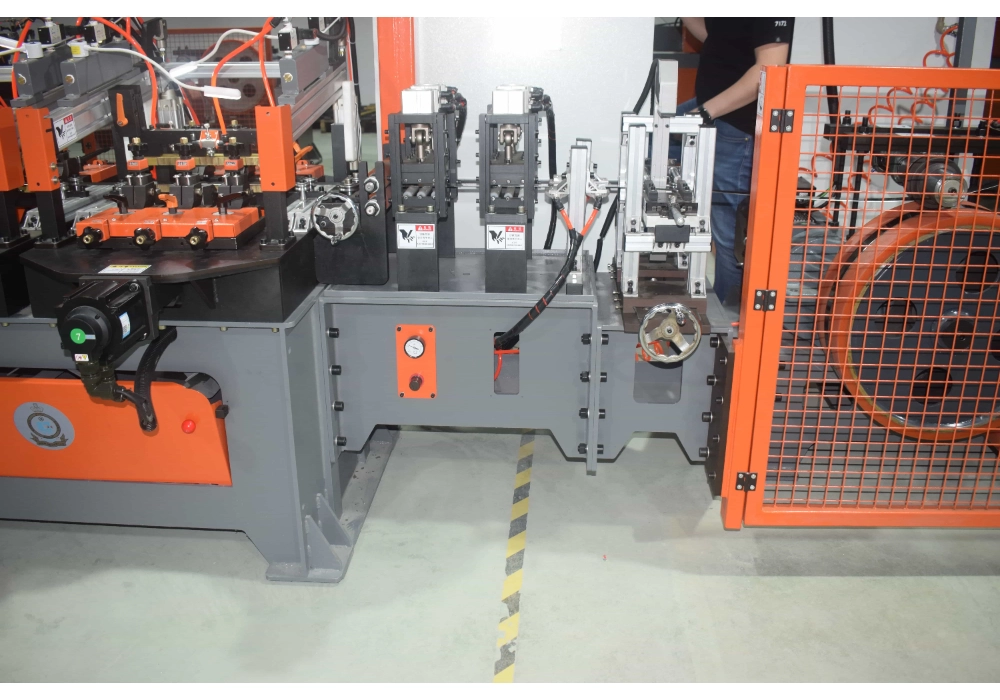

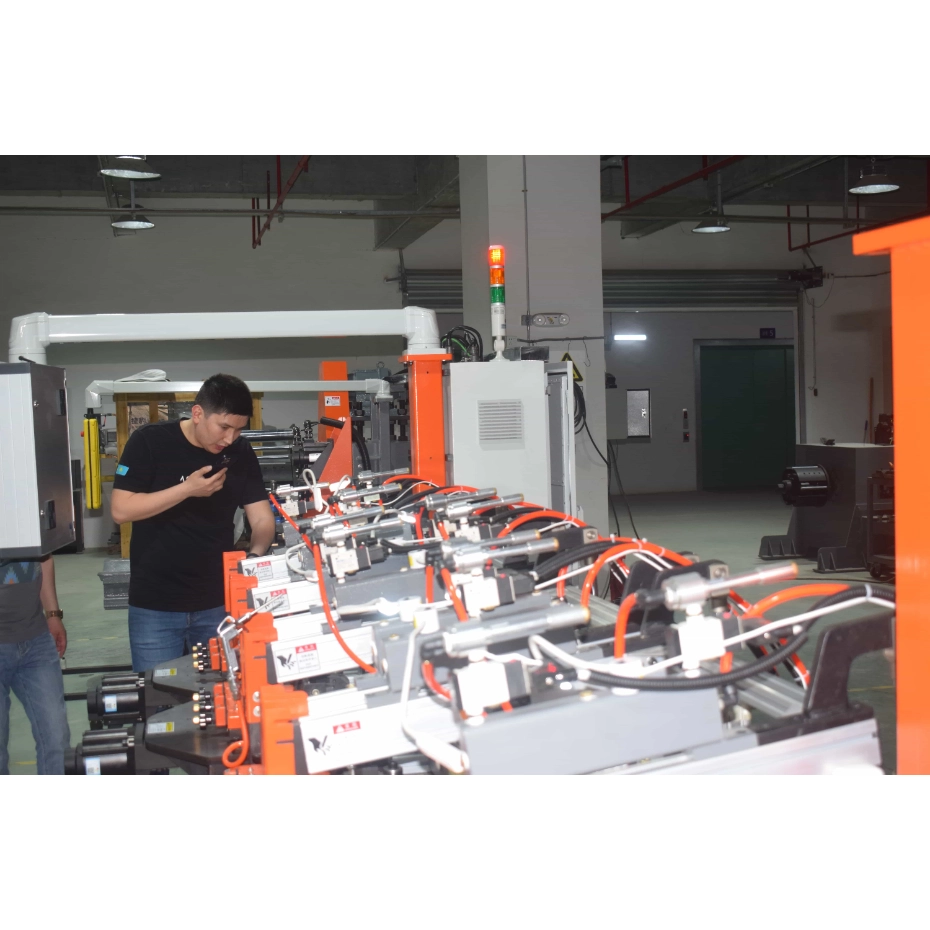

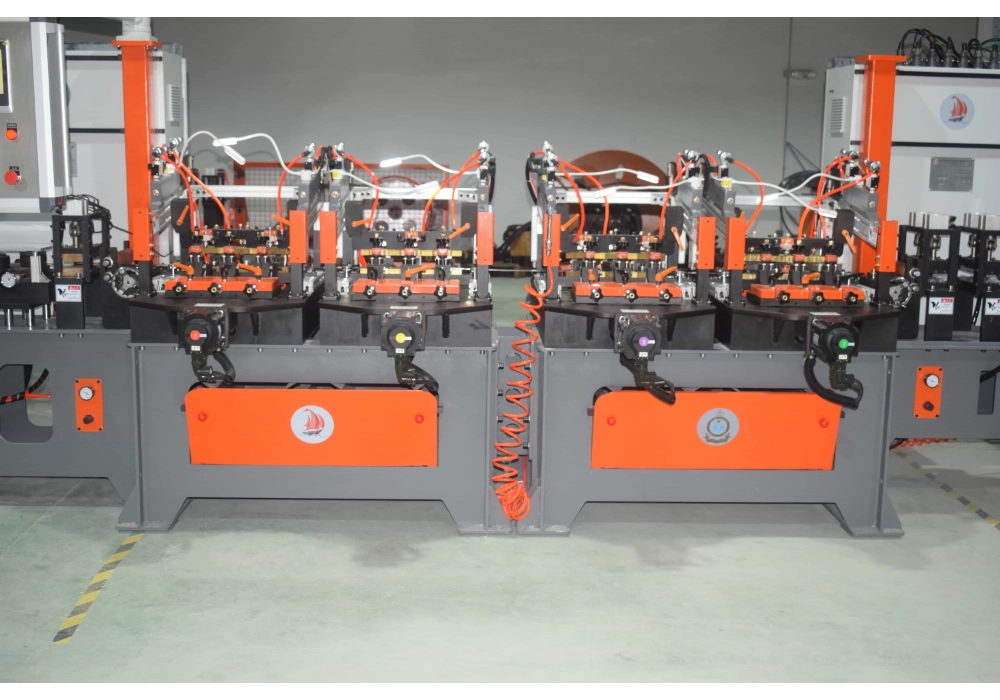

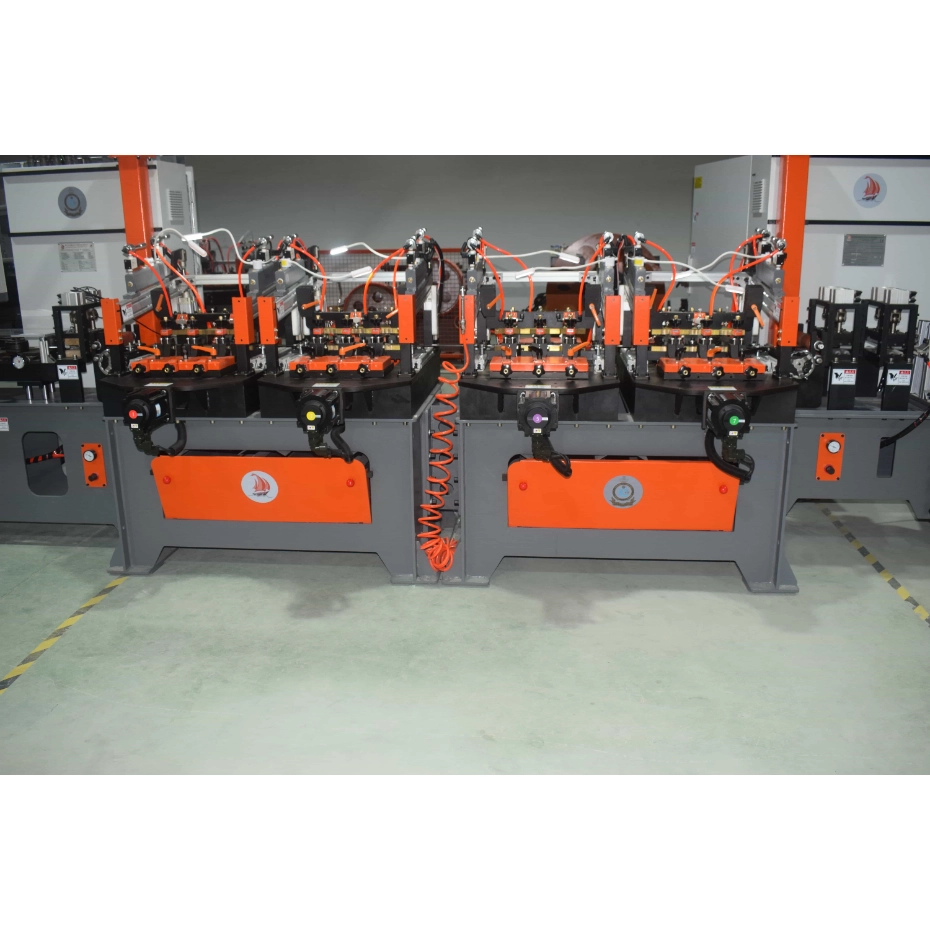

  3. Metal strip  automatic trimming mechanism-4 groups of modular
  4. Wide face Camber straightening module A
  5. Plane-orien leveling module B
  6. Decoiler
  7. AK-4 groups of control systems
  8. width automatic monitoring system
Contact us
Get a Quote

Description

Coil to coil four groups of automatic modular Strip edge trimming line with Optical width monitoring

Equipment manufacturing process and parameters:

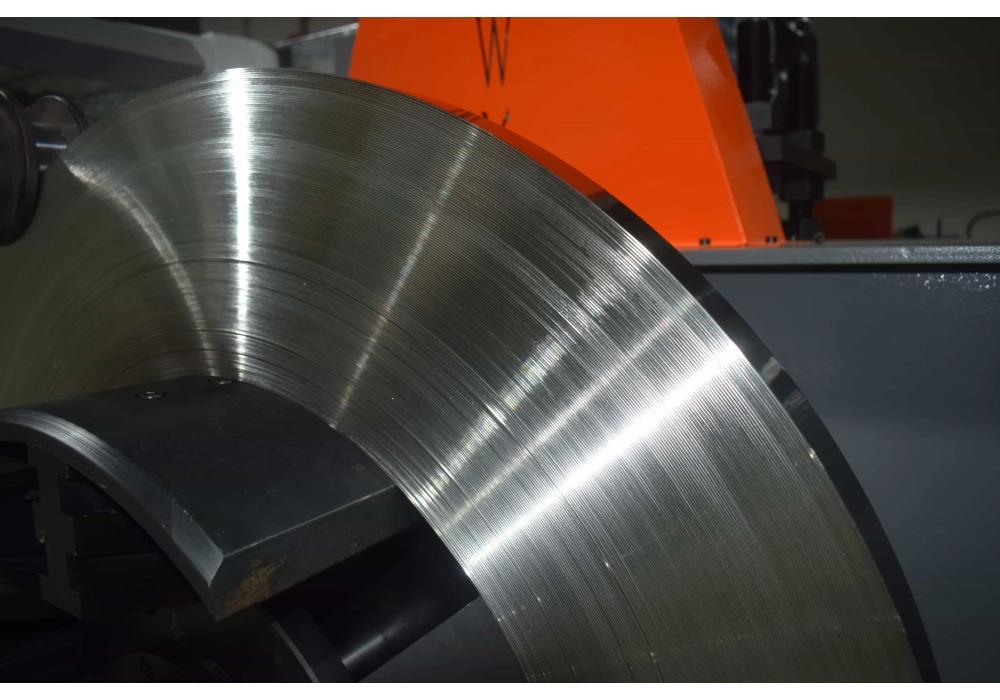

Strip material:Strips of Cold rolled,High-carbon heat-treated strip

              According to DIN EN 10140 – fine

Tensile strength ：    1300-1600N/mm²

Width of strip range ：    15-170mm

Thickness：    0.15-1.5mm

Finished edge : Round edge . the Torelance for trimming edge is :5 C (0.05mm)

Speed for trimming strip ：    0-150m/min adjustable speed, strip trimming speed depends on material characteristics and trimming edge effect requirements

Electricity ：    380V，50Hz，DS

Controller voltage ： 220V，50Hz，WS

The electromagnetic valve ：    24V-GS

Direction ：    from Left to Right.

Occupied area :About W13.0*D1.5*H1.6 M

Working height for trimming strip：    1000mm

Color：     PD5337 Orange  + P-7503 Grey

Cooling type：     Compressed air (gas containing moisture)

Strip size：    Inner Idia: 500mm±20(need customer confirm before production)，Max OD:1000mm

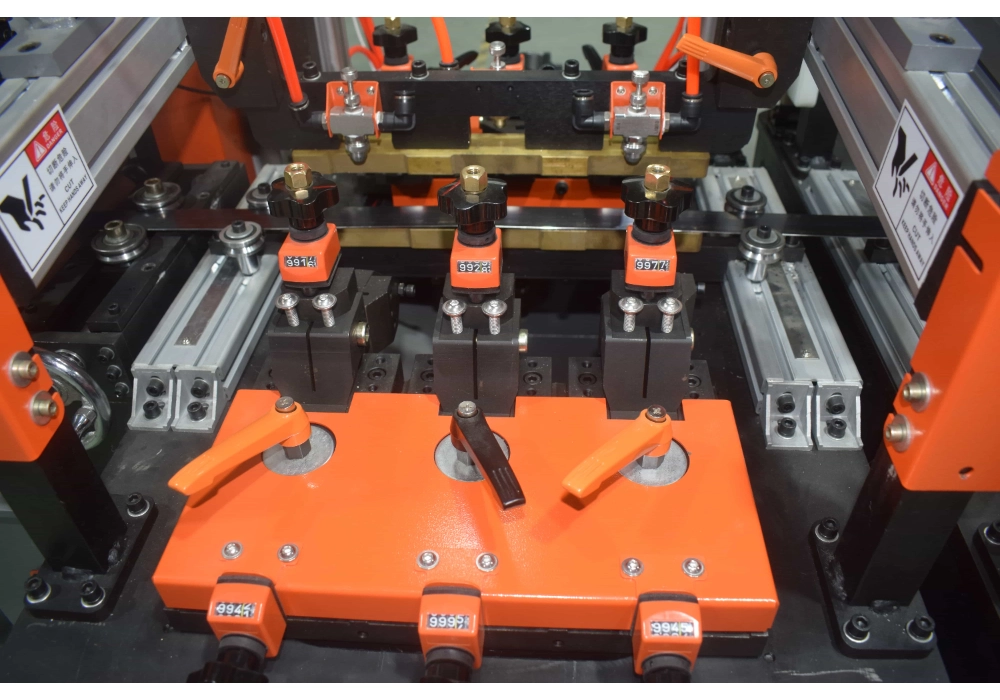

Knives for trimming：Each group can be equipped with 3 or 6 trimming tools, up to 24 trimming tools can be transferred

Scrap collection： With drawer type scrap collection box

Trimming tool(blade): The trimming tool adopts general-purpose carbide blades and round-edged customized carbide blades.

The angle of the edge or slotting is required. The blade seat can be rotated to adjust the angle. The method of trimming or slotting is

               Gradually feed type.

Other matters: According to design and technical needs and market product supply, Supplier can make adjustments to the above-mentioned equipment accessories

Make changes to the brand and structure of the company without prior notice to Customer
