Cut to Length with Polishing and grinding machine for NO.4

Cut to Length with Polishing and grinding machine for NO.4

Place of Origin:Guangdong, China
Condition	:New
Machinery Test Report:Provided
Marketing Type:	Hot Product 2022
Warranty of core components	:1 years
Core Components:	PLC, Bearing, Gearbox, Motor, Gear
Power (kW):	300
Weight (KG):	42000
Key Selling Points:	Long Service Life
Warranty:	1 years
Showroom Location	Turkey, Brazil, Saudi Arabia, Pakistan, India, Russia, Thailand
Brand Name:	Glory
Packaging and delivery
Port	Shenzhen/Nansha
Supply Ability	5 Set/Sets per Month

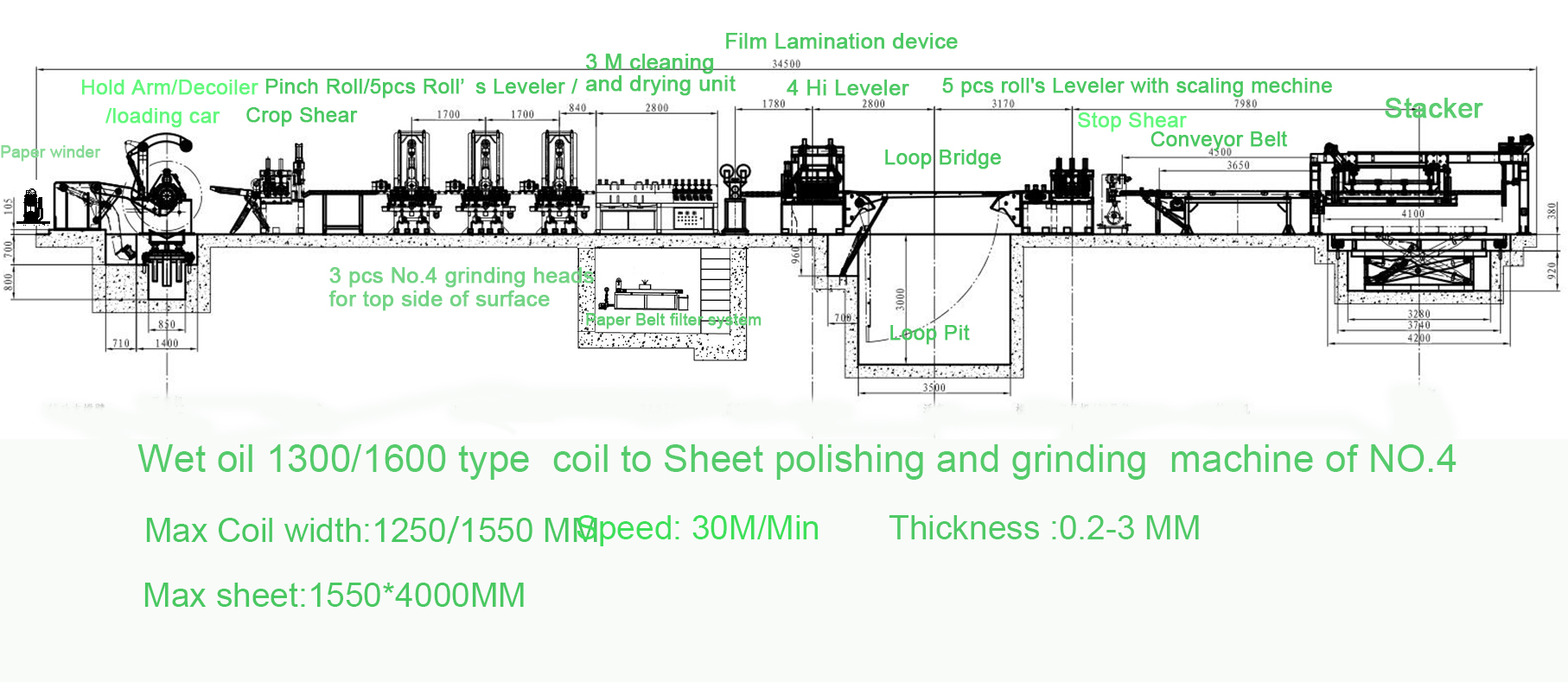

1300 wet oil type Coil to sheet Polishing and grinding machine for NO.4

-_02

Basic specification for Coil to sheet Polishing machine

Thickness for stainless steel	0.3-3 mm( Standard)
Feeding speed	0-40 M/min
Processing type	oil wet type
Cleaning and drying	controlling hot water clean and fan drying
Filter system	use paper belt filte ,so the water can be recyled

Technical Parameter

1.Raw material:

a.Stainless steel coil: 430,439,445,304,316,200 series

b. Coil surface:2B and BA surface

c.Coil Data: ID:490-508 MM, OD:≤φ1600mm. width:200-1250 mm. max coil weight:15 MT

d.thickness of sheet:0.3-3 .0 mm.

2.Finished product parameters:

Surface of stainless steel coil:NO.4 . (dependiing grit of abrasive belt 120#/150#/180# grit)

Sheet : 650-1250-1550*4000/6000mm. the min length of sheet : L200*W650/1250/1550mm

3.Equipment parameters:

a.Speed:0-50M/min b.Power: About 300-400KW (Decoiler +Leveler + stop shear + stacler are 170KW, Polishing machine is 40*4+7.5*3+10+25+=145KW), c.Operator: 1 technician and 2-3 workers.d.Height of working: 1000 mm. e.Space: W30-34*D6 M. f.Voltage:380V/ 3phrase/50 HZ(depend on customer requirment). g.Grinding Type:Wet oil type .h.PLC/HMI:Siemens

4.Equipment component

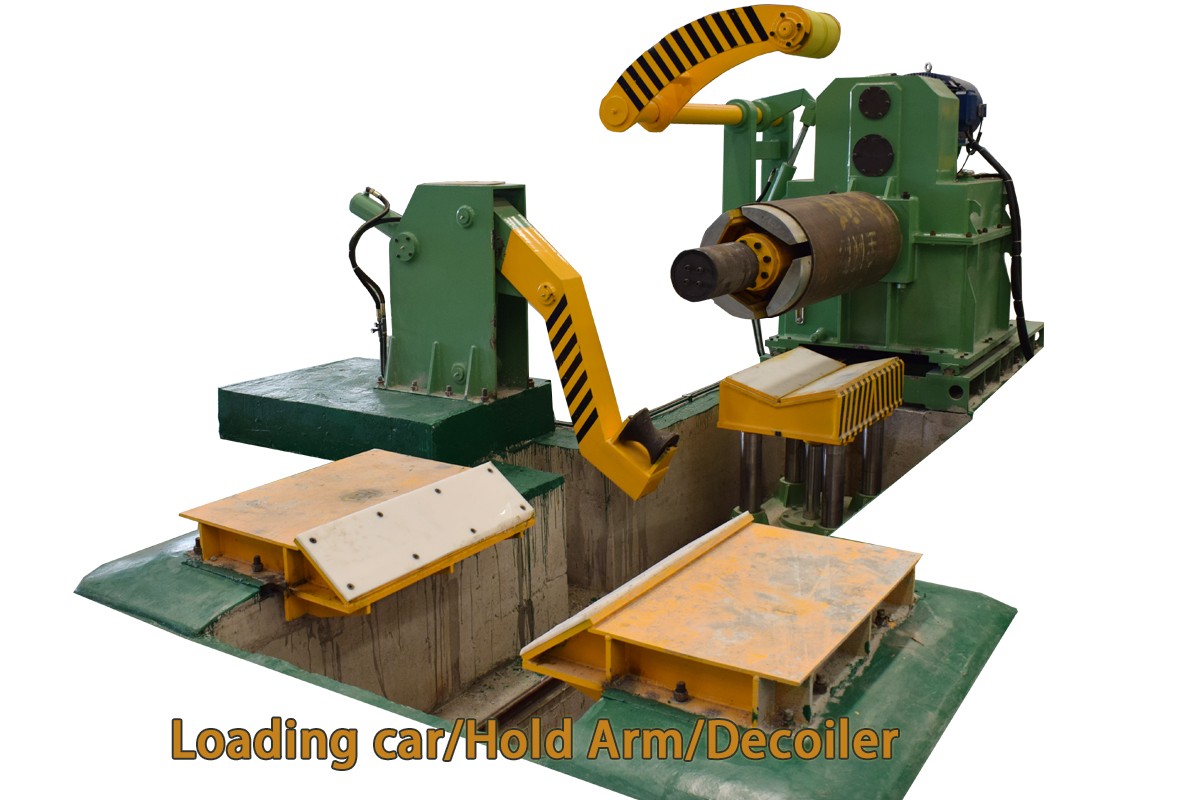

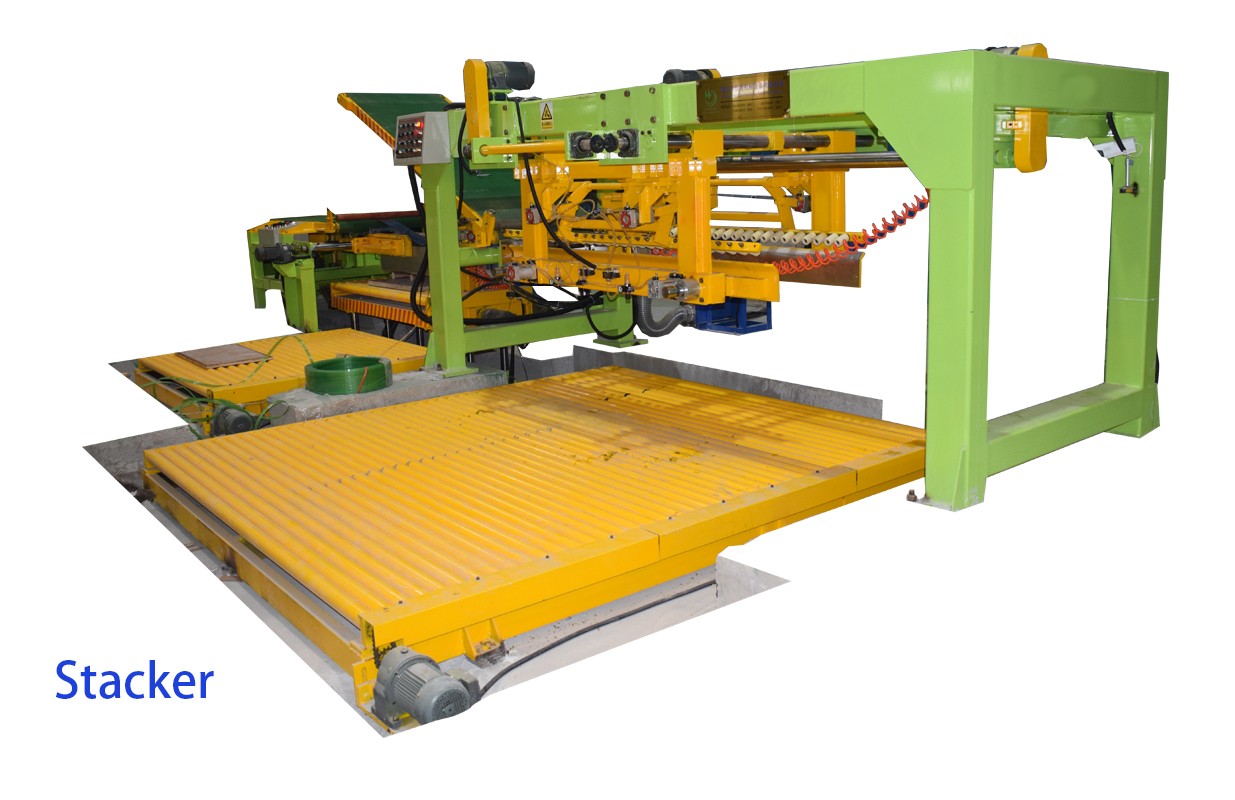

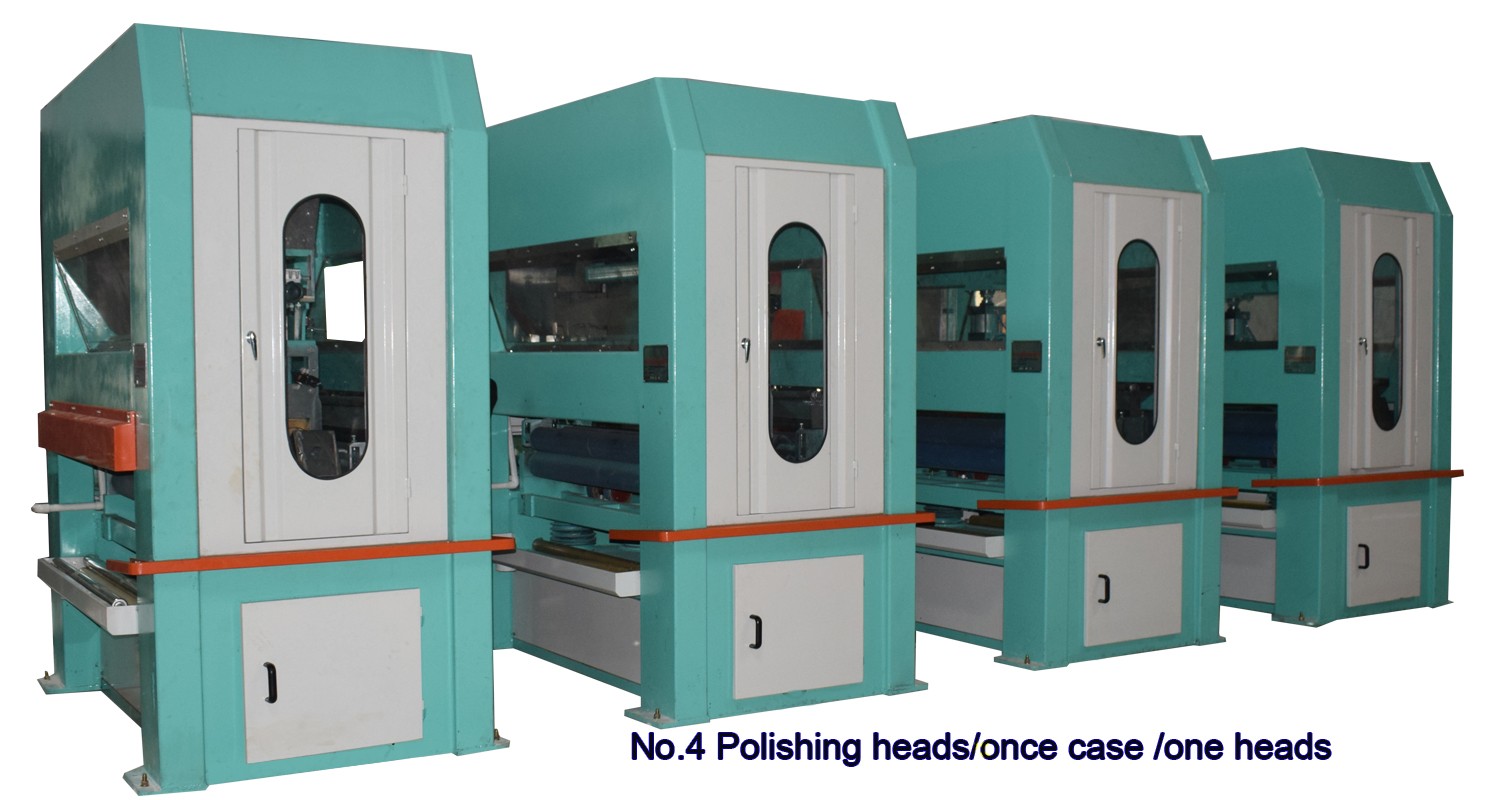

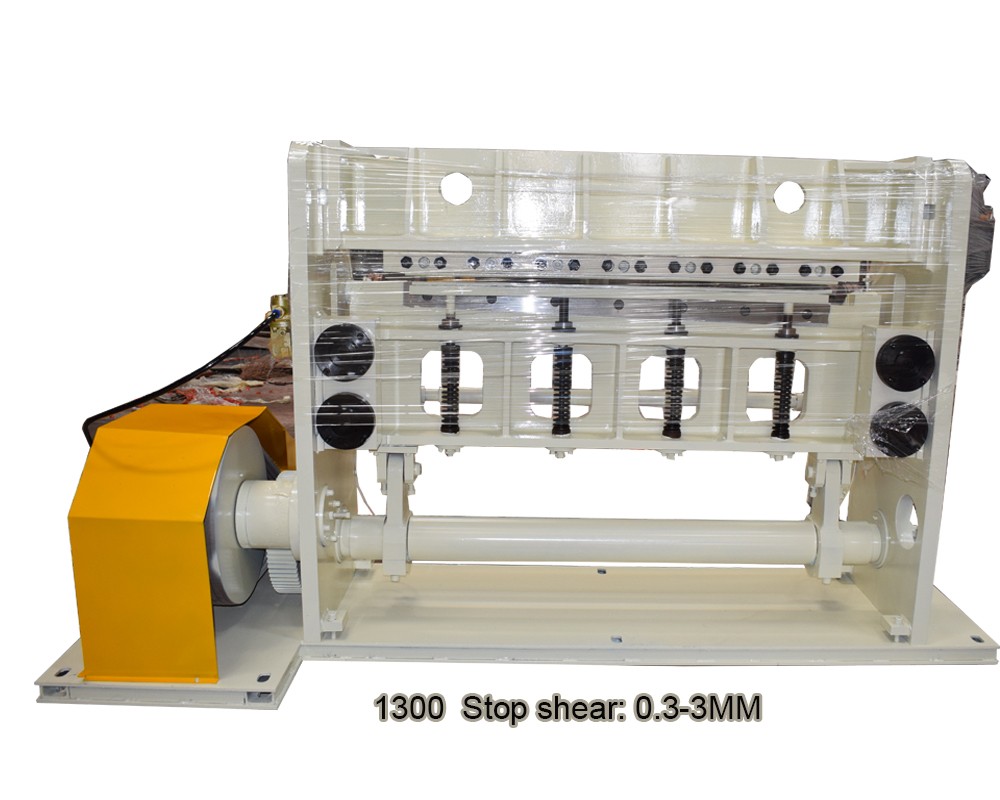

1..Decoiler +loading car /2.4HI/6hi leveler / 3.4 case for No.4 Polishing heads; /4. one case of 4 brushing heads /5.one case of 4 hairline heads/6.Clean and drying Unit/7. Platform for inspection/8. Laminating machine /9. side guider /10. Stop shear /11.stacker/12.Paper filter Filter System/13.Simens PLC with control table System/14.Hydraulic System

Direction:From to (The operator faces the machine , feeding coil from)

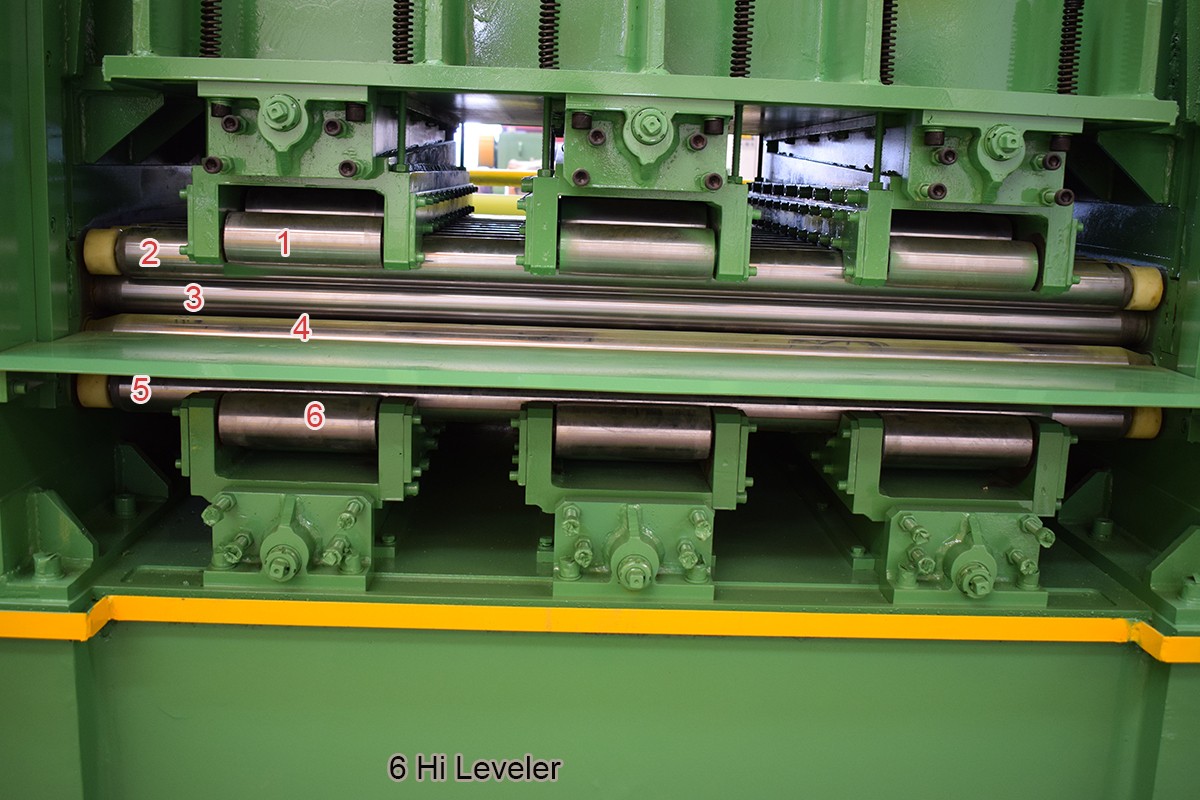

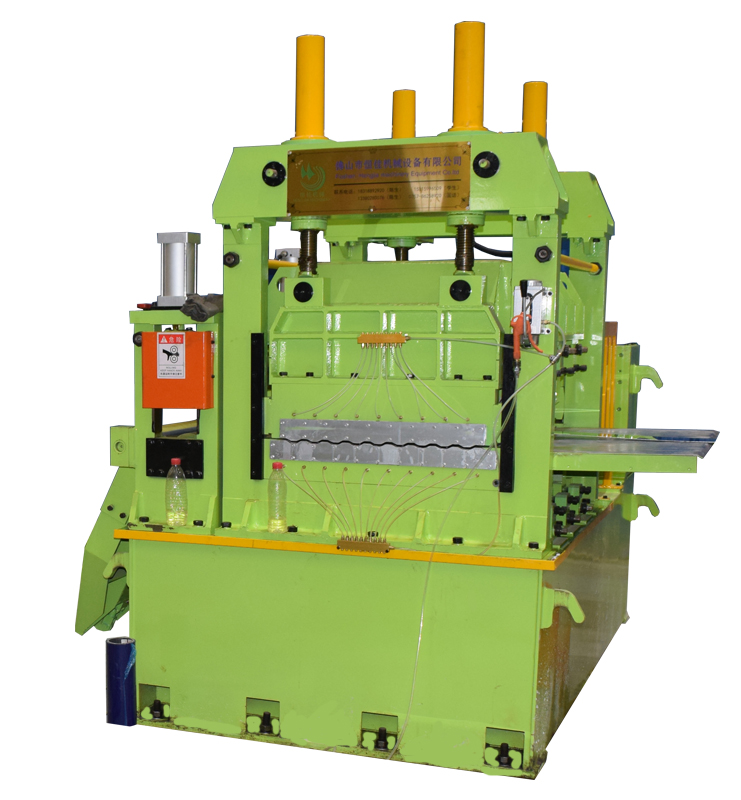

6hi leveler.jpg

-_09 -_10 -_11 -_12 -_13

Q1: What kind of machine do you have ?

A1: We three type different machine line and accept customize

a. coil to coil wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface

b. Sheet to sheet wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface

c. Hi precision slitting line for cold roll for different width .

d. Cut to length (Stop shear and frying shear ) for cold roll

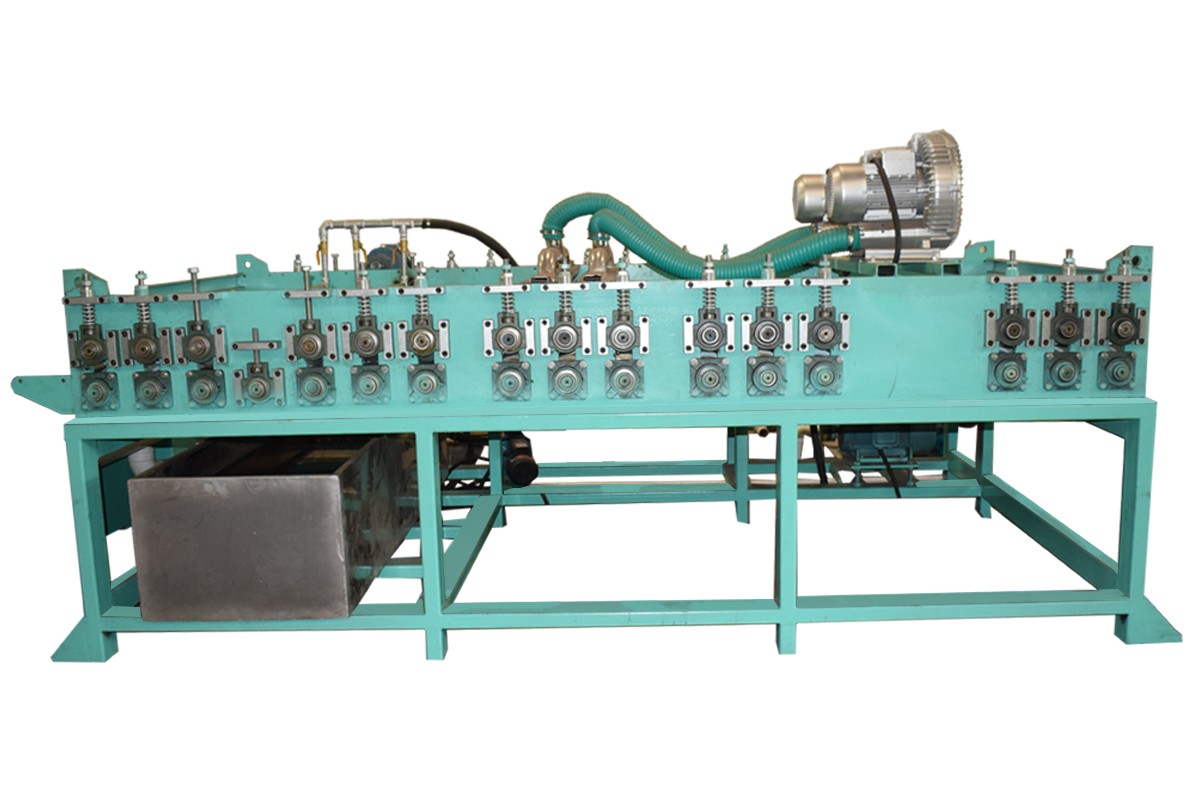

e. The strip edge trimming machine for deburring +Chamfering +round edge for different steel strip(from 5mm-300 mm)

Q2: How to visit your company?

Our company located in Foshan city ,Guangdong province of China , we can pick you up from Guangzhou Baiyun international airport or any other place in Guangdong province .

Q3:How long will you send the proposal and offer?

A3:We need you provide your material data and your requirement for machine,then we can give you offer within 2-3 days.

Q4: What is your payment term and lead time?

A4: We usually accept 30% deposit ( the strip edge trimming machine line need 50%), the balance must be paid before shippment ,or 70% is irrevocable LC at sight ; the lead time : we generally need about 90 days after getting deposit .

Q5: How to install the machine and the engineer fee,and warranty?

A5: We will send one or two engineer to install the machine in customer plant,the customer need bear the visa fee/flight ticket/accommodation during installation ,and give 80 usd subsidy to engineer; installation and training time : it usually need about 10-25 days with the cooperation from customer ,depend on the size of machine .

Contace person : Mike Chen Mob/Whatsapp:86 15815989367
